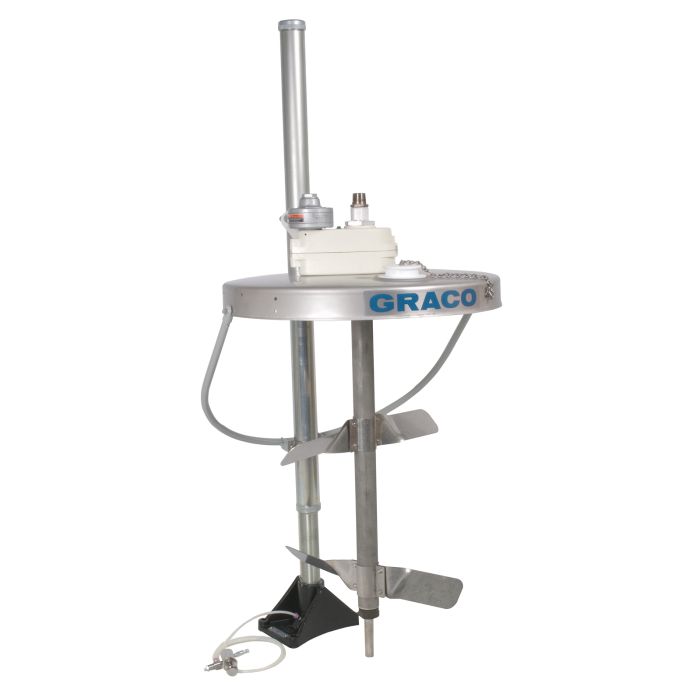

AGITATOR,HD,SST,SIPHON
Heavy Duty Back-Geared Drum Agitator with elevator, drum cover and siphon kit.
Loading Price
Part Number
231414
Heavy duty gearbox mixes high viscosity materials Leak-free and oil-less gearbox prevents material contamination Stainless steel agitator and cover for corrosion resistance and waterborne compatibility Twin paddles thoroughly mix finishing materials Siphon option allows material transfer through agitator shaft Access port for easy sampling and inspection of material during operation Maximum viscosity 3,000 cps
Air Inlet Thread Type | NPT |
---|---|
Air Inlet Size (in) | 1/4 |
Width | 0 |
Maximum Air Inlet Pressure (psi) | 100 |
Maximum Speed (RPM) | 1200 |
For Use With | 55 Gallon (208 Liter) Drum |
Wetted Material | Stainless Steel, AF, Acetal, PTFE, Nylon |
Weight (lb) | 25.8 |
Type | Agitator |
Power Rating (HP) | 0.25 |
Motor Type | Pneumatic - Rotary Vane |
Maximum Working Pressure (psi) | 100 |
Maximum Viscosity (cP) | 3000 |
Long Description | Heavy Duty Back-Geared Drum Agitator with elevator, drum cover and siphon kit, air driven, 1/2 HP, 32 inches (81.25 cm) long |
Length | 0 |
Height | 0 |
