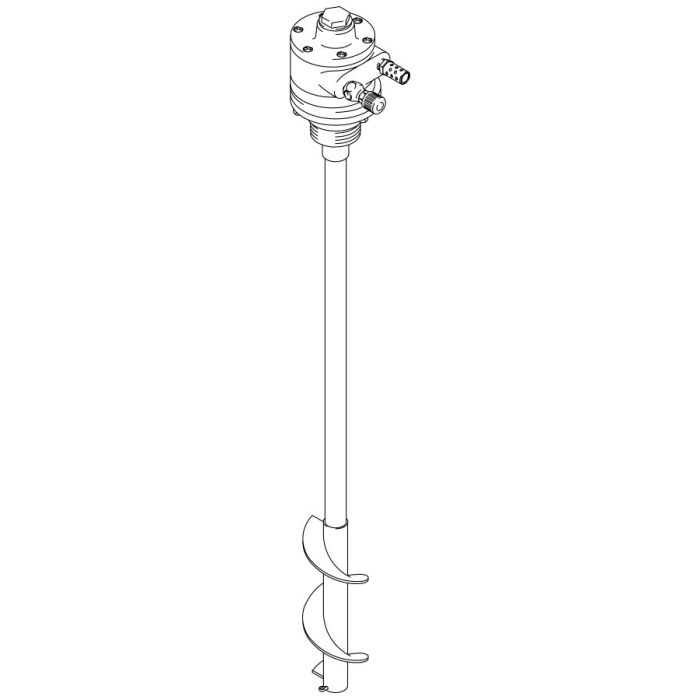

AGITATOR, HELIX
Helix blade effectively mixes higher viscosity materials Mounts directly to 2-inch drum bung Comes in stainless steel or carbon steel Siphon model allows material transfer though agitator shaft Sealed agitator drive prevents material contamination and evaporation Approved by ATEX for use in hazardous locations Maximum viscosity is 10,000 cps
Checking stock status...
Part Number
235534
Loading price...
$0.00
Description / AGITATOR, HELIX
Helix blade effectively mixes higher viscosity materials Mounts directly to 2-inch drum bung Comes in stainless steel or carbon steel Siphon model allows material transfer though agitator shaft Sealed agitator drive prevents material contamination and evaporation Approved by ATEX for use in hazardous locations Maximum viscosity is 10,000 cps
More Information
| Air Inlet Thread Type | NPT |
|---|---|
| Air Inlet Size (in) | 1/8 |
| Maximum Speed (RPM) | 800 |
| For Use With | 55 Gallon (208 Liter) Drum |
| Wetted Material | Stainless Steel, Acetal, Fluoroelastomer |
| Weight (lb) | 17.6 |
| Type | Agitator |
| Power Rating (HP) | 1.5 |
| Motor Type | Pneumatic - Rotary Vane |
| Maximum Working Pressure (psi) | 100 |
| Maximum Viscosity (cP) | 10000 |
| Description | Twistork Drum Agitator, reversible, non-siphon, air driven, 1-1/2 HP, 37.25 in (95 cm) in length, 304 stainless steel material |
| Requires Hazardous Shipping | No |
