DAD-PRO™ Desiccant Air Drying System – CAMAIR by DeVilbiss
The CamAir® DAD-PRO™ Desiccant Air Drying System provides worry free air filtration for top-quality paint jobs.
Checking stock status...
Part Number
130546
Description / DAD-PRO™ Desiccant Air Drying System – CAMAIR by DeVilbiss

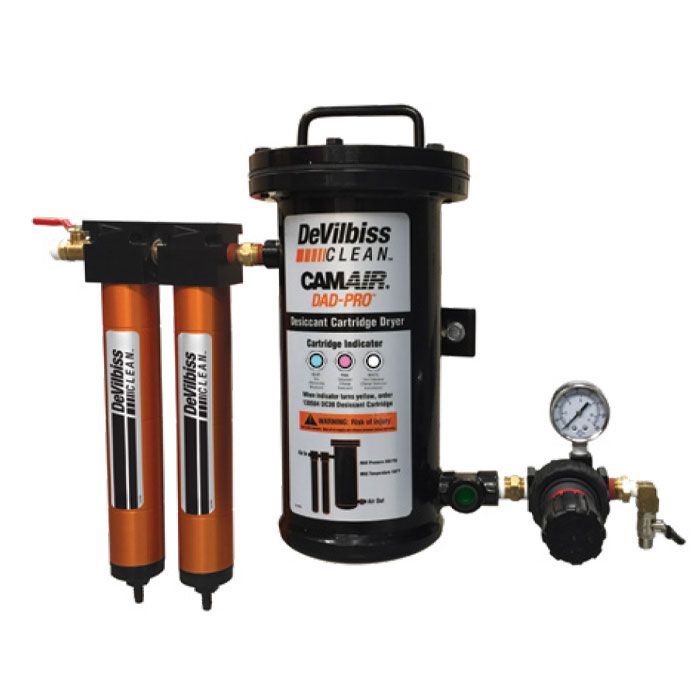

The CamAir® DAD-PRO™ Desiccant Air Drying System provides worry free air filtration for top-quality paint jobs. Air enters the 2-stage filtration package where it is purged of water, oil and oil aerosols. Once cleaned, the air enters the desiccant tank to further remove any remaining water vapor.
- First stage filter removes oil, water and dirt down to 5 microns
- Second stage coalescer removes oil vapors and dirt particles down to .01 microns
- Desiccant tank removes water vapor and humidity down to a dew point of 40° F
- Bagged desiccant for ease of maintenance
- Replacement desiccant cartridge
- Replacement oil coalescer element
- 50 scfm 2-stage filter assembly with regulator
- Replacement water separator element
- Filter mounting bracket
- Float drain kit
| Air Inlet | 1/2″ NPT (Female) |
| Air Outlet | 1/4″ NPT (Male) |
| Air Flow Capacity | 30 CFM |
| Max. Operating Pressure | 175 PSI (12 Bar) |
| Max. Temperature | 150˚F (65.6˚C) |
| Humidity Indicator | Green- OK, Yellow- Replace Desiccant |
| Water Vapor Removal | -40˚F Dew point |
| Partical Removal | .01 micron |
| Manual Drain |
Included |
Available options:
DAD-PRO Desiccant Air Drying System 130546
Replacement Desiccant Cartridge 130504
50 scfm 2-Stage Filter Assy 130536
Replacement Water Separator 130538
Replacement Oil Coalescing Element 130539
Filter Mounting Bracket 130544
Float Drain Kit 130545
More Information
| Type | Desiccant Drying System |
|---|---|
| Material Removed | Oil, Particles, Water, Contaminants |
| Air Inlet Thread Type | NPT |
| Requires Hazardous Shipping | No |
