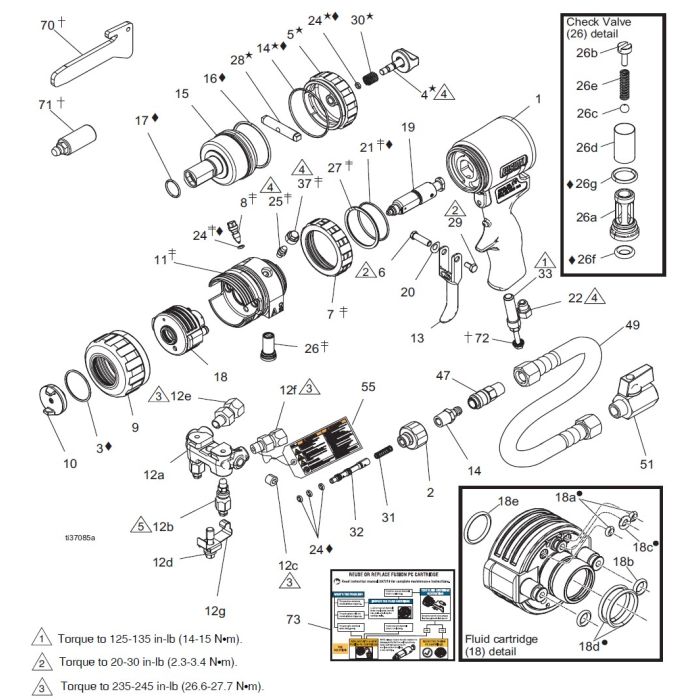

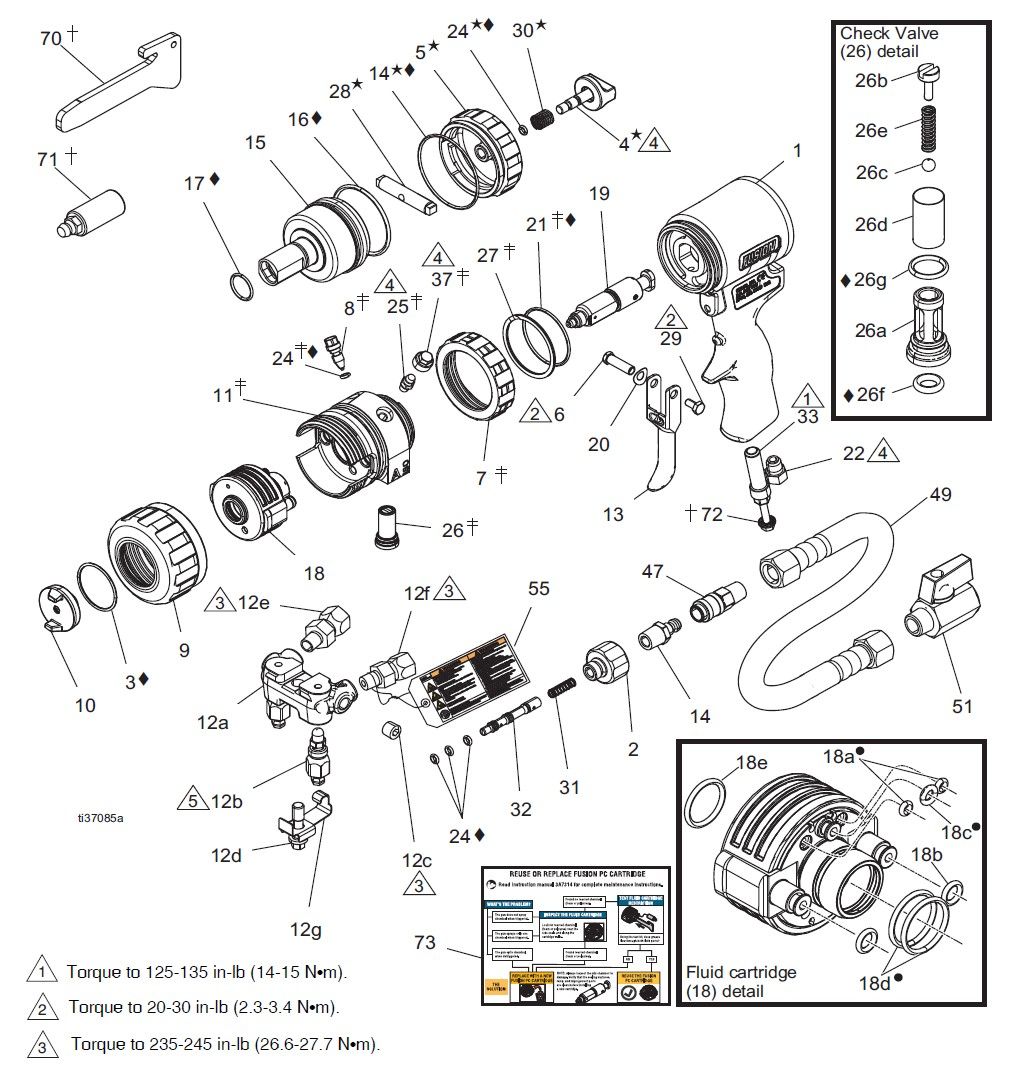

Related Exploded Parts View: Fusion PC Manifold Manual
Part Number 3A7314H.35
Grouped product items
No. Part Number Product Name Price Qty
01 15K365 Graco Fusion AP HANDLE, MACHINED, AIR PURGE - Bare
02 15B208 PLUG AIR VALVE
03 248137 KIT, BULK, PTFE AIR CAP ORING
04 15B206 SHAFT, SAFETY STOP
05 15B204 CAP CYLINDER, GUN
06 192272 PIN, PIVOT
07 26C775 KIT, MIDDLE RING, FUSION PC
08 15B223 VALVE, CLEAN OFF AIR
09 19Y302 KIT, FRONT RING, FUSION PC
10 15B210 AIR CAP
12a 246012 MANIFOLD FLUID
12b 246356 KIT, REPAIR,MANIFOLD VLV
12c 100139 PLUG
12d 15B221 BOLT,SPECIAL, 5/16-24
12e 117635 SWIVEL UNION
12f 117634 SWIVEL UNION
12g 15B993 SPRING, RING LOCK
13 15B209 TRIGGER GUN
14 248136 KIT, BULK,BACK CAP ORING
15 15B203 PISTON MAIN
16 248135 KIT, BULK,LG PISTON ORING
17 248134 KIT, BULK,SMALL AP PISTN ORING
18aa 19Y300 KIT, CARTRIDGE, FUSION PC, 1PK
18ab 19Y301 FUSION PC, CARTRIDGE KIT, 3PK
18ac 19y308 Fusion PC Cartridge Kit - 5 Pack - Graco ProConnect 19y308
18b 25P851 KIT,O-RINGS,FLUID,FUSION PC
18e 248131 KIT, BULK,AIR CAP SMALL ORING
19a PC20RD KIT,PC CHAMBER,RND,000
19b PC29RD KIT, PC CHAMBER, RND, 00
19c PC37RD KIT,PC CHAMBER,RND,00-01
19d PC42RD KIT, PC CHAMBER, RND, 01
19e PC47RD PC, CHAMBER, RND, 01-02
19f PC52RD KIT, PC CHAMBER, RND, 02
19g PC60RD KIT,PC CHAMBER,RND,03
19h PC70RD KIT,PC CHAMBER,RND,04
19i PC22WD KIT,PC CHAMBER,WD,2222
19j PC28WD KIT, PC, CHAMBER, RND, 28WD
19k PC33WD KIT, PC, CHAMBER, RND, 33WD
19l PC39WD KIT, PC, CHAMBER, RND, 39WD
19m PC46WD KIT, PC, CHAMBER, RND, 46WD
19n PC20FL KIT,PC CHAMBER,FL,000
19o PC42FL KIT,PC CHAMBER,FL,01
20 15C480 WASHER, CURVE
21 248132 KIT, BULK,FLUID HSG ORING
22 119626 PLUG, BREATHER
24 246354 KIT, REPAIR, #007 O-RINGS
25 100846 FITTING
26a1 246731 KIT, REPAIR, CHECK VALVE, ISO
26a2 246352 KIT RPR, CHK VLV ASSY
26b 15B214 SCREW,RETAINING SPRING
26c 257420 KIT,ACCESSORY,CHK BALL,10 PK
26d1 246359 KIT, REPAIR, SCREEN, 80 MESH
26d2 246357 KIT, REPAIR, SCREEN,40 MESH
26d3 246358 KIT, REPAIR, SCREEN, 60 MESH
26e 117490 SPRING, CHECK VALVE
26f 248133 KIT, BULK,CK VLV FACE ORING
26g 248129 KIT, BULK,CK VLV RAD SEAL
27 116550 RING RETAINING
28 15B205 STOP, PISTON LOCK
29 203953 SCREW, LOCK
30 114070 SPRING, COMPRESSION
31 117485 SPRING, COMPRESSION
32 15B202 VALVE, SPOOL
33 26C937 KIT,FUSION PC,TOOL HOLDER
35 222385 TAG WARNING
37 15B689 COVER GREASE
47 117510 COUPLER LINE,AIR, 1/4NPT
49 15B772 HOSE, AIR,18 INCH
51 15B565 VALVE, BALL
