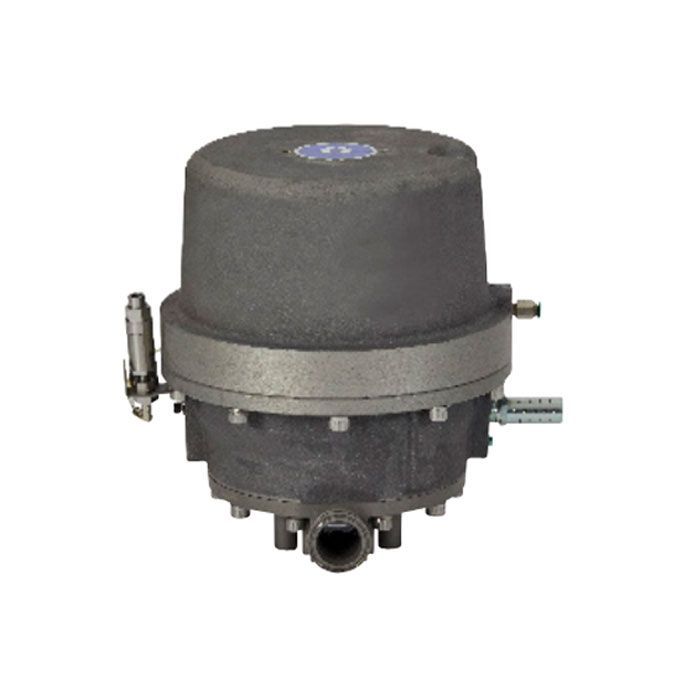

Active Surge Suppressor, 1 x 1.25, 100 psi Max Charge, 10 gpm
Active air pressure compensation eliminates the need for periodic air pressure check and recharge
Checking stock status...
Part Number
17w739
Loading price...
$0.00
Description / Active Surge Suppressor, 1 x 1.25, 100 psi Max Charge, 10 gpm
Active Surge Suppressors
- Work off compressed air available in most manufacturing facilities
- Active air pressure compensation eliminates the need for periodic air pressure check and recharge
- Automatic adjustment of pressure in air section eliminates the need for manual adjustment based on fluid pressure
- Improved flushability makes color changes quick and easy
- Backup seal helps prevent paint from leaking out in case of diaphragm rupture
- Mount on pump, wall, or floor
- Stainless steel and PTFE materials are compatible with many finishing materials
More Information
| Wetted Material | Stainless Steel, PTFE |
|---|---|
| Type | Surge Tank |
| Outlet Size (in) | 1-1/2 |
| Maximum Fluid Pressure (psi) | 300 |
| Maximum Flow Rate (GPM) | 20 |
| Inlet Size (in) | 1-1/2 |
| Description | High Volume Surge Tank, stainless steel, inlet/outlet: 1.5 in (38.1 mm) sanitary tri-clamp, 20 gpm (75.7 lpm), 300 psi (20.7 bar) |
| Requires Hazardous Shipping | No |
