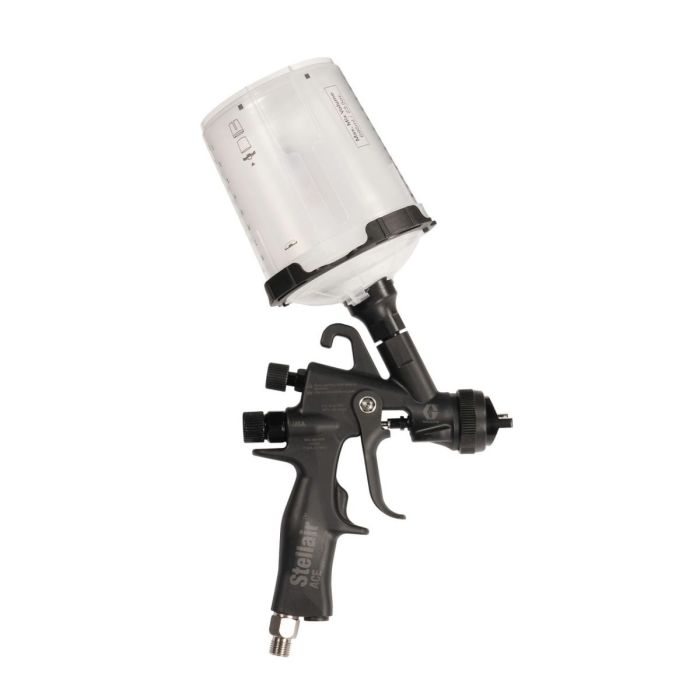

Stellair ACE Air Spray Gravity Feed Gun, LVMP, 0.070 in Nozzle, 3M™ PPS™ Cup, Graco
Graco 2010716 - Gravity Feed LMVP Gun, 0.070 Fluid Orifice, No Hose.
Checking stock status...
Part Number
2010716
Loading price...
$0.00
Description / Stellair ACE Air Spray Gravity Feed Gun, LVMP, 0.070 in Nozzle, 3M™ PPS™ Cup, Graco
The Stellair ACE Gravity Gun couples the same lightweight, ergonomically designed body of the Stellair ACE line of guns with gravity-fed technology. This makes the ACE Gravity Gun ideal for small-batch coating that requires minimal material use. It’s designed to deliver high quality finish for low volume color production, touch up applications, and material spray testing.
The Stellair ACE Gravity Gun benefits end users by reducing maintenance-related downtime, limiting user fatigue with enhanced ergonomics, and fulfills the need for small-batch customization.
- No tools are needed to maintain gun, with manually removable trigger that doubles as a service tool.
- Carbon-reinforced polymer construction reduces gun weight by 50%.
- One piece fluid cartridge can be removed and replaced so quickly that it nearly eliminates maintenance related downtime.
- The Stellair ACE line is the industry’s only gun to earn the Ergonomics Performance Certification from United States Ergonomics.
- Available with 2 air cap technologies, HVLP/LVMP and Conventional.
- Cup options include no cup, Plastic Gravity cup, and 3M™ PPS™ cup with adapter.
- Air cap stays clean while delivering atomization that results in industry leading finish quality.
| Air Inlet Size (in) | 1/4 |
|---|---|
| Air Inlet Thread Gender | Male |
| Air Inlet Thread Type | NPSM |
| Applicator Type | Air Spray |
| Compatible Material | Enamel, Epoxy, Fast-Set, High Solids, Latex, Plural-Component, Sealants, Solventborne, Urethane, Waterborne |
| Feed Type | Gravity Feed |
| Fluid Orifice Size (in) | 0.070 |
| Gun Activation | Manual |
| Gun Type | LVMP Gun |
| Gun Weight (oz) | 8.8 |
| Hose Package | No Hose |
| Includes | 3M PPS cup and adaptor |
| Maximum Air Inlet Pressure (MPa) | 0.7 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Temperature (°F) | 109 |
| Maximum Operating Temperature (°F) | 109 |
| Minimum Air Flow Rate (SCFM) | 11.2 |
| Minimum Air Inlet Pressure (MPa) | 0.24 |
| Minimum Air Inlet Pressure (psi) | 35 |
| Model | Stellair ACE |
| Needle Tip Material | PEEK |
| Nozzle Size (in) | 0.070 |
| Product Type | Spray Gun |
| Series | Stellair |
| Sound Pressure Level (dB(A)) | 81.8 |
| Spray Type | Air Spray |
| Type | Spray Gun |
| Wetted Parts | 17-4 PH Stainless Steel, PEEK, Acetal, UHMWPE, Nylon, 303 Stainless Steel |
More Information
| Type | Spray Gun |
|---|---|
| Spray Type | Air Spray |
| Spray Pattern | Flat |
| Compatible Material | Stains, Toner, UV Coating, Waterborne, NGR, Solventborne |
| Applicator Type | Manual |
| Application | Wood |
| Air Inlet Thread Type | NPSM |
| Feed Type | Gravity Feed |
| Gun Type | LVMP Gun |
| Gun Included | Yes |
| Gun Activation | Manual |
| Fluid Inlet Thread Type | NPSM |
| Requires Hazardous Shipping | No |
