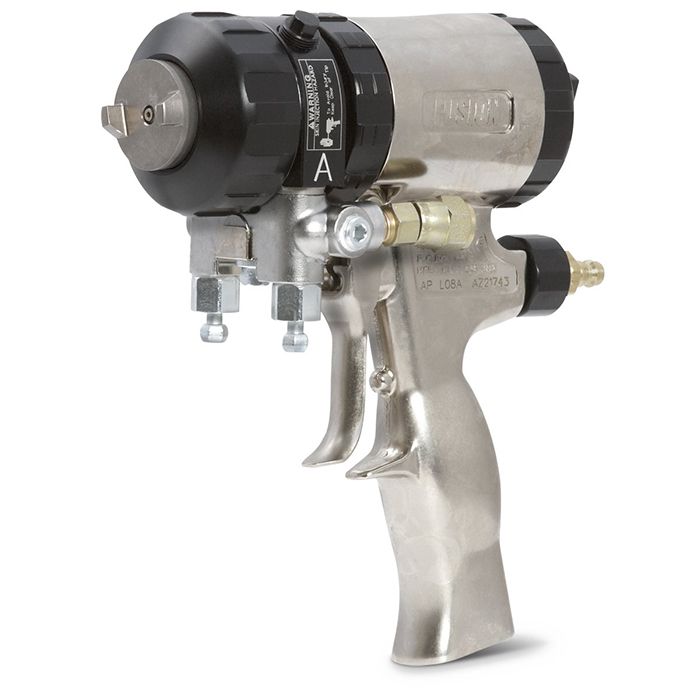

GUN FUSION
With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.
Checking stock status...
Part Number
246101
Loading price...
$0.00
Description / GUN FUSION
Easy air-blast tip cleaning reduces build-up and tip clogging. Long-lasting side seals means less downtime for maintenance Quick-release fluid housing - lets you easily change the mix chambers without tools Hand-tightened front cap - no tools needed to clean and maintain seals and mix chamber Ergonomic handle
More Information
| Description | Round Fusion Air-Purge Gun with 01 Mix Chamber and 0.042 in (1.6 mm) Orifice Size |
|---|---|
| Application Text | For high output spray polyurethane foam and polyurea applications. |
| Overall Height (in) | 8.1 |
| Minimum Air Inlet Pressure (psi) | 80 |
| Maximum Fluid Working Pressure (psi) | 3500 |
| Maximum Fluid Pressure (psi) | 3500 |
| Maximum Flow Rate @ PSI (lb/min) | 50 |
| Overall Length (in) | 7.5 |
| Overall Width (in) | 3.3 |
| Pattern Size (in) | 11 in @ 24 in from target |
| For Use With | Non-Flammable Foam and Polyurea |
| Wetted Parts | Aluminum, Stainless Steel, Chemically Resistant O-Rings, Carbon Steel, Carbide |
| Type | Spray Gun |
| Trigger Type | Two-Finger |
| Trigger Lock | Locking |
| Spray Pattern | Round |
| Spray Gun Mix Type | Impingement |
| Sound Pressure Level (dB(A)) | 81.1 |
| Sound Power Level (dB(A)) | 91 |
| Purge Method | Air |
| Includes | AR4242 Mix Chamber Tip |
| Maximum Air Pressure (psi) | 130 |
| Maximum Air Inlet Pressure (psi) | 130 |
| Component Type | Plural-Component |
| Component B Inlet Thread Type | UNF |
| Component B Inlet Size (in) | 9/16-18 |
| Component A Inlet Thread Type | UNF |
| Component A Inlet Size (in) | 1/2-20 |
| Compatible Material | Spray Polyurethane Foam, Polyurea, Polyurethane Coating, Polyurethane, Adhesives |
| Applicator Type | Manual |
| Air Inlet Thread Type | NPT |
| Impingement Port Size (in) | 0.042 |
| Gun Weight (oz) | 40 |
| Gun Weight (lb) | 2.5 |
| Gun Type | Air Purge Gun |
| Gun Included | Yes |
| Gun Activation | Manual |
| Air Inlet Size (in) | 1/4 |
| Fluid Orifice Size (in) | 0.042 |
| Fluid Orifice Size (mm) | 1.07 |
| Requires Hazardous Shipping | No |
