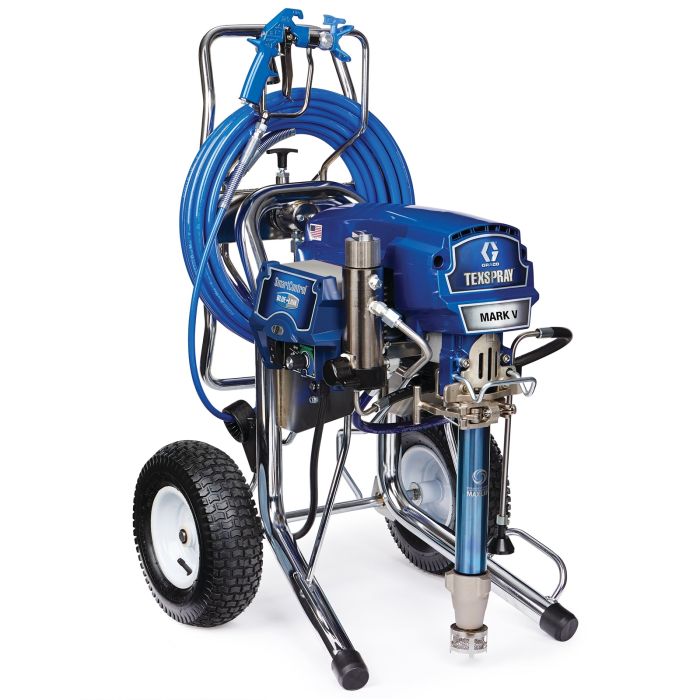

Graco MARK V Electric Sprayer PROCONTRACTOR
The TexSpray Mark V delivers a higher flow rate to complete jobs faster. Providing 20% more productivity than the Mark IV, this unit comes with an upgraded Heavy-Duty Texture Gun that can accommodate a larger tip size to handle all texture finishes and the wide range of primers and paint.
Checking stock status...
Part Number
17E606
Loading price...
$0.00
Description / Graco MARK V Electric Sprayer PROCONTRACTOR
Endurance Vortex MaxLife Piston Pump
- Superior pump life
- Breakthrough vortex rotating rod technology
- Lasts 6X longer between repacks with innovative MaxLife technology
- Oversized passages for high velocity flow to rotate piston for even wear Longest life packings and piston rod Long life ceramic and stainless steel balls included for maximum versatility
- Less pack-out, more productivity
- Self-cleaning Vibra-Seal Technology eliminates material build-up
- Continuous spraying with True Pack-Out Protection for more productivity
- Optimized fluid passageways for the heaviest coatings
- Streamline your business
- Track every sprayer: Exact location & hourly productivity
- Know job progress: On demand productivity facts and reporting from anywhere
- Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
- Precision Pressure Control
- Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation
- ProGuard prevents electrical damage from extreme jobsite power conditions
- WatchDog Pump Protection System automatically prevents pump damage if material supply is too low
- Easy hose management
- Deploy and rewind up to 300 feet (90 meters) of hose in seconds
- No twisting, kinking, and coiling
- Use only the hose you need — the rest stays on the reel
- Eliminate costly downtime
- Exchange pump in minutes
- No tools, pins or parts to lose
- Fast cleaning now even FASTER
- Clean the pump 6X faster using ½ the water
- High-velocity fluid flow delivered with 60% higher motor speed
- Durable filtration
- Stands up to harsh impacts to maintain even flow through filter
- Proven power and performance for all painting applications
- High-torque brushless design with a Lifetime Warranty
- The longest lasting drive
- Hardened steel gears provide extremely quiet operation and a lifetime warranty
- WatchDog Pump Protection System
- Easy Out Filter Manifold
- Heavy-Duty Prime Valve
- Rugged, Durable Cart Design
More Information
| Extended Desc | 17E606 Mark V ProContractor |
|---|---|
| Description | Small 110V Electric Airless Sprayers are great for small jobs, tough-up or mock-ups. Graco's TexSray Mark IV/Mark V utilizes a dropped inlet housing that allows it to spray or pressure roll extremely thick coatings from 5-gallon pails. ProContractor models include built in hose reel and digital display. |
| Application Text | Work Smarter, Finish More Jobs. TexSpray Mark ProContractor Series electric airless texture sprayers are designed to deliver speed & performance so you can get to the next jobsite faster and increase your profits. |
| Number of Guns | 1 |
| Overall Height (in) | 39 |
| Overall Length (in) | 28 |
| Overall Width (in) | 24 |
| Maximum Tip Size Gun 1 (in) | 0.039 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 5000 |
| Motor Type | MaxPower |
| Power Rating (HP) | 2.8 |
| Power Rating (kW) | 2.09 |
| Type | Airless Sprayer |
| Voltage (V) | 120 |
| Volume Per Cycle (cycles/gal) | 110 |
| Weight (lb) | 151 |
| Wetted Material | Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, PEEK, Stainless Steel, Brass, Aluminum, UHMWPE, Leather, Tungsten Carbide, Acetal, PTFE, Nylon |
| Recommended Annual Usage | 100-200 gallons per week |
| Power Rating (W) | 2088.0 |
| Power Source | Electric |
| Pressure Control Type | SmartControl 4.0 |
| Pump Mount Type | ProConnect 2 |
| Pump Rod Type | MaxLife |
| Pump Sleeve Material | MaxLife |
| Includes | Heavy-Duty Blue Texture Gun;RAC X LTX 427 Spray Tip;RAC X LTX 531 Spray Tip;RAC X Guard;3/8 in x 50 ft BlueMax II Airless Hose;1/4 in x 3 ft BlueMax II Airless Whip Hose |
| Amperage (A) | 20 |
| Convertible | Non-Convertible |
| Features | Heavy-Duty Prime Valve, WatchDog, Endurance Vortex MaxLife Pump, MaxPower Brushless, MaxFlo 2, FastFlush 2, Crushproof Inlet Strainer, Easy Out Filter, QuikReel, BlueLink System, Advantage Drive, ProConnect 2, SmartControl 4.0 |
| Compatible Replacement Pump | 17H833 |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Thread Type | NPSM |
| Maximum Flow Rate (GPM) | 1.35 |
| Maximum Sound Pressure Level (dB(A)) | 82 |
| Hose Reel Type | QuikReel |
| Frame Configuration | Hi-Boy |
| Gun Included | No |
| Maximum Tip Size (in) | 0.039 |
| Requires Hazardous Shipping | No |
