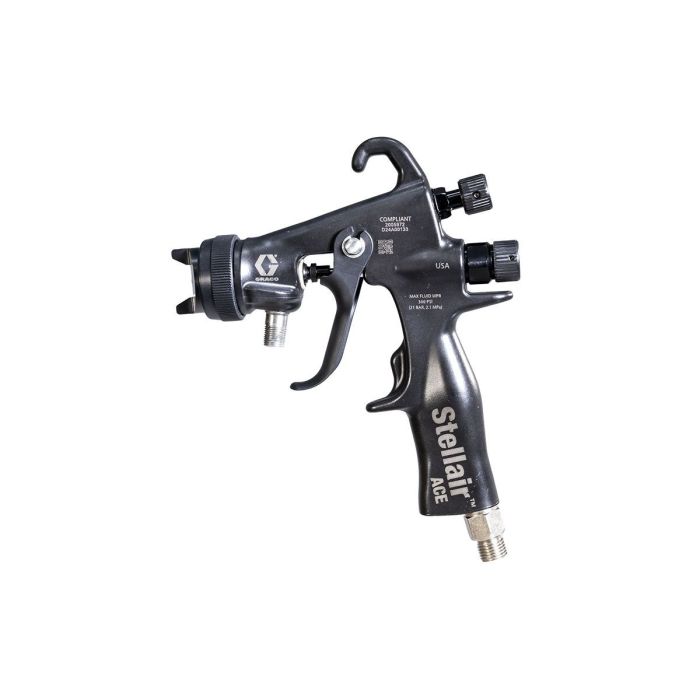

Stellair ACE Air Spray Pressure Feed Gun, .055 in (1.4 mm) Nozzle Size, Graco
Graco Pressure Feed, HVLP/ LMVP Gun. .055 Fluid Orifice. No Hose.
Checking stock status...
Part Number
2005972
Loading price...
$0.00
Description / Stellair ACE Air Spray Pressure Feed Gun, .055 in (1.4 mm) Nozzle Size, Graco
The unique carbon reinforced construction of this pressure feed air spray gun lightens the load for industrial painters. At 209 grams (7.4 ounces), Stellair ACE is up to 50 percent lighter than almost any other manual sprayer.
| Air Inlet Size (in) | 1/4 |
|---|---|
| Air Inlet Thread Type | NPSM |
| Application | General Industry |
| Applicator Type | Air Spray |
| Compatible Material | Enamel, Epoxy, Fast-Set, High Solids, Latex, Plural-Component, Sealants, Solventborne, Urethane, Waterborne |
| Feed Type | Pressure Feed |
| Fluid Inlet Size (in) | 0.125 |
| Fluid Inlet Thread Type | NPSM |
| Fluid Orifice Size (in) | 0.055 |
| Gun Activation | Manual |
| Gun Type | HVLP/LVMP Gun |
| Gun Weight (oz) | 7.4 |
| Hose Package | No Hose |
| Includes | Air Cap, Needle Assembly, Nozzle |
| Maximum Air Pressure (MPa) | 0.7 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (MPa) | 2.1 |
| Maximum Fluid Pressure (psi) | 300 |
| Maximum Operating Temperature (°F) | 109 |
| Model | Stellair ACE |
| Series | Manual |
| Spray Type | Air Spray |
| Trigger Lock | Non-Locking |
| Trigger Type | Two-Finger |
| Type | Spray Gun |
| Wetted Parts | Stainless Steel, PEEK, Acetal, Chemically Resistant Fluoroelastamer, UHMWPE, PPS |
More Information
| Type | Spray Gun |
|---|---|
| Trigger Type | Two-Finger |
| Trigger Lock | Non-Locking |
| Technology Type | HVLP |
| Spray Type | Air Spray |
| Spray Pattern | Flat |
| Compatible Material | Stains, Toner, UV Coating, Waterborne, NGR, Solventborne |
| Bleed Type | Non-Bleeder |
| Applicator Type | Manual |
| Application | Wood |
| Air Inlet Thread Type | NPSM |
| Feed Type | Pressure Feed |
| Gun Included | Yes |
| Gun Activation | Manual |
| Fluid Inlet Thread Type | NPSM |
| Requires Hazardous Shipping | No |
