Reactor 3, E-20 PRO, Graco Spray Foam Proportioner 7kW Heat
Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for polyurea applications.
Checking stock status...
Part Number
Reactor 3, E-20 PRO
Description / Reactor 3, E-20 PRO, Graco Spray Foam Proportioner 7kW Heat

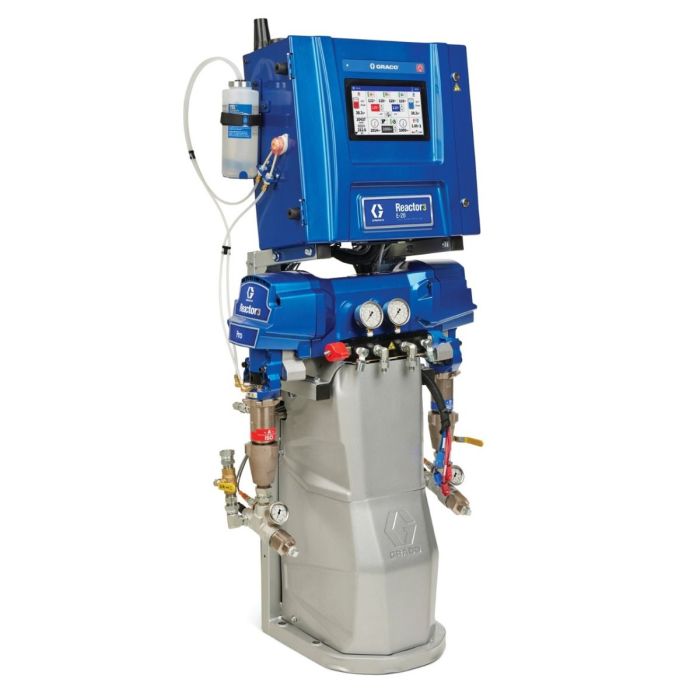

Graco Reactor 3 E-20 Pro Spray Foam Proportioner | 7kW Heat
The Graco Reactor 3 E-20 Pro Spray Foam Proportioner with 7kW heat is designed for professional insulation contractors applying polyurethane spray foam in residential and commercial applications. Featuring advanced Reactor 3 technology, this system provides precise temperature control, stable pressure management, and enhanced system diagnostics to ensure consistent foam output and reliable spray performance. The 7kW heating capacity maintains optimal material temperatures for proper mixing and smooth application. Built for durability and jobsite productivity, the Reactor 3 E-20 Pro helps contractors improve efficiency, reduce downtime, and achieve high-quality insulation results on every project.
Reactor 3, E-20, Pro, 7kW Heat 26R311
Package: 50 ft ext heated hose, 10 ft whip ESR311
Package: 50 ft ext heated hose (qty 4), 10 ft whip EHR311
Package: 50 ft int heated hose, 20 ft whip ISR311
Package: 100 ft int heated hose (qty 2), 20 ft whip IHR311
More Information
| Maximum Flow Rate (GPM) | 20 |
|---|---|
| Maximum Spray Pressure (psi) | 2000 |
| Frequency (Hz) | 50/60 |
| Remote Mix Manifold Included | No |
| Weight (lb) | 260 |
| Pump Filter Included | No |
| Primary Fluid Heater Included | No |
| Overall Depth (in) | 15 |
| Overall Height (in) | 56.5 |
| Overall Width (in) | 24.9 |
| Power Rating (kW) | 7 |
| Extended Desc | Amperage (A) 56A 1–ph, 36A 3–ph DELTA, 24A 3–ph WYE Frequency (Hz) 50/60 Hose Heating Type No Hose Hose Length (ft) 0 Maximum Flow Rate (lb/min) 20 Maximum Fluid Temperature (°F) 190 Maximum Operating Temperature (°F) 120 Maximum Spray Pressure (MPa) 14 Maximum Spray Pressure (psi) 2000 Model Reactor 3 Overall Depth (in) 15 Overall Height (in) 56.5 Overall Width (in) 24.9 Power Rating (kW) 7 Product Series Pro Series E-20 Transfer Pump No Transfer Pump Type Proportioner Package Voltage (V) 200-240 VAC, 1–ph, 200-240 VAC,3–ph DELTA, 350-415 VAC,3–ph WYE Weight (lb) 260 |
| Item Description | Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for spray foam applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. The E-20 is a spray foam system build for contractors focused on smaller jobs or for contractors just entering the business, it is a great starter machine. Due to the smaller heaters the E-20 is also a good choice for contractors in tempered climates where larger heaters are not required. ISO Lube Pump Active ISO Lube system with peristaltic pump Automatic timed circulation improves TSL Life Reduced maintenance (No check valves) New larger easy-to-change ISO lube bottle Touchscreen Advanced Display Module (ADM) Large new touchscreen interface Intuitive operation and navigation All spray operations from one screen Independent Hose Control Control A and B materials to different temperatures for improved pressure balancing Optimizes yield Advanced Electric Design Brushless motor for improved pressure/flow performance New temperature control boards for independent hose heat Voltage jumpers for easy changing between voltages Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly New Reactor 3 exclusive: connect with Tier 4 engines for ADM engine diagnostic Reduced Size Reduced footprint provides additional room in your rig Compact design protects the flow meters and hose connections from being damaged in your rig |
| Amperage (A) | 56A 1–ph, 36A 3–ph DELTA, 24A 3–ph WYE |
| Requires Hazardous Shipping | No |
