Reactor 3, E-30, Pro, 15kW Heat, Graco Spray Foam Proportioner
The Reactor 3 E-30 Pro w/ 15kW Heat is is ideal for contractors focused on growing their business doing typical residential and commercial spray foam work.
Checking stock status...
Part Number
Reactor 3, E-30, Pro, 15kW Heat
Description / Reactor 3, E-30, Pro, 15kW Heat, Graco Spray Foam Proportioner

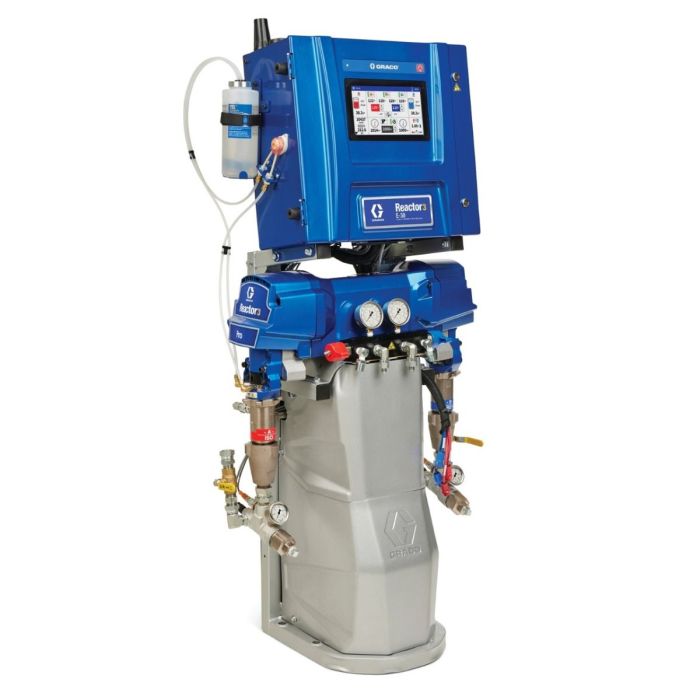

Reactor 3 E-30 Pro 15kW Heat by Graco
Professional Spray Foam Proportioner
The Reactor 3 E-30 Pro 15kW Heat Spray Foam Proportioner by Graco is engineered for contractors who require dependable performance and precise temperature control for polyurethane foam insulation projects. Equipped with a powerful 15kW heating system, the E-30 Pro maintains consistent material viscosity to ensure proper mixing, optimized yield, and superior foam quality. Its advanced electronic controls provide accurate ratio management and streamlined operation, helping reduce waste and improve jobsite productivity. Ideal for residential and mid-size commercial applications, the Reactor 3 E-30 Pro offers consistent pressure, durable construction, and enhanced serviceability—making it a trusted solution for professional spray foam contractors seeking efficiency and reliable results.
Available options:
Reactor 3, E-30, Pro, 15kW Heat - BARE 26R333
Package: 50 ft ext heated hose, 10 ft whip ESR333
Package: 50 ft ext heated hose (qty 4), 10 ft whip EHR333
Package: 50 ft int heated hose, 20 ft whip ISR333
Package: 100 ft int heated hose (qty 2), 20 ft whip IHR333
More Information
| Maximum Spray Pressure (psi) | 2000 |
|---|---|
| Frequency (Hz) | 50/60 |
| Remote Mix Manifold Included | No |
| Weight (lb) | 325 |
| Pump Filter Included | No |
| Primary Fluid Heater Included | No |
| Overall Depth (in) | 15 |
| Overall Height (in) | 56.5 |
| Overall Width (in) | 26.8 |
| Power Rating (kW) | 15 |
| Extended Desc | Amperage (A) 97A 1–ph, 59A 3–ph DELTA, 35A 3–ph WYE Frequency (Hz) 50/60 Hose Heating Type No Hose Hose Length (ft) 0 Maximum Flow Rate (lb/min) 30 Maximum Fluid Temperature (°F) 190 Maximum Operating Temperature (°F) 120 Maximum Spray Pressure (MPa) 14 Maximum Spray Pressure (psi) 2000 Model Reactor 3 Overall Depth (in) 15 Overall Height (in) 56.5 Overall Width (in) 26.8 Power Rating (kW) 15 Product Series Pro Series E-30 Transfer Pump No Transfer Pump Type Proportioner Package Voltage (V) 200-240 VAC, 1–ph, 200-240 VAC,3–ph DELTA, 350-415 VAC,3–ph WYE Weight (lb) 325 |
| Item Description | Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for spray foam applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. The E-30 is a spray foam system build for contractors looking for a machine with more output and capabilities. It is ideal for contractors focused on growing their business doing typical residential and commercial spray foam work. The E-30 is an ideal machine that can be the workhorse of your fleet, capable of handling most types of jobs with a good mix of output, heat and features. ISO Lube Pump Active ISO Lube system with peristaltic pump Automatic timed circulation improves TSL Life Reduced maintenance (No check valves) New larger easy-to-change ISO lube bottle Touchscreen Advanced Display Module (ADM) Large new touchscreen interface Intuitive operation and navigation All spray operations from one screen Independent Hose Control Control A and B materials to different temperatures for improved pressure balancing Optimizes yield Advanced Electric Design Brushless motor for improved pressure/flow performance New temperature control boards for independent hose heat Voltage jumpers for easy changing between voltages Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly New Reactor 3 exclusive: connect with Tier 4 engines for ADM engine diagnostic Reduced Size Reduced footprint provides additional room in your rig Compact design protects the flow meters and hose connections from being damaged in your rig |
| Amperage (A) | 76A 1–ph, 49A 3–ph DELTA, 35A 3–ph WYE |
| Requires Hazardous Shipping | No |
