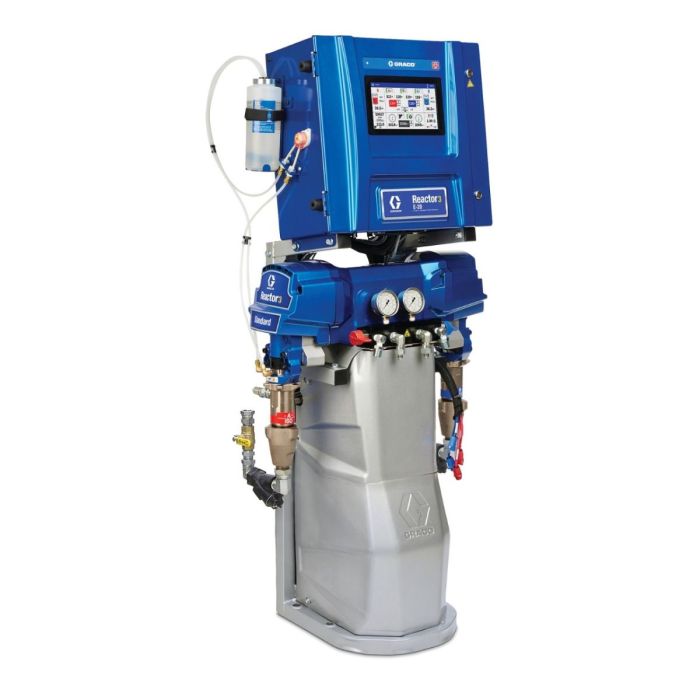

Reactor 3, E-20, Standard, 7kW Heat, Graco Spray Foam Proportioner
Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for polyurea applications.
Checking stock status...
Part Number
Reactor 3, E-20, Standard, 7kW Heat
Description / Reactor 3, E-20, Standard, 7kW Heat, Graco Spray Foam Proportioner
Graco Reactor 3 E-20 Standard Spray Foam Proportioner | 7kW Heat
The Graco Reactor 3 E-20 Standard Spray Foam Proportioner with 7kW heat is engineered for professional contractors applying polyurethane spray foam insulation in residential and commercial environments. Built with advanced Reactor 3 technology, this system delivers precise temperature management, consistent pressure control, and improved diagnostics to ensure reliable spray performance. The 7kW heating capacity maintains proper material temperatures for smooth mixing and efficient application. Designed for productivity and durability, the Reactor 3 E-20 Standard helps contractors achieve consistent foam yield, reduce downtime, and maintain high-quality insulation results on every project.
Reactor 3, E-20, Standard, 7kW Heat 26R310
Package: 50 ft ext heated hose, 10 ft whip ESR310
Package: 50 ft ext heated hose (qty 4), 10 ft whip EHR310
Package: 50 ft int heated hose, 20 ft whip ISR310
Package: 100 ft int heated hose (qty 2), 20 ft whip IHR310
More Information
| Maximum Flow Rate (GPM) | 1 |
|---|---|
| Maximum Spray Pressure (psi) | 3000 |
| Maximum Working Pressure (psi) | 20.7 |
| Frequency (Hz) | 50/60 |
| Remote Mix Manifold Included | No |
| Weight (lb) | 260 |
| Pump Filter Included | No |
| Primary Fluid Heater Included | No |
| Overall Depth (in) | 15 |
| Overall Height (in) | 56.5 |
| Overall Width (in) | 24.9 |
| Power Rating (kW) | 7 |
| Extended Desc | Amperage (A) 56A 1–ph, 36A 3–ph DELTA, 24A 3–ph WYE Frequency (Hz) 50/60 Hose Heating Type No Hose Hose Length (ft) 0 Maximum Flow Rate (lb/min) 20 Maximum Fluid Temperature (°F) 190 Maximum Operating Temperature (°F) 120 Maximum Spray Pressure (MPa) 14 Maximum Spray Pressure (psi) 2000 Model Reactor 3 Overall Depth (in) 15 Overall Height (in) 56.5 Overall Width (in) 24.9 Power Rating (kW) 7 Product Series Standard Series E-20 Transfer Pump No Transfer Pump Type Proportioner Package Voltage (V) 200-240 VAC, 1–ph, 200-240 VAC,3–ph DELTA, 350-415 VAC,3–ph WYE Weight (lb) 260 |
| Item Description | Upgrade your rig with a powerful NEW Reactor 3 proportioner, built with advanced capabilities for spray foam applications. Reactor 3 is designed to communicate with the entire system to simplify the operator's job, optimize spray parameters and maximize productivity. The E-20 is a spray foam system build for contractors focused on smaller jobs or for contractors just entering the business, it is a great starter machine. Due to the smaller heaters the E-20 is also a good choice for contractors in tempered climates where larger heaters are not required. ISO Lube Pump Active ISO Lube system with peristaltic pump Automatic timed circulation improves TSL Life Reduced maintenance (No check valves) New larger easy-to-change ISO lube bottle Touchscreen Advanced Display Module (ADM) Large new touchscreen interface Intuitive operation and navigation All spray operations from one screen Independent Hose Control Control A and B materials to different temperatures for improved pressure balancing Optimizes yield Advanced Electric Design Brushless motor for improved pressure/flow performance New temperature control boards for independent hose heat Voltage jumpers for easy changing between voltages Robust UL listed electrical hose connectors are color coded and keyed for error proof assembly New Reactor 3 exclusive: connect with Tier 4 engines for ADM engine diagnostic Reduced Size Reduced footprint provides additional room in your rig Compact design protects the flow meters and hose connections from being damaged in your rig |
| Amperage (A) | 56A 1–ph, 36A 3–ph DELTA, 24A 3–ph WYE |
| Requires Hazardous Shipping | No |
