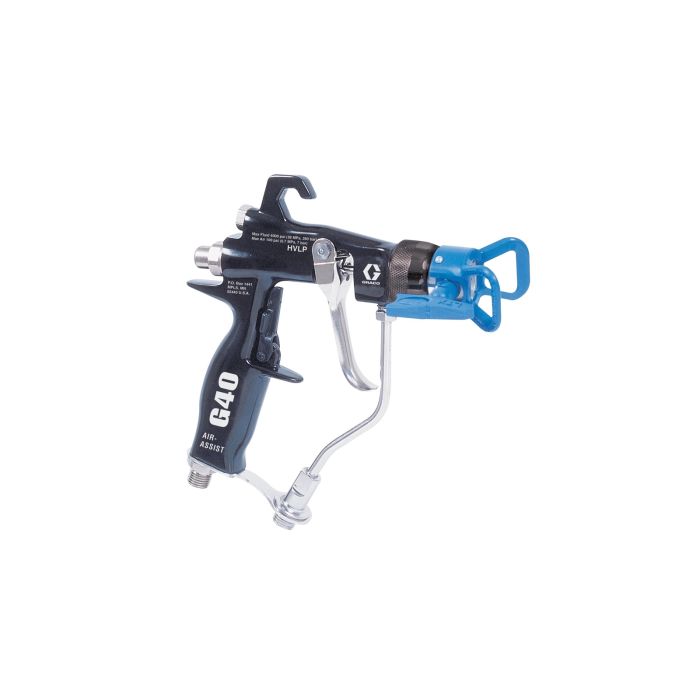

GUN, ASSY, AAG40 RAC TIP
Designed to maximize efficiency and quality, G15 and G40 air-assist spray guns use the highest quality components for long lasting reliable performance. The AAF tip line is designed for soft spray and improved transfer efficiency.
Loading Price
Part Number
24C857
High quality air-assisted spraying in a variety of applications All tips have a ring to retain the tip in the aircap Designed to minimize wear of replacement parts Improving transfer efficiency and material usage Trigger pull force is ultra-light, reducing operator fatigue and muscle stress
| Height | 2.2 |
|---|---|
| Length | 13 |
| Long Description | G40 Air-Assist Reverse-A-Clean (RAC) Spray Gun for high viscosity materials above 1500 psi |
| Width | 10.6 |
| Overall Height (in) | 8 |
| Maximum Fluid Pressure (psi) | 4000 |
| Overall Length (in) | 6.9 |
| Wetted Parts | Stainless Steel, Nylon, Fluoroelastomer, PTFE, Engineered Plastic, Carbide, UHMWPE |
| Type | Spray Gun |
| Trigger Type | Two-Finger |
| Trigger Lock | Locking |
| Technology Type | N/A |
| Spray Type | Air-Assisted |
| Spray Pattern | Flat |
| Sound Pressure Level (dB(A)) | 80 |
| Sound Power Level (dB(A)) | 89.9 |
| Includes | Carbide Seat;Tip Guard;Tip of Choice;Tool Kit |
| Maximum Air Pressure (psi) | 100 |
| Maximum Air Inlet Pressure (psi) | 100 |
| Compatible Material | High Solids, Lacquer, Latex, Polyurethane, Epoxies, Plural Component Materials, Varnish, UV Coating, Waterborne, Solventborne, Urethane, Acid Catalyzed |
| Bleed Type | Non-Bleeder |
| Applicator Type | Manual |
| Air Inlet Thread Type | NPSM |
| Air Inlet Thread Gender | Male |
| Feed Type | Pressure Feed |
| Gun Weight (oz) | 16 |
| Gun Weight (lb) | 1 |
| Gun Type | Air-Assisted Gun |
| Gun Included | Yes |
| Gun Activation | Manual |
| Fluid Inlet Thread Type | NPSM |
| Fluid Inlet Size (in) | 1/4 |
| Air Inlet Size (in) | 1/4 |
