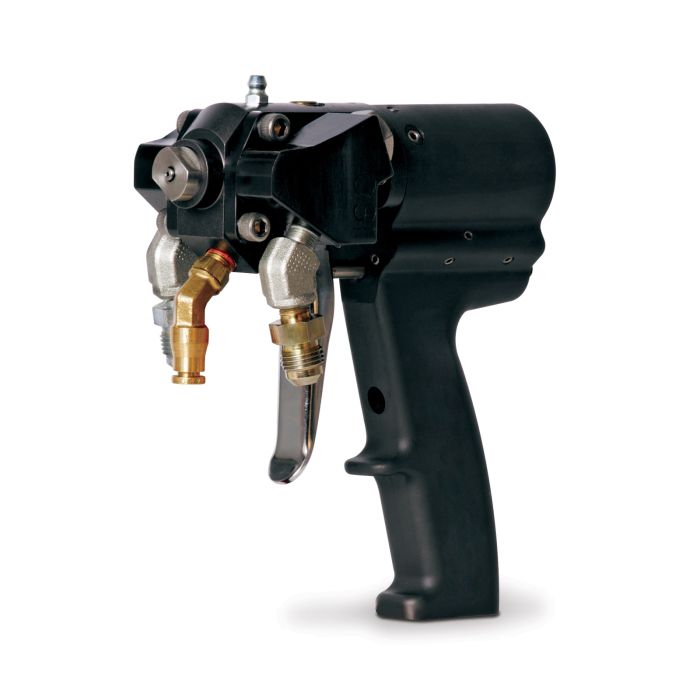

GUN,ASSY,GUN,PROBLER P2 ELITE
The Probler P2 Gun is lightweight and easy to maneuver - even in difficult spraying positions. Its double piston design provides more than 300 pounds (136 kg) of triggering force - much more than a smaller piston diameter. The Probler P2 reduces maintenance, increases spraying uptime and is easy to use.
Loading Price
Part Number
GCP3R1
Easy daily maintenance Responsive trigger action Easy-to-replace mix chamber insert Anti-crossover design virtually eliminates possibility of material entering the air piston Ergonomic handle and balanced design Allows use of additional accessories Alternate side block hose routings Allows filters to be easily removed
Height | 16.25 |
---|---|
Length | 5.4 |
Long Description | Probler P2 Elite Gun Assembly with 01 Mix Chamber Kit |
Application Text | For high output spray polyurethane foam and polyurea applications. |
Width | 13.5 |
Minimum Flow Rate (lb/min) | 3 |
Overall Height (in) | 4.75 |
Minimum Air Inlet Pressure (psi) | 90 |
Maximum Fluid Working Pressure (psi) | 3200 |
Maximum Fluid Pressure (psi) | 3200 |
Maximum Flow Rate (lb/min) | 40 |
Overall Length (in) | 3.125 |
Overall Width (in) | 6.875 |
Pattern Size (in) | 10 in @ 24 in from target |
For Use With | Reactor Plural Component Proportioner;Reactor Spray Foam and Coatings Equipment |
Wetted Parts | Stainless Steel, PTFE, Chemically Resistant O-Rings, Carbon Steel |
Type | Spray Gun |
Trigger Lock | Locking |
Spray Pattern | Flat |
Spray Gun Mix Type | Impingement |
Purge Method | Air |
Maximum Air Pressure (psi) | 110 |
Maximum Air Inlet Pressure (psi) | 110 |
Component Type | Plural-Component |
Component B Inlet Thread Type | UNF |
Component B Inlet Size (in) | 7/16-18 |
Component A Inlet Thread Type | UNF |
Component A Inlet Size (in) | 1/2-20 |
Compatible Material | Polyurea, Polyurethane Coating, Polyurethane, Adhesives, Roof Coating |
Applicator Type | Manual |
Air Inlet Thread Type | NPT |
Air Inlet Thread Gender | Male |
Gun Weight (oz) | 32.4 |
Gun Weight (lb) | 3.9 |
Gun Type | Air-Purge |
Gun Included | Yes |
Gun Activation | Manual |
Air Inlet Size (in) | 1/4 |
Fluid Orifice Size (in) | 0.042 |
Fluid Orifice Size (mm) | 1.07 |
