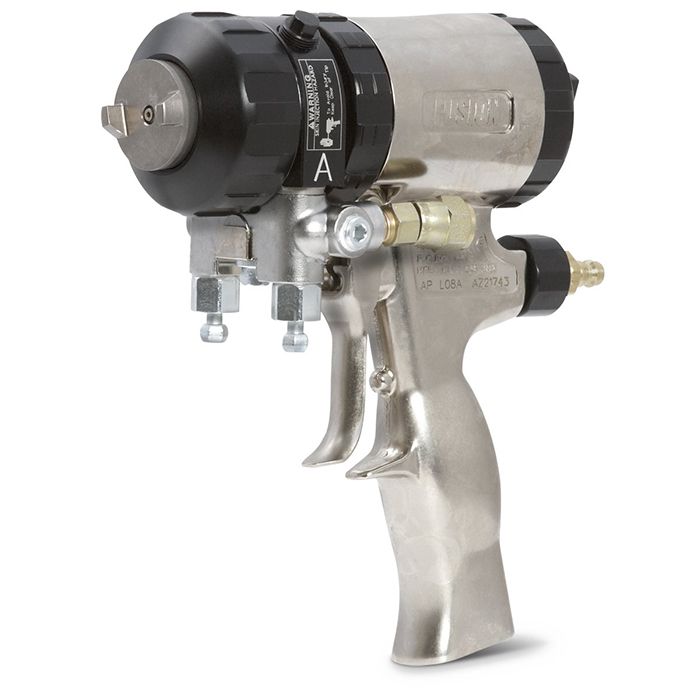

GUN FUSION
With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.
Loading Price
Part Number
246100
Easy air-blast tip cleaning reduces build-up and tip clogging. Long-lasting side seals means less downtime for maintenance Quick-release fluid housing - lets you easily change the mix chambers without tools Hand-tightened front cap - no tools needed to clean and maintain seals and mix chamber Ergonomic handle
Height | 6.75 |
---|---|
Length | 12.25 |
Long Description | Round Fusion Air-Purge Gun with 00 Mix Chamber and 0.029 in (0.74 mm) Orifice Size |
Application Text | For high output spray polyurethane foam and polyurea applications. |
Width | 11.75 |
Overall Height (in) | 8.1 |
Minimum Air Inlet Pressure (psi) | 80 |
Maximum Fluid Working Pressure (psi) | 3500 |
Maximum Fluid Pressure (psi) | 3500 |
Maximum Flow Rate @ PSI (lb/min) | 50 |
Overall Length (in) | 7.5 |
Overall Width (in) | 3.3 |
Pattern Size (in) | 8 in @ 24 in from target |
For Use With | Non-Flammable Foam and Polyurea |
Wetted Parts | Aluminum, Stainless Steel, Chemically Resistant O-Rings, Carbon Steel, Carbide |
Type | Spray Gun |
Trigger Type | Two-Finger |
Trigger Lock | Locking |
Spray Pattern | Round |
Spray Gun Mix Type | Impingement |
Sound Pressure Level (dB(A)) | 81.1 |
Sound Power Level (dB(A)) | 91 |
Purge Method | Air |
Includes | AR2929 Mix Chamber Tip |
Maximum Air Pressure (psi) | 130 |
Maximum Air Inlet Pressure (psi) | 130 |
Component Type | Plural-Component |
Component B Inlet Thread Type | UNF |
Component B Inlet Size (in) | 9/16-18 |
Component A Inlet Thread Type | UNF |
Component A Inlet Size (in) | 1/2-20 |
Compatible Material | Spray Polyurethane Foam, Polyurea, Polyurethane Coating, Polyurethane, Adhesives |
Applicator Type | Manual |
Air Inlet Thread Type | NPT |
Impingement Port Size (in) | 0.029 |
Gun Weight (oz) | 40 |
Gun Weight (lb) | 2.5 |
Gun Type | Air Purge Gun |
Gun Included | Yes |
Gun Activation | Manual |
Air Inlet Size (in) | 1/4 |
Fluid Orifice Size (in) | 0.029 |
Fluid Orifice Size (mm) | 0.74 |
