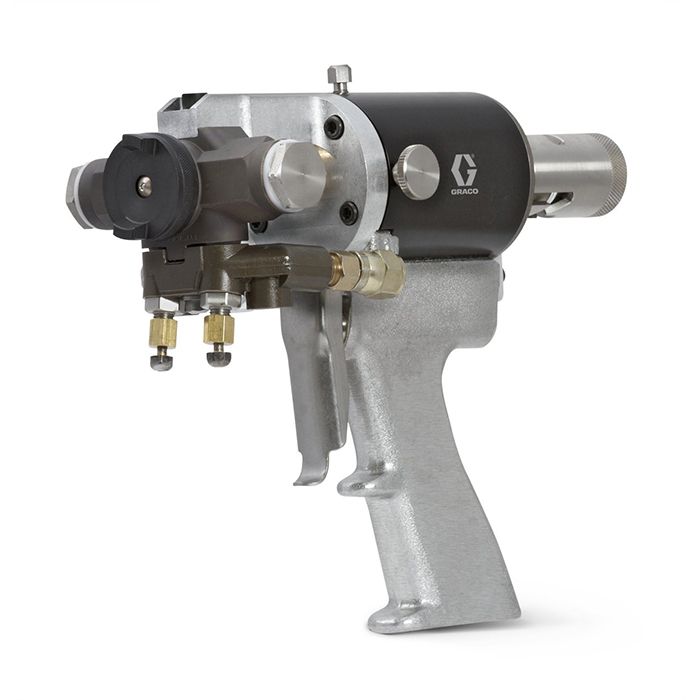

GUN GX7A-10/210
Graco’s GX-7 gun is the industries preferred roofing application gun. Ideal for concrete lifting applications since the mechanical-purge operation eliminates back pressure related issues.
Loading Price
Part Number
295543
A variety of mixing chamber sizes allows the operator to fine-tune the round spray pattern for virtually any application Lightweight, easy to operate and maintain Mechanically self-cleaning so you eliminate costly solvent-flushing Air cap allows for easy cleaning of the purge rod Lightweight design reduces operator fatigue Pattern control knob allows for fine tune adjustments
Height | 4.8 |
---|---|
Length | 15.6 |
Long Description | Gusmer GX-7A Spray Gun - 10/210 |
Application Text | Ideal for low to medium output foam applications. |
Width | 13.2 |
Minimum Flow Rate (lb/min) | 3.5 |
Overall Height (in) | 9.5 |
Minimum Air Inlet Pressure (psi) | 100 |
Maximum Fluid Working Pressure (psi) | 3500 |
Maximum Fluid Pressure (psi) | 3500 |
Maximum Flow Rate (lb/min) | 40 |
Overall Length (in) | 9 |
Overall Width (in) | 4.5 |
Pattern Size (in) | 22 in @ 18 in from target |
Wetted Parts | Aluminum, Stainless Steel, Plated Carbon Steel, Fluorocarbon O-Rings |
Type | Spray Gun |
Spray Pattern | Fan |
Spray Gun Mix Type | Impingement |
Purge Method | Mechanical |
Pressure Type | High Pressure |
Includes | Mix Module;Tip |
Maximum Air Pressure (psi) | 125 |
Maximum Air Inlet Pressure (psi) | 125 |
Component B Inlet Thread Type | UNF |
Component B Inlet Size (in) | 9/16 |
Component A Inlet Thread Type | UNF |
Component A Inlet Size (in) | 1/2-20 |
Compatible Material | Elastomeric Coating, Plural Component Protective Coating, Spray Polyurethane Foam, Polyurea, Polyurethane, Roof Coating |
Air Inlet Thread Type | NPT |
Gun Weight (oz) | 65.6 |
Gun Weight (lb) | 4.1 |
Gun Type | Mechanical-Purge |
Gun Included | No |
Gun Activation | Manual |
Air Inlet Size (in) | 1/4 |
