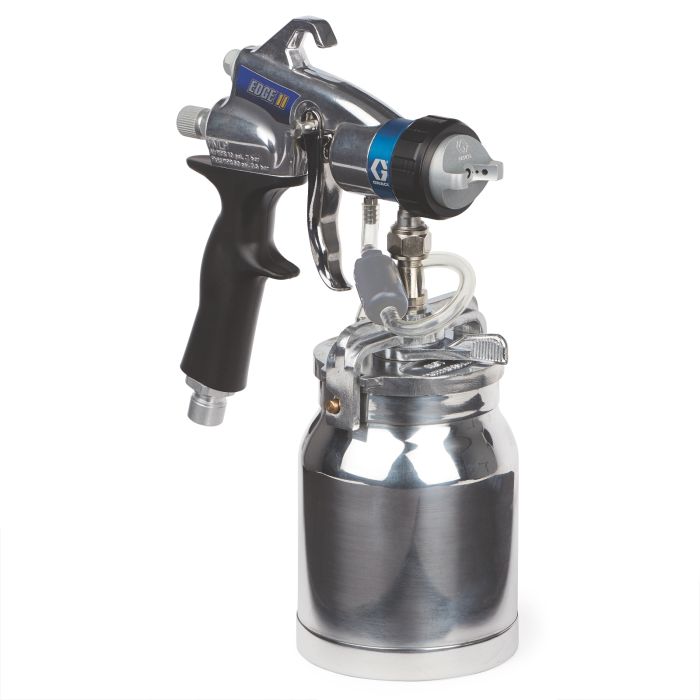

GUN, HVLP, EDGE II, CUP, PKGD GO BLUE
Maximize your spraying performance with the innovative HVLP EDGE II Gun. Cutting edge technology such as intuitive gun controls, Quick Release fluid set, and optimized air pressure and airflow will help you achieve the highest quality finish available in fine finish spraying.
Loading Price
Part Number
17P653
Integrated Flow Control
- Combines material and air flow into one simple control
- Optimized to spray the majority of fine finish applications
- Quick adjustment with 360° rotation and indicator for repeatable spray setting
- 3-position rotation to change spray pattern
- Conveniently located at the front of the gun
- Allows more air pressure into the material cup to spray heavier material
- Easily clean and reuse versus replace
- Located by gun to reduce clogged valves due to paint contamination
- Trigger has up to 75% lighter pull than competition
- 2-finger trigger design gives more control while spraying
- Form-fitted handle stays cool to the touch for extended use
- Change out needles from the front of the gun with just a click
- Easy to change, easy to clean with no tools needed
- Remove front air cap and nozzle
- Slide trigger lever to release needle
- Pull needle out
Height | 14 |
---|---|
Length | 5 |
Long Description | EDGE II Gun with Metal Cup |
Width | 9 |
Maximum Fluid Pressure (psi) | 50 |
For Use With | FinishPro HVLP Sprayers |
Type | Spray Gun |
Trigger Type | Two-Finger |
Spray Type | HVLP |
Sound Pressure Level (dB(A)) | 65 |
Sound Power Level (dB(A)) | 65.0 |
Includes | 1 qt (0.95 L) Metal Cup;#3 Quick Release Fluid Set |
Maximum Air Pressure (psi) | 10 |
Maximum Air Inlet Pressure (psi) | 13 |
Compatible Material | Stains, Latex, Enamel, Varnish |
Gun Weight (oz) | 20 |
Gun Type | HVLP Gun |
Gun Included | No |
Gun Activation | Manual |
