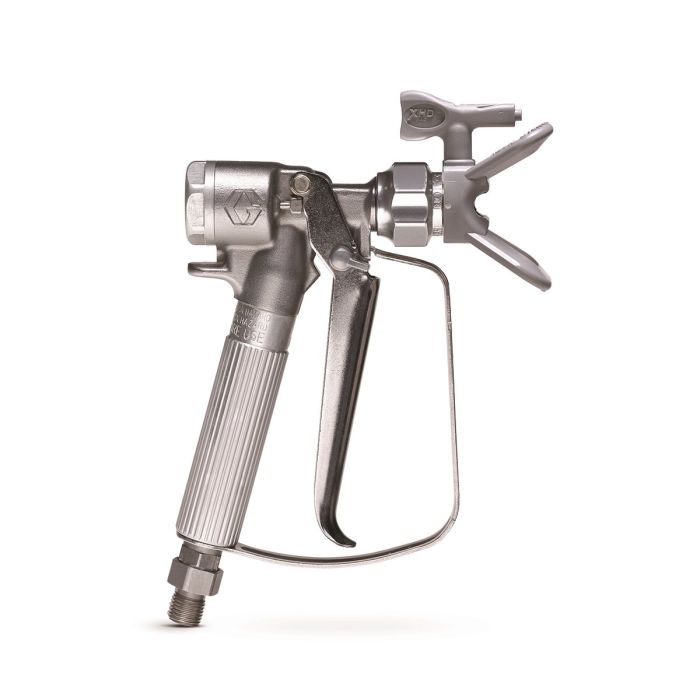

GUN,XTR7,1"RD,4 FNGR,FLAT TIP
Product replaced with XTR+, see part number XTR721.
Loading Price
Part Number
XTR701
Needle Assembly and GHD RAC SwitchTip
- Exceptional life, pattern and finish
- Great for high solids coatings
- Factory set needle needs no adjustments
Easy Out Gun Filter
- Reduces tip plugs
- Eliminates collapsed filters
- Provides more filtration area
EasyGlide Swivel
- Allows easier gun movement under high pressure
Trigger Guard
- Easily detaches for access to filter
- Acts as a wrench to remove filter from gun handle
- Small profile sprays in tight areas
The ideal choice for hard-to-spray industrial coatings
- Variety of handle and trigger options for maximum spraying comfort
- Compact design allows for easy access to tight places
- High quality materials and construction
- XTR-5 maximum fluid pressure: 5000 psi (345 bar, 34.5 MPa)
| Height | 2.3 |
|---|---|
| Length | 8.25 |
| Long Description | DISCONTINUED: XTR-7 Airless Spray Gun, 1 in. Round Handle, 4-Finger Trigger, Flat Tip |
| Application Text | Airless spray guns for protective coatings. |
| Width | 12.35 |
| Overall Height (in) | 7.1 |
| Maximum Fluid Working Pressure (psi) | 7250 |
| Maximum Fluid Pressure (psi) | 7250 |
| Overall Length (in) | 4.35 |
| For Use With | GH Big Rig Sprayers;Xtreme Airless Sprayers;XM Plural Component Sprayers |
| Wetted Parts | Aluminum, Stainless Steel, Nylon, Polyurethane, Polyethylene, Polypropylene, Solvent-Resistant O-Rings, Carbide, Acetal |
| Type | Spray Gun |
| Trigger Type | Four-Finger |
| Trigger Lock | Locking |
| Technology Type | N/A |
| Spray Type | Airless |
| Sound Pressure Level (dB(A)) | 84.3 |
| Sound Power Level (dB(A)) | 95.7 |
| Purge Method | Liquid |
| Includes | 519 flat tip |
| Compatible Material | Protective Coating Materials |
| Applicator Type | Manual |
| Gun Weight (oz) | 24 |
| Gun Weight (lb) | 1.5 |
| Gun Type | Airless Gun |
| Gun Included | No |
| Gun Activation | Manual |
| Fluid Inlet Thread Type | NPSM |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Orifice Size (in) | 0.09 |
| Fluid Orifice Size (mm) | 2.3 |
