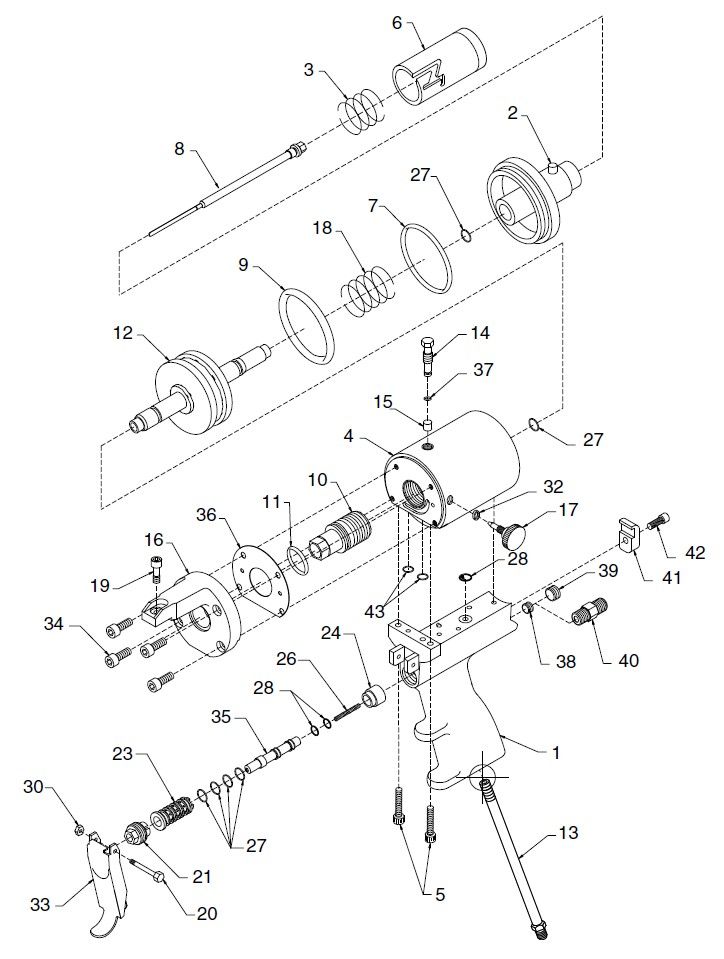

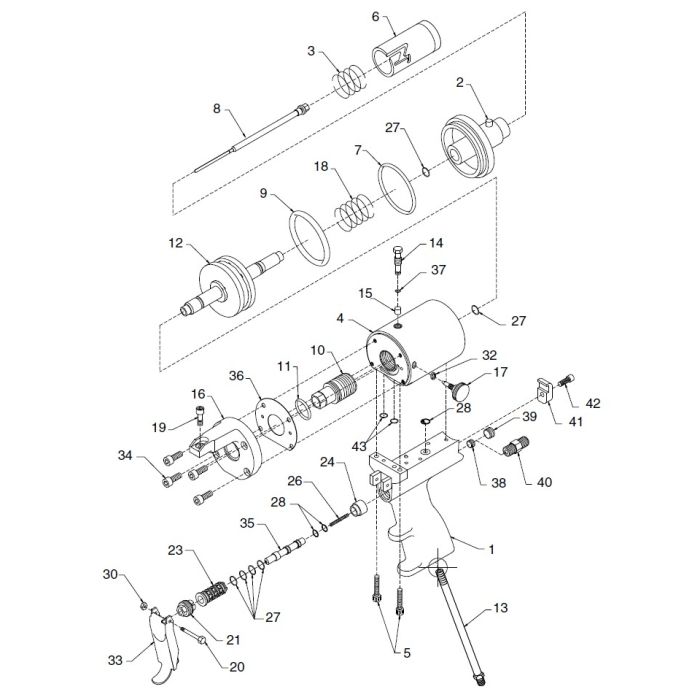

Associated Exploded View Parts

Related Exploded Parts View: GX-7A Repair Manual Related Exploded Parts View: GX-7 Manifold Manual
Part Number 311321T.38
Grouped product items
No. Part Number Product Name Price Qty
1 296862 KIT HANDLE,GUN
2 295662 PLUG PIPE
3 106555 PACKING, O-RING
5 295684 SCREW, SHC,10-32 X 5/8
6 295438 NUT STOP,ELASTIC 5-40
7 295685 O-RING
8 295405 PACKING, VALVE,NEEDLE
9 295692 TRIGGER GUN,SPRAY
10 295693 PLUG PIPE
11 C20003 SCREW,CAP, SOCKET HEAD
14 295676 SPRING
16 295681 O-RING
18 295683 O-RING
19 295663 STOP, FRONT,CYLINDER
20 514279 O-RING, 018 BUNA
21 295664 PISTON AIR
22 295665 FITTING NIPPLE,PIPE
23 295686 LINER, VALVE
24 295667 PELLET
25 295668 SPRING
26 296971 KIT, SPRING
27 295671 SCREW,MOUNTING,TRIGGER
28 C20988 PACKING, O-RING
29 295674 GASKET
30 295675 CYLINDER, AIR
31 295677 VALVE, NEEDLE,AIR
33 295690 CLAMP, CYLINDER
35 295687 SPOOL, VALVE
36 295688 NUT, RETAINER,VALVE
37 295689 SEAT, SPRING
39 295706 O-RING
40 103656 FITTING NIPPLE, PIPE, HEX
