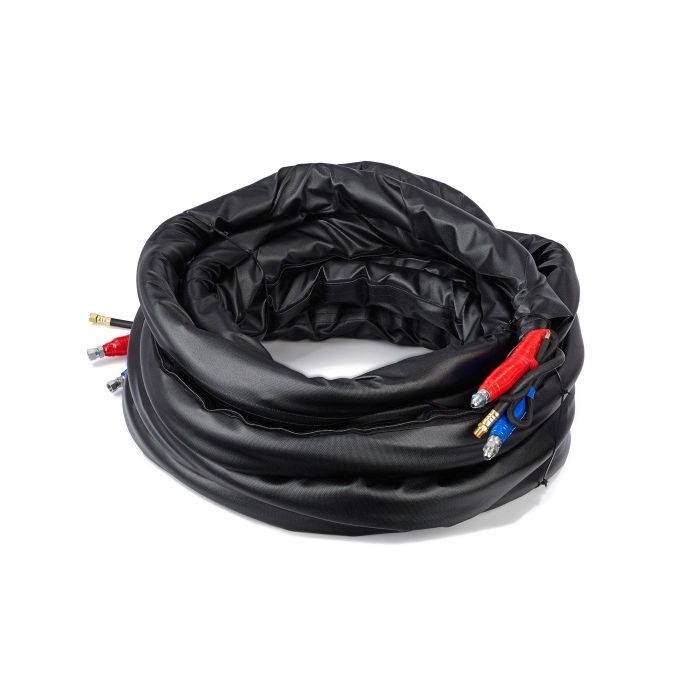

HOSE, HTD, X-WRAP, 3/8, 50'
Graco’s heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.
Loading Price
Part Number
24Y679
New multi-strand copper heating element has greatly increased hose quality:
- Provides 10-times* the flex life compared to previous flat copper heating element
- Long-term, even heating without hot spots
- Backwards compatible with existing Reactor heated hoses
New Xtreme-Wrap Scuff Guard
- Form fitting to the hose, no more baggy excess material
- Made from urethane coated ballistic nylon for puncture and tear resistance, abrasion protection, and oil and water resistance
- Sheds surface moisture and won't absorb water to weigh down the hose bundle; will not freeze solid in cold temperatures
- Hook and Loop enclosure used on the entire length of the hose for easy access to the hoses, fittings, and fluid temperature sensors
Joint Protectors
- Joint Protectors provide additional protection at the most vulnerable section of the hose: the electrical connections, hose fittings, and fluid temperature sensors. All 50 ft (15 m) hoses with the new Xtreme-Wrap will come with one Joint Protector.
Hose Inside Diameter (in) | 3/8 |
---|---|
Width | 27.6 |
Hose Length (ft) | 50 |
For Use With | Plural Component Proportioners |
Type | Hose Kit |
Standards Met | ETL Certified |
Maximum Working Pressure (psi) | 3500 |
Application Text | For Reactor proportioners. |
Height | 12 |
Long Description | 50 ft (15 m) High Pressure Heated Hose with Thermocouple Xtreme-Wrap Scuff Guard and 3/8 in (9.5 mm) Inside Diameter |
Length | 28.8 |
