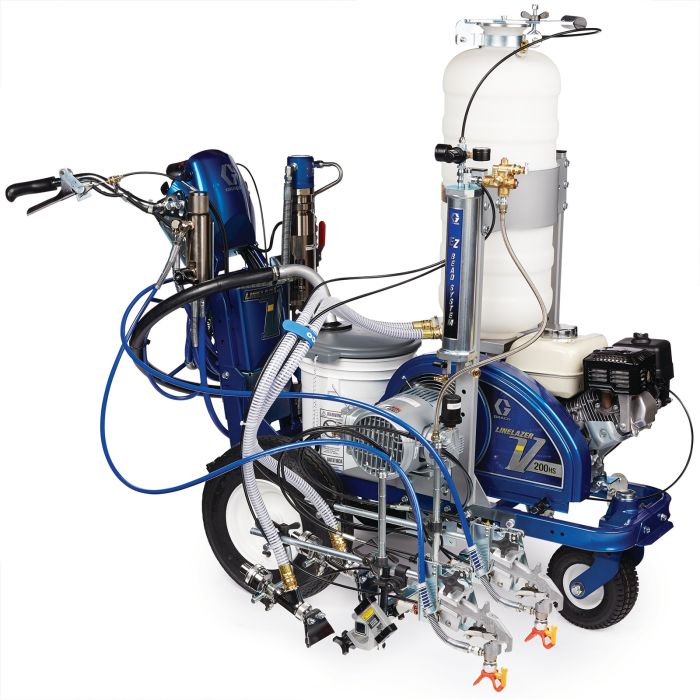

LINELAZER V, 200HS, 2 GUN, AT, PRE BEED
With high production features and bead capability, the LineLazer V 200HS HP Reflective Series is a true workhorse designed for high performance striping on the most demanding jobs like large parking lots, airports, and city jobs that require precise lines and reflective beads.
Checking stock status...
Part Number
17H465
Loading price...
$0.00
Description / LINELAZER V, 200HS, 2 GUN, AT, PRE BEED
Pressurized EZ Bead System
- Superior Bead Application Performance
- Ensures proper bead flow and paint penetration
- Dual bead tanks hold up to 120 lbs each
- Automatically Stripe Skip-Lines
- Reduce operator fatigue — push button line production
- Quality solenoid driven system
- Simplify Parking Lot Layout
- SmartControl measures while you walk and puts down pre-marks
- No need for measuring tape, string lines or aerosol cans
- Cuts your layout time in half
- Striping Information At-A-Glance
- Track, measure and control every aspect of your job
- Accessible proof-of-job data from the J-Log System with USB Download
- Consistent spraying pressure for perfect lines
- Valuable Job Information
- Proof of job = More striping opportunities.
- USB download capability allows you to capture and save all job data
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
- Perfect Striper Tracking
- Simple front wheel alignment, no special tools needed
- Easy Handlebar Adjustment
- Endurance Chromex Pump
- High-Efficiency Hydraulic Motor
- High-Capacity Cooling System
- QuikSelect Gun Selector
- Easy Out Pump Filter
- LazerGuide 1700 Start/Stop Laser
More Information
| Application Text | The HP Reflective Series adds superior bead application capability to the HP Automatic Series feature set, which includes automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements. |
|---|---|
| Description | LineLazer V 200HS HP Reflective Series Gas Hydraulic Airless Line Striper, 2 Auto Guns |
| Number of Guns | 2 |
| Number of Pumps | 1 |
| Power Rating (HP) | 6.5 |
| Power Rating (kW) | 4.85 |
| Power Rating (W) | 4850 |
| Pump Type | Endurance |
| Type | Walk-Behind Line Striper |
| Weight (lb) | 417 |
| Includes | Pressurized Bead System;LazerGuide 1700;Flex Plus Gun (2);LineLazer RAC 5 319 Spray Tip (2);LineLazer RAC 5 421 Spray Tip (2);RAC 5 Tip Guard (2);3/8 in x 22 ft BlueMax II Airless Hose;3/8 in x 3 ft BlueMax II Airless Whip Hose;TSL, 4 oz |
| Number of Colors | One Color |
| Maximum Working Pressure (psi) | 3300 |
| Bead Tank Size (lb) | 120 |
| Compatible Material | Road-Marking Paint |
| Compatible Surfaces | Pavement, Turf |
| Engine Brand | Honda |
| Engine Model | GX200 |
| Features | Bead Tank, Bead Embedment, Bead Pressurized System, Air Valves |
| Fuel Tank Capacity (gal) | 0.95 |
| Gun Activation | Automatic |
| Maximum Flow Rate (GPM) | 2.15 |
| Maximum Sound Pressure Level (dB(A)) | 85.5 |
| Maximum Tip Size (in) | 0.034 |
| Bead System | Pressurized Bead System |
| Requires Hazardous Shipping | No |
