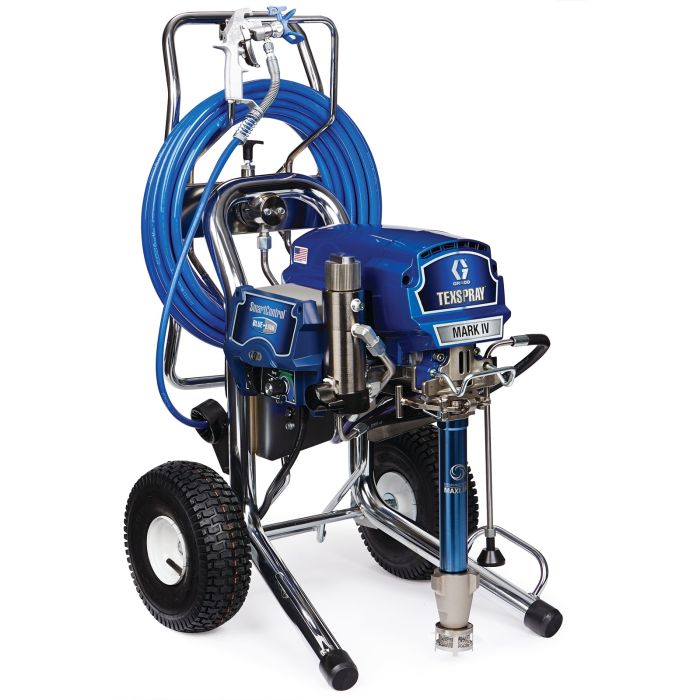

Mark IV ProContractor Sprayer Package
The TexSpray Mark IV is designed to save time and money by allowing you to spray more square footage in a day. Built for serious professional contractors, this unit includes must-have features to increase your productivity with all texture finishes, including the wide range of primers and paint.
Loading Price
Part Number
17E604
Endurance Vortex MaxLife Piston Pump
- Superior pump life
- Breakthrough vortex rotating rod technology
- Lasts 6X longer between repacks with innovative MaxLife technology
- Oversized passages for high velocity flow to rotate piston for even wear Longest life packings and piston rod Long life ceramic and stainless steel balls included for maximum versatility
- Less pack-out, more productivity
- Self-cleaning Vibra-Seal Technology eliminates material build-up
- Continuous spraying with True Pack-Out Protection for more productivity
- Optimized fluid passageways for the heaviest coatings
- Streamline your business
- Track every sprayer: Exact location & hourly productivity
- Know job progress: On demand productivity facts and reporting from anywhere
- Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
- Precision Pressure Control
- Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation
- ProGuard prevents electrical damage from extreme jobsite power conditions
- WatchDog Pump Protection System automatically prevents pump damage if material supply is too low
- Easy hose management
- Deploy and rewind up to 300 feet (90 meters) of hose in seconds
- No twisting, kinking, and coiling
- Use only the hose you need — the rest stays on the reel
- Eliminate costly downtime
- Exchange pump in minutes
- No tools, pins or parts to lose
- Fast cleaning now even FASTER
- Clean the pump 6X faster using ½ the water
- High-velocity fluid flow delivered with 60% higher motor speed
- Durable filtration
- Stands up to harsh impacts to maintain even flow through filter
- Proven power and performance for all painting applications
- High-torque brushless design with a Lifetime Warranty
- The longest lasting drive
- Hardened steel gears provide extremely quiet operation and a lifetime warranty
- WatchDog Pump Protection System
- Easy Out Filter Manifold
- Heavy-Duty Prime Valve
- Rugged, Durable Cart Design
Extended Desc | 17E604 Mark IV ProContractor |
---|---|
Long Description | Small 110V Electric Airless Sprayers are great for small jobs, tough-up or mock-ups. Graco's TexSray Mark IV/Mark V utilizes a dropped inlet housing that allows it to spray or pressure roll extremely thick coatings from 5-gallon pails. ProContractor models include built in hose reel and digital display. |
Application Text | Work Smarter, Finish More Jobs. TexSpray Mark ProContractor Series electric airless texture sprayers are designed to deliver speed & performance so you can get to the next jobsite faster and increase your profits. |
Length | 27.5 |
Height | 42 |
Width | 33 |
Number of Guns | 1 |
Overall Height (in) | 39 |
Overall Length (in) | 29.5 |
Overall Width (in) | 22.5 |
Maximum Tip Size Gun 1 (in) | 0.033 |
Maximum Working Pressure (psi) | 3300 |
Minimum Generator Power (W) | 5000 |
Motor Type | MaxPower |
Power Rating (HP) | 2.2 |
Power Rating (kW) | 1.64 |
Type | Airless Sprayer |
Volume Per Cycle (cycles/gal) | 195 |
Weight (lb) | 119 |
Wetted Material | Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, PEEK, Stainless Steel, Brass, Aluminum, UHMWPE, Leather, Tungsten Carbide, Acetal, PTFE, Nylon |
Recommended Annual Usage | 100-200 gallons per week |
Power Rating (W) | 1640.5 |
Power Source | Electric |
Pressure Control Type | SmartControl 4.0 |
Pump Mount Type | ProConnect 2 |
Pump Rod Type | MaxLife |
Pump Sleeve Material | MaxLife |
Includes | FlexPlus Gun;RAC X LTX 425 Spray Tip;RAC X Guard;3/8 in x 50 ft BlueMax II Airless Hose;1/4 in x 3 ft BlueMax II Airless Whip Hose |
Amperage (A) | 15 |
Convertible | Non-Convertible |
Features | Heavy-Duty Prime Valve, WatchDog, Endurance Vortex MaxLife Pump, MaxPower Brushless, MaxFlo 2, FastFlush 2, Crushproof Inlet Strainer, Easy Out Filter, QuikReel, BlueLink System, Advantage Drive, ProConnect 2, SmartControl 4.0 |
Compatible Replacement Pump | 17H832 |
Fluid Outlet Size (in) | 3/8 |
Fluid Outlet Thread Type | NPSM |
Maximum Flow Rate (GPM) | 1.1 |
Maximum Sound Pressure Level (dB(A)) | 82 |
Hose Reel Type | QuikReel |
Frame Configuration | Hi-Boy |
Gun Included | No |
Maximum Tip Size (in) | 0.033 |
