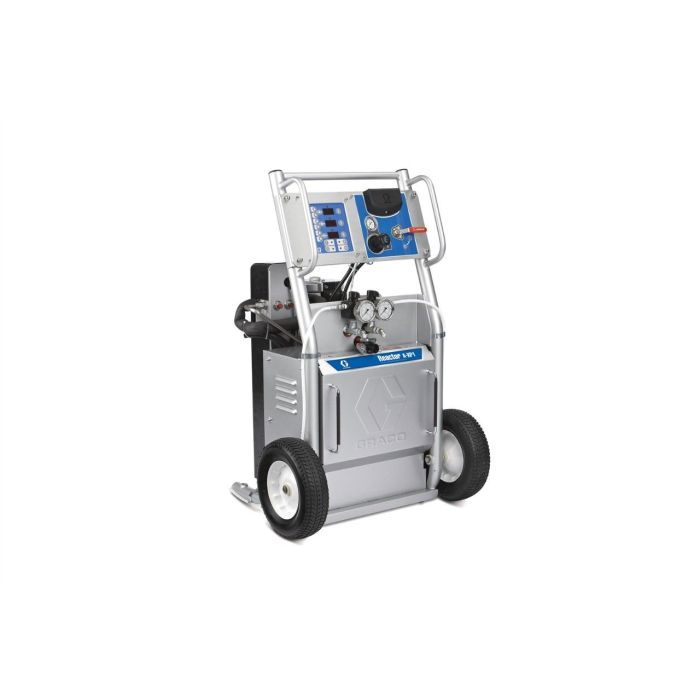

Reactor A-XP1 Bare Proportioner, Graco
The Reactor A-XP1 is a Graco-engineered coatings proportioner that gives you the reliability you expect on the jobsite. It maintains consistent temperature control, even when you're spraying at maximum flow rates – resulting in better quality coating.
Checking stock status...
Part Number
24Y164
Loading price...
$0.00
Description / Reactor A-XP1 Bare Proportioner, Graco
Maintains temperature setpoints for better yield Maintains consistent output pressure for uniform spray pattern Easy to operate and maintain Best choice for affordability and durability
Three Heat Zones
- Three independent heat zones – ISO, resin and hose heat
- Provide accurate heat control for reliable spraying to handle different chemical viscosities
- Digital temperature controls
Three Heat Zones
- Three independent heat zones – ISO, resin and hose heat
- Provide accurate heat control for reliable spraying to handle different chemical viscosities
- Digital temperature controls
Recirculation Manifold
- A quick, easy way to balance system pressures
NXT Air Motor
- Low air consumption for increased efficiency
- Muffler provides low operating noise levels
- Air valve provides smooth and rapid changeover
ISO Pump Lube System
- Prevents isocyanate crystallization on the pump seal and shaft
Hybrid Heater
- Provides better temperature control
Quick Knockdown Pumps
- Allows for easy service
- Fast disassembly
More Information
| Maximum Flow Rate (GPM) | 1.5 |
|---|---|
| Maximum Fluid Viscosity (cP) | 1500 |
| Maximum Hose Length (ft) | 210 |
| Maximum Mix Ratio | 1:1 |
| Maximum Working Pressure (psi) | 3500 |
| Minimum Fluid Viscosity (cP) | 250 |
| Maximum Air Inlet Pressure (psi) | 125 |
| Flush Type | Solvent |
| Frequency (Hz) | 50/60 |
| Material Application | Polyurea |
| Maximum Air Consumption (SCFM) | 32 scfm at 2000 psi |
| Pump Filter Included | No |
| Remote Mix Manifold Included | No |
| Sound Power Level (dB(A)) | 80.1 |
| Sound Pressure Level (dB(A)) | 70.2 |
| Type | Proportioning System |
| Weight (lb) | 310 |
| Wetted Material | Stainless Steel, Carbon Steel, Aluminum, Chrome, PTFE, Fluoroelastomer, Nylon |
| Primary Fluid Heater Included | No |
| Pressure Type | High Pressure |
| Overall Depth (in) | 24.5 |
| Overall Height (in) | 43.5 |
| Overall Width (in) | 21.5 |
| Phase | 1, 3 |
| Power Rating (HP) | 17.43 |
| Power Rating (kW) | 13 |
| Power Rating (W) | 13000 |
| Power Source | Air |
| Includes | Proportioner;Heated Hose |
| Description | Reactor A-XP1 Bare Proportioner |
| Application Text | For polyurea coatings – applies up to 1.5 gal (5.7 L) per minute. |
| Compatible Material | Plural Components |
| Component A Inlet Size (in) | 3/4 |
| Component A Thread Gender | Female |
| Component A Thread Type | NPT |
| Component B Inlet Size (in) | 3/4 |
| Component B Thread Gender | Female |
| Component B Thread Type | NPT |
| Component Type | Two Component |
| Applicator Type | Manual |
| Air Inlet Size (in) | 1/2 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Amperage (A) | 26 @ 380 V ac (3-Phase WYE);45 @ 230 V ac (3-Phase Delta);56 @ 230 V ac (1-Phase) |
| Application | Protective Coatings |
| Requires Hazardous Shipping | No |
