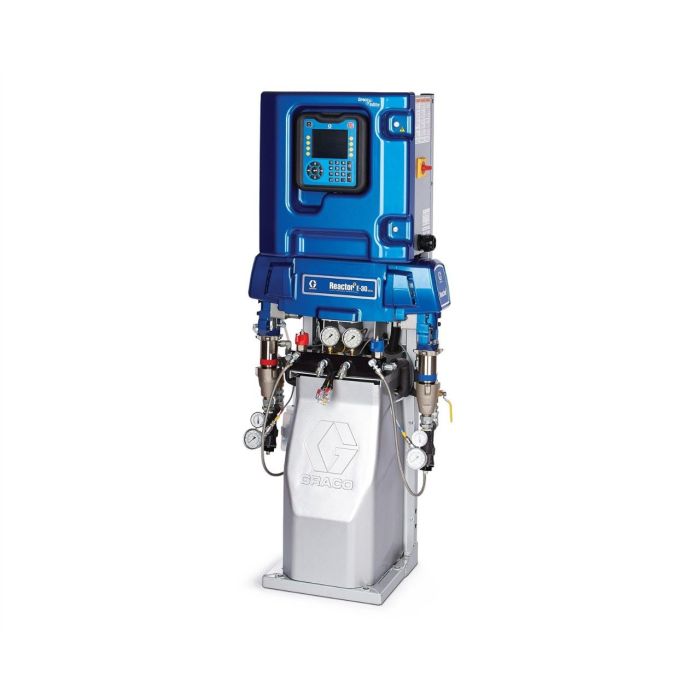

Reactor 2 E-XP2 Elite Proportioner, Graco
Count on the Reactor 2 E-XP2 proportioner for advanced technology in applying fast-curing polyurea coatings. Because it's a Reactor 2 series proportioner, it offers software and hardware enhancements for better spray performance, plus technologies that add to your bottom line. The Reactor 2 E-XP2 is engineered to process and spray polyurea and other coatings that require high pressures. The hybrid heater and heated hose condition the materials to the right viscosity prior to mixing. Quick knockdown lower pump for easy maintenance, easy-to-use controls, and rugged design make the Reactor the preferred choice for coatings applications.
Checking stock status...
Part Number
272112
Loading price...
$0.00
Description / Reactor 2 E-XP2 Elite Proportioner, Graco
Reactor 2 E-XP2 gives you:
- Compact footprint - more room in your spray rig
- Ergonomic design - easier to service
- Advanced control modules
- Better spraying performance compared to traditional electric Reactor systems
- Troubleshooting made quick and easy with QR codes
Reactor Connect : Communication and Control at your Fingertips
- Control your Reactor using your phone
- Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
- Monitor your rigs/crews using the multi-system dashboard
- Troubleshoot an issue quickly using real-time data
- Provide documentation to a customer
- Use reports to better manage your business
- Saves all your spray data to the cloud
- Utilize account management to better manage your equipment and crews
- Reactor Connect comes standard with all Reactor 2 models
Advanced control technology
- Tracks, monitors and saves project data
- Data can be saved and downloaded onto a USB drive
- Stores up to 24 chemical recipes
- Drum level indicators
Quick and easy troubleshooting thanks to QR code shortcuts
- Results in less downtime
Easy to reach, conveniently-placed electronics
Advanced control modules
- Handles power fluctuations
Sacrificial surge protector
- Protects your electronics against excessive power spikes
Smooth, consistent spray performance - similar to hydraulic systems
Three-year warranty
- Covers user display module, control modules and electric motor
- One of the best in the industry
Reactor Elite models include:
- Inlet pressure and temperature sensor
- Xtreme-Wrap Scuff Guard on heated hoses for Reactor 2 packages
More Information
| Maximum Flow Rate (GPM) | 2 |
|---|---|
| Maximum Hose Length (ft) | 310 |
| Maximum Mix Ratio | 1:1 |
| Maximum Working Pressure (psi) | 3500 |
| Flush Type | Solvent |
| Frequency (Hz) | 50/60 |
| Hose Length (ft) | 50;10 |
| Material Application | Polyurea |
| Pump Filter Included | No |
| Remote Mix Manifold Included | No |
| Resin Inlet Size (in) | 3/4 |
| Resin Inlet Thread Gender | Female |
| Resin Inlet Thread Type | NPSM |
| Sound Pressure Level (dB(A)) | 79.6 |
| Type | Proportioning System |
| Wetted Material | Zinc-Plated Carbon Steel, Stainless Steel, Carbide, Brass, Chemically Resistant O-Rings, Aluminum, UHMWPE, Chrome, PTFE |
| Primary Fluid Heater Included | No |
| Pressure Type | High Pressure |
| Overall Depth (in) | 15 |
| Overall Height (in) | 63 |
| Overall Width (in) | 26.3 |
| Power Rating (HP) | 20.52 |
| Power Rating (kW) | 15.3 |
| Power Rating (W) | 15300 |
| Power Source | Electric |
| Description | Reactor 2 E-XP2 Elite Proportioner |
| Application Text | Next generation technology for polyurea coatings. |
| Compatible Material | Plural Components |
| Component Type | Two Component |
| Applicator Type | Manual |
| Amperage (A) | 35 @ 350 to 415 V ac (3-Phase WYE);62 @ 200 to 240 V ac (3-Phase Delta);100 @ 200 to 240 V ac (1-Phase) |
| Application | Protective Coatings |
| Requires Hazardous Shipping | No |
