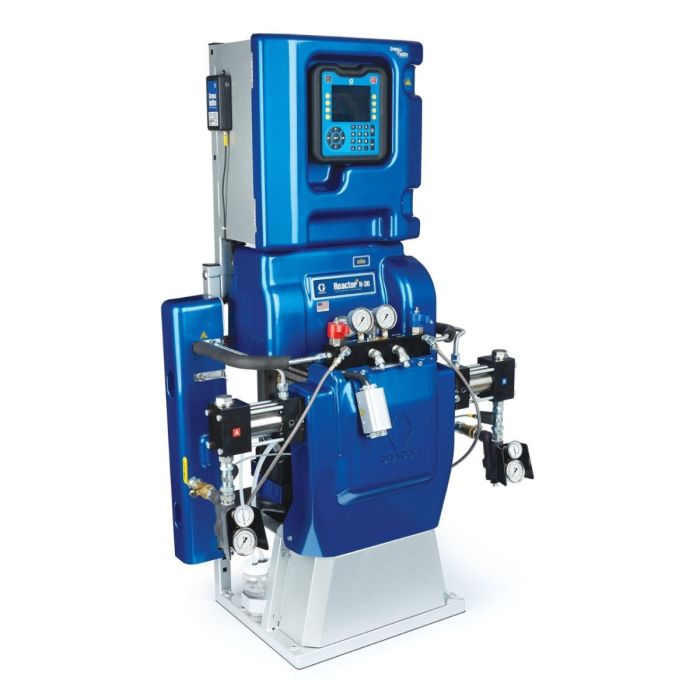

Reactor 2 H-XP3 Polyurea Proportioner Systems
Graco's hydraulic Reactor H-XP3 brings increased yield and high output spraying. Ideal for in-plant OEM's or applicators that spray at high volumes.
Checking stock status...
Part Number
Reactor 2 H-XP3 Polyurea Proportioner Systems
Description / Reactor 2 H-XP3 Polyurea Proportioner Systems
Reactor 2 H-XP3 Polyurea Proportioner System by Graco
High-Pressure Polyurea Spray Equipment
The Reactor 2 H-XP3 Polyurea Proportioner System by Graco is engineered for professional contractors who require consistent, high-pressure performance for polyurea and protective coating applications. Designed with advanced heating technology and precise electronic ratio control, the H-XP3 ensures accurate material proportioning, optimal viscosity, and superior spray quality. Its powerful output makes it ideal for demanding projects such as secondary containment, tank linings, waterproofing membranes, truck bed liners, and industrial floor coatings. Built for durability and jobsite reliability, the Reactor 2 H-XP3 enhances productivity, reduces material waste, and delivers uniform coating thickness to meet strict project specifications in harsh environments.
Available Options:
Reactor 2 H-XP3 Proportioner Package, (6) Heated Hoses with Scuff Guard, 20 kW, 230 V, 3PH EHH074
Reactor 2 H-XP3 Proportioner Package, Heated Hose with Scuff Guard, 20 kW, 400 V, 3PH EHH076
Reactor 2 H-XP3 Elite Proportioner Package, (6) Heated Hoses with Scuff Guard, 20 kW, 230 V, 3PH EHH174
Reactor 2 H-XP3 Elite Proportioner Package, (6) Heated Hoses with Scuff Guard, 20 kW, 400 V, 3PH EHH176
Reactor 2 H-XP3 Proportioner Package, Heated Hose with Scuff Guard, 20 kW, 230 V, 3PH ESH074
Reactor 2 H-XP3 Proportioner Package, Heated Hose with Scuff Guard, 20 kW, 400 V, 3PH ESH076
Reactor 2 H-XP3 Elite Proportioner Package, Heated Hose with Scuff Guard, 20 kW, 230 V, 3PH ESH174
Reactor 2 H-XP3 Elite Proportioner Package, Heated Hose with Scuff Guard, 20 kW, 400 V, 3PH ESH176
More Information
| Maximum Flow Rate (GPM) | 2.8 |
|---|---|
| Maximum Hose Length (ft) | 410 |
| Maximum Mix Ratio | 1:1 |
| Maximum Working Pressure (psi) | 3500 |
| Flush Type | Solvent |
| Frequency (Hz) | 50/60 |
| Material Application | Polyurea |
| Pump Filter Included | No |
| Remote Mix Manifold Included | No |
| Resin Inlet Size (in) | 3/4 |
| Resin Inlet Thread Gender | Female |
| Resin Inlet Thread Type | NPT |
| Sound Pressure Level (dB(A)) | 82.6 |
| Type | Proportioning System |
| Wetted Material | Zinc-Plated Carbon Steel, Stainless Steel, Brass, Aluminum, UHMWPE, Chrome, PTFE, Fluoroelastomer |
| Primary Fluid Heater Included | No |
| Pressure Type | High Pressure |
| Overall Depth (in) | 20.88 |
| Overall Height (in) | 63.3 |
| Overall Width (in) | 32.96 |
| Power Rating (HP) | 26.82 |
| Power Rating (kW) | 20 |
| Power Rating (W) | 20000 |
| Power Source | Hydraulic |
| Includes | Elite Kit |
| Item Description | Reactor 2 H-XP3 Polyurea Proportioner Systems |
| Compatible Material | Plural Components |
| Component Type | Two Component |
| Applicator Type | Manual |
| Amperage (A) | 52 @ 350 to 415 V ac (3-Phase WYE) |
| Application | Protective Coatings |
| Requires Hazardous Shipping | No |
