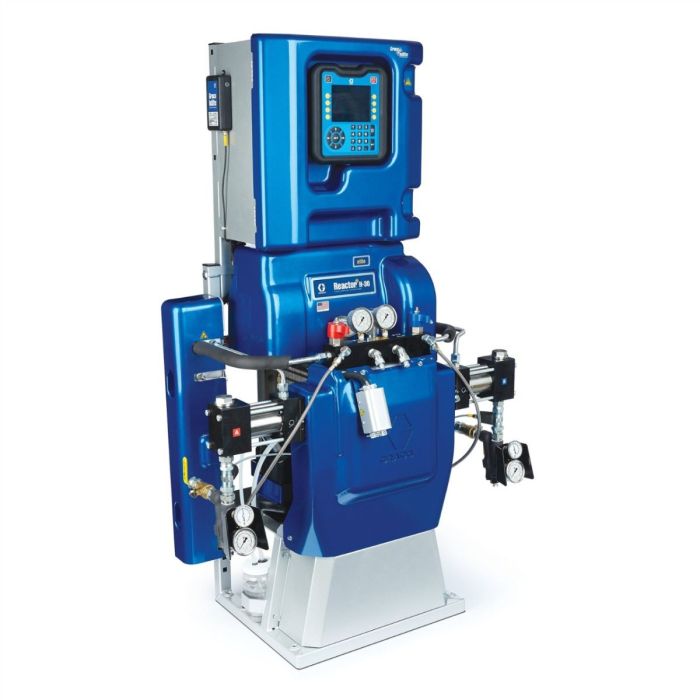

Reactor 2 H-XP3 Elite Proportioner, 20 kW, 400 V, Graco
Graco's hydraulic Reactor H-XP3 brings increased yield and high output spraying. Ideal for in-plant OEM's or applicators that spray at high volumes.
Checking stock status...
Part Number
17H176
Loading price...
$0.00
Description / Reactor 2 H-XP3 Elite Proportioner, 20 kW, 400 V, Graco
What a hydraulic system can do for you:
- Dependability - robust, durable, longest life spray system
- Reduce downtime - allows for longer time in between required maintenance
- Increase daily productivity - capable of extremely high duty cycle
Reactor Connect : Communication and Control at your Fingertips
- Control your Reactor using your phone
- Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
- Monitor your rigs/crews using the multi-system dashboard
- Troubleshoot an issue quickly using real-time data
- Provide documentation to a customer
- Use reports to better manage your business
- Saves all your spray data to the cloud
- Utilize account management to better manage your equipment and crews
- Reactor Connect comes standard with all Reactor 2 models
Advanced control technology
- Tracks, monitors and saves project data
- Data can be saved and downloaded onto a USB drive
- Stores up to 24 chemical recipes
- Drum level indicators
Quick and easy troubleshooting thanks to QR code shortcuts
- Results in less downtime
Sacrificial surge protector
- Protects your electronics against excessive power spikes
Three-year warranty
- Covers user display and control modules
- One of the best in the industry
Elite Models
- Graco InSite included
- Inlet pressure and temperature sensors (interfaces with Graco InSite)
- Xtreme-Wrap Scuff Guard on heated hoses when ordered as a package
More Information
| Maximum Flow Rate (GPM) | 2.8 |
|---|---|
| Maximum Hose Length (ft) | 410 |
| Maximum Mix Ratio | 1:1 |
| Maximum Working Pressure (psi) | 3500 |
| Flush Type | Solvent |
| Frequency (Hz) | 50/60 |
| Material Application | Polyurea |
| Pump Filter Included | No |
| Remote Mix Manifold Included | No |
| Resin Inlet Size (in) | 3/4 |
| Resin Inlet Thread Gender | Female |
| Resin Inlet Thread Type | NPT |
| Sound Pressure Level (dB(A)) | 82.6 |
| Type | Proportioning System |
| Wetted Material | Zinc-Plated Carbon Steel, Stainless Steel, Brass, Aluminum, UHMWPE, Chrome, PTFE, Fluoroelastomer |
| Primary Fluid Heater Included | No |
| Pressure Type | High Pressure |
| Overall Depth (in) | 20.88 |
| Overall Height (in) | 63.3 |
| Overall Width (in) | 32.96 |
| Power Rating (HP) | 26.82 |
| Power Rating (kW) | 20 |
| Power Rating (W) | 20000 |
| Power Source | Hydraulic |
| Includes | Elite Kit |
| Extended Desc | Graco's hydraulic Reactor H-XP3 brings increased yield and high output spraying. Ideal for in-plant OEM's or applicators that spray at high volumes. For coatings that require high-pressures - applies up to 2.8 gal (10.6 liters) per minute. What a hydraulic system can do for you: Dependability - robust, durable, longest life spray system Reduce downtime - allows for longer time in between required maintenance Increase daily productivity - capable of extremely high duty cycle Reactor Connect : Communication and Control at your Fingertips Control your Reactor using your phone Improve productivity and yield by optimizing spray parameters and never having to go back to your rig Monitor your rigs/crews using the multi-system dashboard Troubleshoot an issue quickly using real-time data Provide documentation to a customer Use reports to better manage your business Saves all your spray data to the cloud Utilize account management to better manage your equipment and crews Reactor Connect comes standard with all Reactor 2 models Advanced control technology Tracks, monitors and saves project data Data can be saved and downloaded onto a USB drive Stores up to 24 chemical recipes Drum level indicators Quick and easy troubleshooting thanks to QR code shortcuts Results in less downtime Sacrificial surge protector Protects your electronics against excessive power spikes Three-year warranty Covers user display and control modules One of the best in the industry Elite Models Graco InSite included Inlet pressure and temperature sensors (interfaces with Graco InSite) Xtreme-Wrap Scuff Guard on heated hoses when ordered as a package |
| Description | Reactor 2 H-XP3 Elite Proportioner, 20 kW, 400 V |
| Application Text | For coatings that require high-pressures - applies up to 2.8 gal (10.6 liters) per minute. Graco's line of hydraulic Reactors brings increased yield and high output spraying. Ideal for in-plant OEM's or applicators that spray at high volumes. |
| Compatible Material | Plural Components |
| Component Type | Two Component |
| Applicator Type | Manual |
| Amperage (A) | 52 @ 350 to 415 V ac (3-Phase WYE) |
| Application | Protective Coatings |
| Requires Hazardous Shipping | No |
