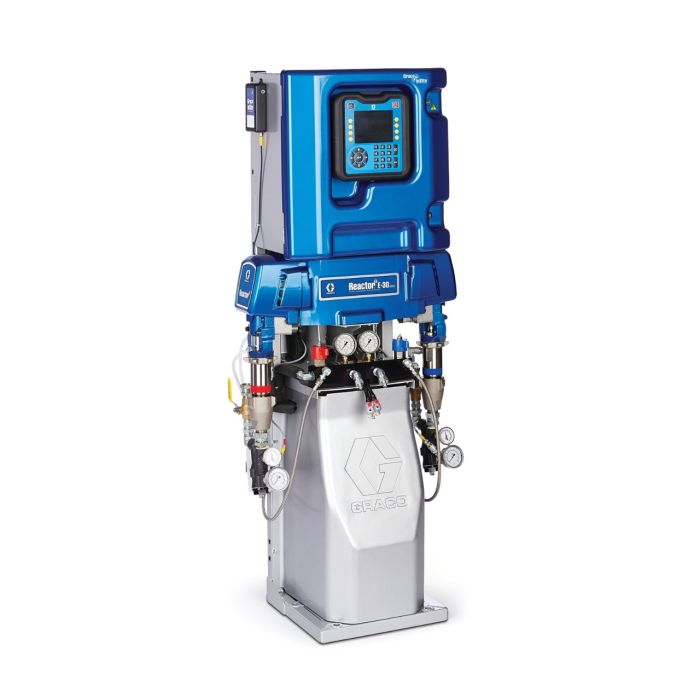

REACTOR 2 EXP-2 ELITE
Count on the Reactor 2 E-XP2 proportioner for advanced technology in applying fast-curing polyurea coatings. Because it's a Reactor 2 series proportioner, it offers software and hardware enhancements for better spray performance, plus technologies that add to your bottom line. The Reactor 2 E-XP2 is engineered to process and spray polyurea and other coatings that require high pressures. The hybrid heater and heated hose condition the materials to the right viscosity prior to mixing. Quick knockdown lower pump for easy maintenance, easy-to-use controls, and rugged design make the Reactor the preferred choice for coatings applications.
Reactor 2 E-XP2 gives you:
- Compact footprint - more room in your spray rig
- Ergonomic design - easier to service
- Advanced control modules
- Better spraying performance compared to traditional electric Reactor systems
- Troubleshooting made quick and easy with QR codes
Reactor Connect : Communication and Control at your Fingertips
- Control your Reactor using your phone
- Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
- Monitor your rigs/crews using the multi-system dashboard
- Troubleshoot an issue quickly using real-time data
- Provide documentation to a customer
- Use reports to better manage your business
- Saves all your spray data to the cloud
- Utilize account management to better manage your equipment and crews
- Reactor Connect comes standard with all Reactor 2 models
Advanced control technology
- Tracks, monitors and saves project data
- Data can be saved and downloaded onto a USB drive
- Stores up to 24 chemical recipes
- Drum level indicators
Quick and easy troubleshooting thanks to QR code shortcuts
- Results in less downtime
Easy to reach, conveniently-placed electronics
Advanced control modules
- Handles power fluctuations
Sacrificial surge protector
- Protects your electronics against excessive power spikes
Smooth, consistent spray performance - similar to hydraulic systems
Three-year warranty
- Covers user display module, control modules and electric motor
- One of the best in the industry
Reactor Elite models include:
- Inlet pressure and temperature sensor
- Xtreme-Wrap Scuff Guard on heated hoses for Reactor 2 packages
Fluid Inlet Size (in) | 3/4 |
---|---|
Maximum Flow Rate (GPM) | 2 |
Maximum Mix Ratio | 1:1 |
Maximum Working Pressure (psi) | 3500 |
Fluid Inlet Thread Gender | Female |
Fluid Inlet Thread Type | NPT |
Flush Type | Solvent |
Frequency (Hz) | 50/60 |
Gun Type | Fusion AP |
Hose Length (ft) | 50;10 |
Material Application | Polyurea |
Remote Mix Manifold Included | No |
Sound Power Level (dB(A)) | 83.5 |
Sound Pressure Level (dB(A)) | 73.6 |
Type | Proportioning Package |
Weight (lb) | 350 |
Wetted Material | Zinc-Plated Carbon Steel, Stainless Steel, Carbide, Brass, Chemically Resistant O-Rings, Aluminum, UHMWPE, Chrome, PTFE |
Pump Filter Included | No |
Primary Fluid Heater Included | No |
Pressure Type | High Pressure |
Overall Depth (in) | 15 |
Overall Height (in) | 63 |
Overall Width (in) | 26.3 |
Phase | 1, 3 |
Power Rating (kW) | 15 |
Power Source | Electric |
Includes | Proportioner;Fusion AP Gun;Heated Hose with Xtreme-Wrap;Heated Whip Hose;Graco Insite;Fluid Inlet Sensors |
Length | 0 |
Long Description | Reactor 2 E-XP2 Elite Proportioner, Fusion AP Gun, Heated Hose with Xtreme-Wrap, 230/400 V |
Height | 0 |
Application Text | Next generation technology for polyurea coatings. |
Applicator Type | Manual |
Compatible Material | Plural Components |
Component A Inlet Size (in) | 1/2 |
Component A Thread Type | JIC |
Component B Outlet Size (in) | 5/8 |
Component B Thread Type | JIC |
Component Type | Two Component |
Application | Protective Coatings |
Amperage (A) | 35 @ 350 to 415 V ac (3-Phase WYE);62 @ 200 to 240 V ac (3-Phase Delta);100 @ 200 to 240 V ac (1-Phase) |
Width | 0 |
