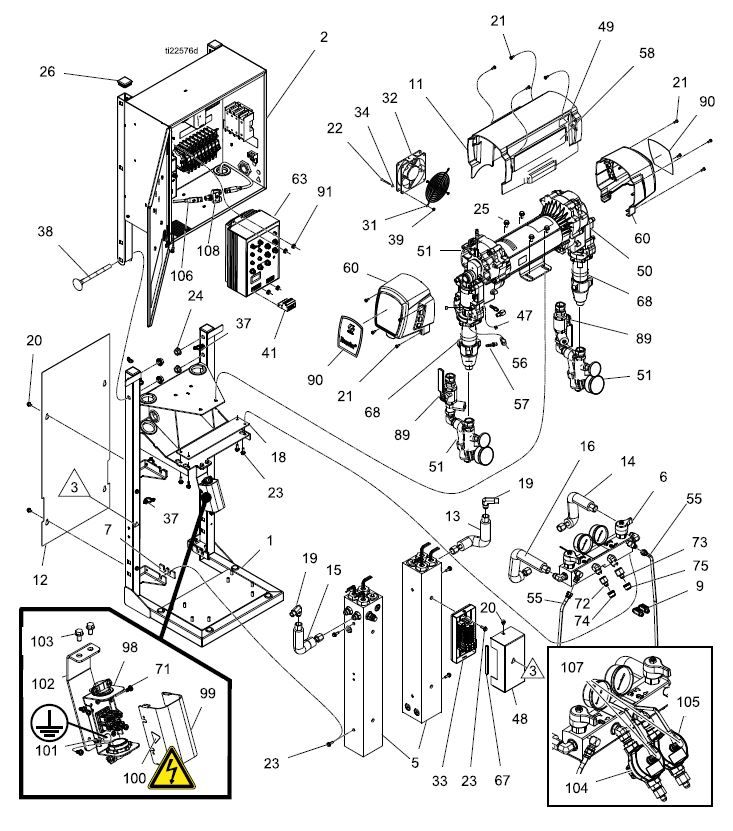

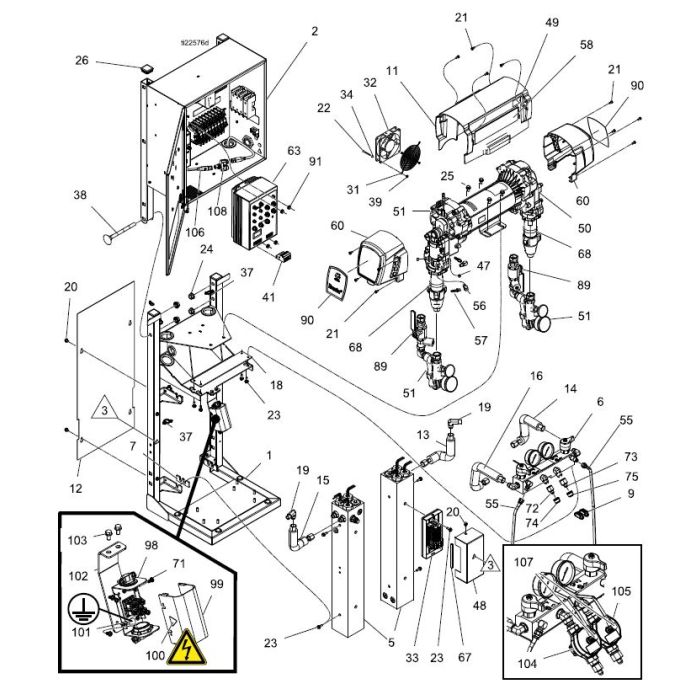

Associated Exploded View Parts

Related Exploded Parts View: Reactor R2 Repair Manual Related Exploded Parts View: R2 Electric Pumps Motor Related Exploded Parts View: R2 Electric Heater Block Related Exploded Parts View: R2 Electric Flow Meter E-30 Related Exploded Parts View: R2 Electric Flow Meter EXP-2 Related Exploded Parts View: R2 Electric Manifold Related Exploded Parts View: R2 Electric Cabinet Related Exploded Parts View: R2 Electric Cabinet Related Exploded Parts View: R2 Electric Cabinet Related Exploded Parts View: R2 Electric Cabinet Related Exploded Parts View: R2 Electric Cabinet Related Exploded Parts View: R2 Electric Inlet
Part Number 333024R.79
Grouped product items
No. Part Number Product Name Price Qty
3 246995 BOTTLE ASSY,COMPLETE
4 16X531 BRACKET, PAINTED, TSL, BOTTLE
5 24U842 KIT, HEATER, 7.5KW, 1 ZONE, RTD
7 16W654 INSULATOR, FOAM, HEATER
8 24R684 COVER, TRANSFORMER
9 261821 CONNECTOR,WIRE,6AWG
10 24U841 KIT, HEATER SHROUD
11 16W765 COVER,PAINTED,MOTOR
12 16W764 COVER,PAINTED,HEATER,REAR
13 24U838 KIT, FLUID TUBE, B, INLET
14 24U840 KIT, FLUID TUBE, B, OUTLET
15 24U833 KIT, FLUID TUBE, A, INLET
16 24U835 KIT, FLUID TUBE, A, OUTLET
18 15B456 GASKET MANIFOLD
19 125643 FITTING, ELBOW, 3/8 NPT X #5 JIC
20 119865 SCREW, HH, FLANGED, 1/4-20 X .375
21 118444 SCREW, MACH, SLOT, HEX
22 117683 SCREW,MACH,PHIL PAN HD
23 113796 SCREW,FLANGED,HEX HD
24 112731 NUT, HEX, FLANGED
25 111800 SCREW, CAP, HEX HD
26 111218 CAP TUBE,SQUARE
27 110996 NUT, HEX, FLANGED
28 104859 SCREW, TAPPING,PN HD
29 103181 WASHER, LOCK, EXT
30 100020 WASHER, LOCK
31 115836 GUARD FINGER
32 24U847 KIT, FAN, COOLING, 120MM
33 24R685 COVER, DINRAIL
33b 16W667 INSULATOR, FOAM, DINRAIL
33d 113505 NUT,KEPS,HEX HD
34 151395 WASHER, FLAT
35 120685 GROMMET
36 114269 GROMMET,RUBBER
37 125625 TIE, CABLE, FIR TREE
38 127277 BOLT, CARRIAGE, 1/2-13 X 3.5 L
39 127278 NUT,KEPS, HEX
40 127282 GROMMET, RUBBER
41 16X095 CONNECTOR, POWER, MALE, 4 PIN
42 125871 TIE, CABLE, 7.5 INCH
43 24K207 KIT, FTS, RTD, SINGLE HOSE
44 24R725 BRIDGE, PLUG-IN JUMPER, UT35
45 106569 TAPE, ELECTRICAL
46 24P970 HARNESS,GCA,OT,A/B/HOSE
47 104765 PLUG PIPE HEADLESS
48 16V268 COVER, TOP, DINRAIL
49 15Y118 LABEL,MADE IN THE USA
50 24V151 KIT, PROPORTIONER, EXP2, R2
51 24U320 KIT,ASSEMBLY,PAIR,STD,REACTOR
53 24T050 CABLE, M8 4P F TO M12 8P M 1.5M
54 16W130 CABLE,M12 5P, FEM - MALE, 2.0M
55 24U845 KIT, TUBE, PRESSURE RELIEF
56 191892 FITTING ELBOW, 1/8 NPT
57 116746 FITTING,BARBED,PLATED
58 16W322 LABEL, BRANDING, E-XP2, ELITE
59 16U530 MODULE, SYS SRG PROT
60 287292 KIT RPR,COVER,10/1595
61 16W766 COVER, PAINTED, CONTROL, BOX
62 16W596 LATCH, DOOR
63 24U831 KIT, MODULE,GCA. MCM2200 RIO, R2
64 206995 GB FLUID, TSL, 1 QT.
65 206994 GB FLUID, TSL. 8 OZ BOTTLE
67 114225 TRIM,EDGE PROTECTION
68 16X250 LABEL, IDENTIFICATION
70 127296 SCREW, MCHN, PNH, W/EXT TOOTH WASH
71 16X129 SCREW, MACH, PHILLIPS, TOOTH WASH
72 117502 FITTING REDUCER,#5X#8,JIC
73 117677 FITTING REDUCER,#6X#10 JIC
74 299521 CAP, PLUG,5/16 TUBE
75 299520 CAP, PLUG 3/8 TUBE
81 16V806 BRACKET, WALL, MOUNT
82 15V551 SHIELD,MEMBRANE, ADM
85 127276 BOLT, CARRIAGE, 1/2-13 X 2.5 L
88 24U854 R2, ADM
89 118459 FITTING UNION,SWVL,3/4"
90 16W213 LABEL, BRANDING, REACTOR
91 115942 NUT, HEX, FLANGE HEAD
92 15D906 SUPPRESSOR, ROUND SNAP FERRI
93 127368 SLEEVE, SPLIT, WIRE, 1.50 ID
94 127377 TIE, CABLE, 6.00 INCH
95 16X154 LABEL, INSITE, BRANDING
96 333091 MANUAL, QUICK GUIDE, STARTUP
97 333092 MANUAL, QUICK GUIDE, SHUTDOWN
98 24W204 ENCLOSURE,TERMINAL BLOCK
99 25A234 KIT,ENCLOSURE,COVER,PAINTED
100 189930 LABEL CAUTION
101 172953 LABEL, DESIGNATION
102 17D955 PLATE,MOUNTING,PAINTED
103 113161 SCREW, FLANGE, HEX HD
104 25N930 KIT,METER REPLACMENT SET
106 17R703 CABLE, GCA, M12-5P, M/F, 0.3M
107 17Y983 CABLE,GCA,M12-5P,M/F,2.0M

More Information

Extended Desc 272010, 272011, 272012, 272110, 272111, 272112, Reactor E-30 R2
