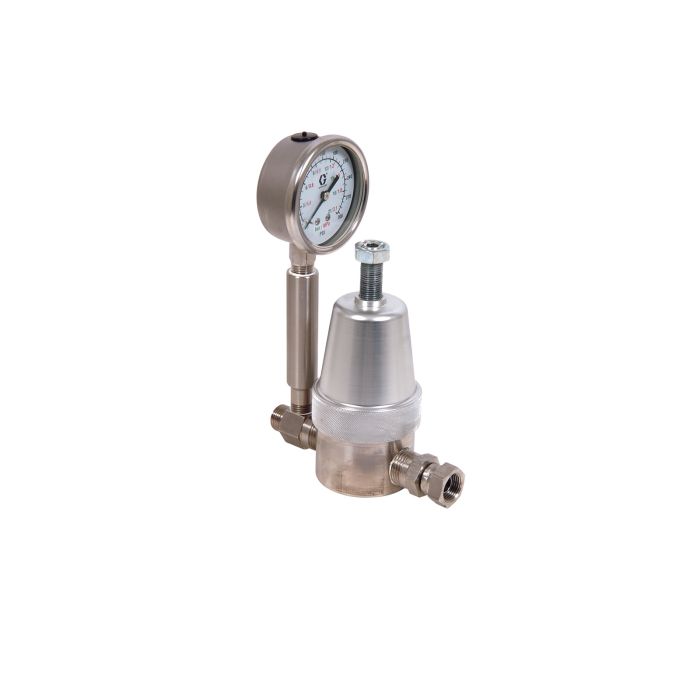

Back Pressure Regulator, Low Pressure Mini, Graco
Back Pressure Regulator, Low Pressure Mini, 180 Max psi, CS, Manual, 3/8 (m) x 3/8 (f), with Gauge
Checking stock status...
Part Number
205122
Loading price...
$0.00
Description / Back Pressure Regulator, Low Pressure Mini, Graco
Stainless steel wetted materials are compatible with catalyst and waterborne materials Tungsten and carbide materials ensure low wear and long life Compact and lightweight design saves space and reduces payload for small circulation systems PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness Air operated model available for automated control, Conversion kit (237448)
More Information
| Includes | Gauge |
|---|---|
| Gauge Port Size (in) | 1/4 |
| Compatible Material | Catalyst, Waterborne |
| Inlet Size (in) | 3/8 |
| Inlet Thread Type | NPSM |
| Wetted Material | Elastomer Treated Cellulose Fiber, Stainless Steel, Buna-N Impregnated Nylon, Plated Steel Brass, Tungsten Carbide |
| Type | Back Pressure Regulator |
| Outlet Thread Type | NPSM |
| Outlet Size (in) | 3/8 |
| Maximum Working Pressure (psi) | 300 |
| Maximum Viscosity (cP) | 1000 |
| Maximum Regulated Pressure (psi) | 180 |
| Maximum Flow Rate (GPM) | 2 |
| Item Description | Back Pressure Regulator, Low Pressure Mini, 180 Max psi, CS, Manual, 3/8 (m) x 3/8 (f), with Gauge |
| Description | Back Pressure Regulator, Low Pressure Mini, 180 Max psi, CS, Manual, 3/8 (m) x 3/8 (f), with Gauge |
| Requires Hazardous Shipping | No |
