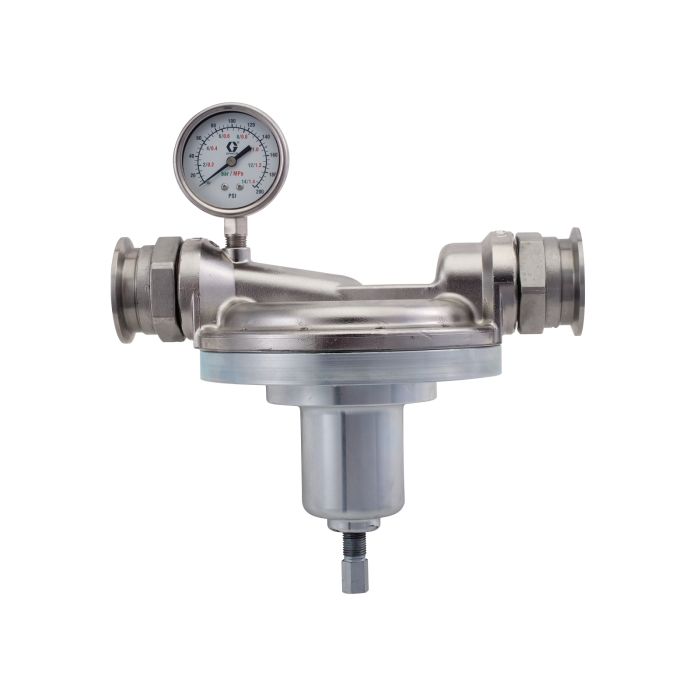

REGULATOR BACK PRESSURE
Control upstream fluid pressure with Graco back pressure regulators. Our back pressure regulators use closed loop control to maintain the pressure of the system regardless of flow demand. This allows operators to trigger guns, valves, and other flow controls without changing the system pressure.
Checking stock status...
Part Number
224486
Loading price...
$0.00
Description / REGULATOR BACK PRESSURE
Stainless steel membrane diaphragm is highly wear resistant while maintaining accurate responsiveness Low Shear diaphragm valve has minimal restriction to reduce material degradation and color matching issues, especially with metallic paint Stainless steel wetted materials are compatible with catalyst and waterborne materials Large fluid passages to accommodate high volume flow rates
More Information
| Includes | Gauge |
|---|---|
| Gauge Port Type | NPT |
| Gauge Port Size (in) | 1/4 |
| Compatible Material | Catalyst, Waterborne |
| Inlet Size (in) | 1-1/2 |
| Inlet Thread Type | NPT |
| Wetted Material | Stainless Steel, Acetal, PTFE |
| Type | Back Pressure Regulator |
| Outlet Thread Type | NPT |
| Outlet Size (in) | 1-1/2 |
| Minimum Regulated Pressure (psi) | 15 |
| Maximum Working Pressure (psi) | 300 |
| Maximum Viscosity (cP) | 1000 |
| Maximum Regulated Pressure (psi) | 200 |
| Maximum Flow Rate (GPM) | 20 |
| Description | Corrosion Resistant Fluid Back Pressure Regulator, 300 Max psi, SST, Acetal & PTFE Wetted Parts, 1-1/4 (f) x 1-1/4 (f), with Gauge |
| Requires Hazardous Shipping | No |
