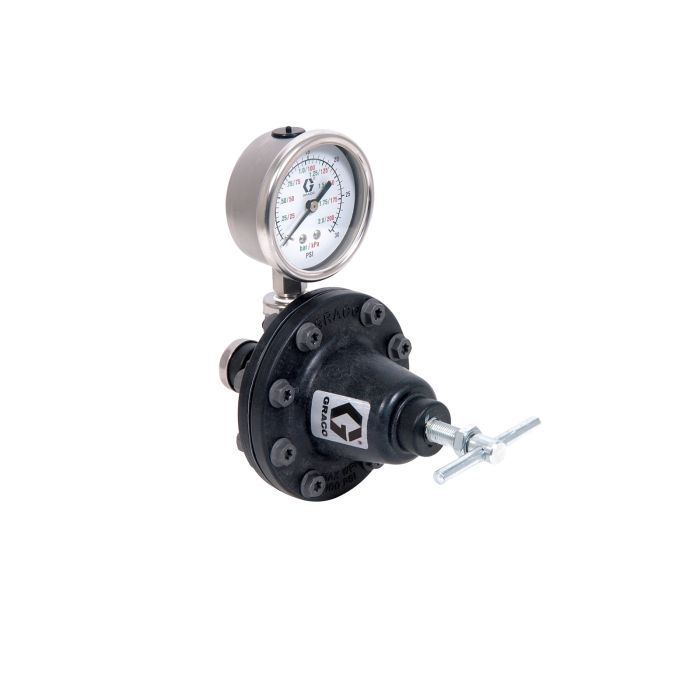

REGULATOR, PRESS, FLUID
Fluid pressure regulators control pressure of the downstream fluid, allowing operators to accurately control the pressure to guns, applicators and dispense valves. This ensures the process is stable and maintains the optimal conditions needed for a smooth paint finish, consistent extrusion or steady flow.
Checking stock status...
Part Number
236449
Loading price...
$0.00
Description / REGULATOR, PRESS, FLUID
Lightweight composite material is compatible with waterborne materials PTFE, stainless steel seat, and carbide ball provide wear resistance Pressure adjustment key with locking mechanism protects production settings
More Information
| Inlet Size (in) | 1/4 |
|---|---|
| Gauge Port Type | NPT |
| Gauge Port Size (in) | 1/4 |
| Actuation Type | Spring |
| Inlet Thread Type | NPT |
| Maximum Flow Rate (GPM) | 0.5 |
| Wetted Material | Acetal |
| Type | Fluid Regulator |
| Outlet Size (in) | 1/4 |
| Minimum Regulated Pressure (psi) | 3 |
| Maximum Working Pressure (psi) | 100 |
| Maximum Viscosity (cP) | 1000 |
| Maximum Regulated Pressure (psi) | 30 |
| Includes | Gauge |
| Description | Low Pressure Lightweight Fluid Regulator, Gauge, 3-30 psi (0.2-2 bar), 0.5 gpm, Acetal, Spring, 1/4(f) x 1/4(f), 1/4(f) Port |
| Requires Hazardous Shipping | No |
