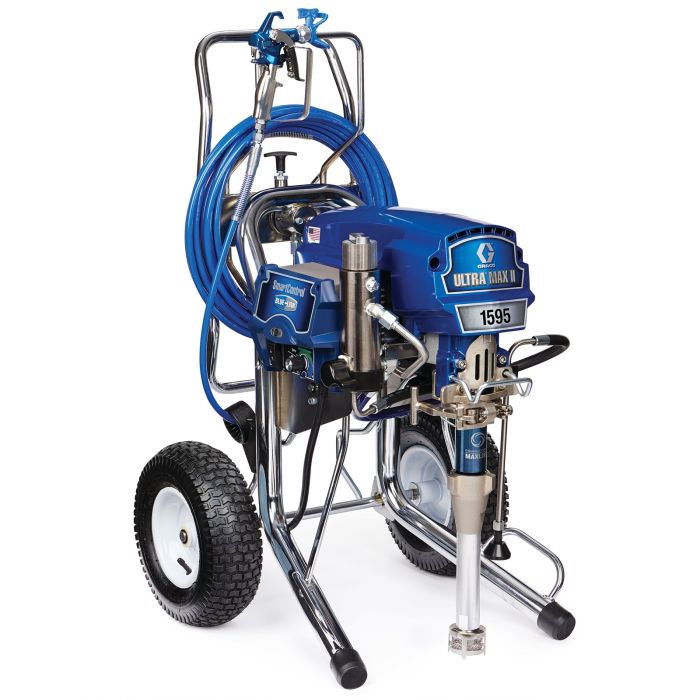

SPRAYER, 1595, HI, PROCONTRACTOR
The Ultra Max II 1595 ProContractor Series is Graco’s largest electric sprayer with a 2.8 hp brushless DC motor, Endurance Vortex MaxLife Pumps and BlueLink Job & Sprayer Management System plus timesaving features like the ProConnect 2 Pump Replacement System and QuikReel Hose Management System.
Loading Price
Part Number
17E596
Endurance Vortex MaxLife Piston Pump
- Superior pump life
- Breakthrough Vortex rotating rod technology
- Lasts 6X longer between repacks with innovative MaxLife technology
- Oversized passages for high velocity flow to rotate piston for even wear
- Repack pump in minutes with new QuikPak cartridge repair system
- Precision Pressure Control
- Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation
- ProGuard prevents electrical damage from extreme jobsite power conditions
- WatchDog Pump Protection System automatically prevents pump damage if material supply is too low
- Streamline Your Business
- Track every sprayer: Exact location & hourly productivity
- Know job progress: On demand productivity facts and reporting from anywhere
- Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
- Easy hose management
- Deploy and rewind up to 300 feet (90 meters) of hose in seconds
- No twisting, kinking, and coiling
- Use only the hose you need — the rest stays on the reel
- Get more work done
- Proven performance for all painting applications
- High-torque brushless design with a Lifetime Warranty
- The longest lasting drive
- Hardened steel gears provide extremely quiet operation and a Lifetime Warranty
- Eliminate Costly Downtime
- Exchange pump in minutes
- Pin-less design needs no tools
- Fast cleaning now even FASTER
- Clean the pump 6X faster using ½ the water
- High-velocity fluid flow delivered with 60% higher motor speed
- Easy Out Filter provides easy maintenance and less clogging
- Crushproof Inlet Strainer stands up to harsh impacts to maintain even flow
- Heavy Duty Prime Valve
- Rugged, Durable Cart Design
- All-day comfort & control
- Lightest weight gun in its class
- Up to 50% lighter trigger pull force
- E-Z Fit adjustable trigger length
- Complete gun rebuild in seconds with ProConnect cartridge
- More info: graco.com/ContractorPC
| Long Description | Ultra Max II 1595 ProContractor Series Electric Airless Sprayer |
|---|---|
| Application Text | Work Smarter, Finish More Jobs. ProContractor Series electric airless sprayers are built specifically for professional remodeling and repainting contractors looking to increase the number of larger jobs they spray and the performance to spray a wide variety of coatings with a variety of tip sizes. |
| Length | 27 |
| Height | 42.5 |
| Width | 31.5 |
| Number of Guns | 3 |
| Overall Height (in) | 39 |
| Overall Length (in) | 28 |
| Overall Width (in) | 24 |
| Maximum Tip Size Gun 1 (in) | 0.039 |
| Maximum Tip Size Gun 2 (in) | 0.029 |
| Maximum Tip Size Gun 3 (in) | 0.023 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 5000 |
| Motor Type | MaxPower |
| Power Rating (HP) | 2.8 |
| Power Rating (kW) | 2.09 |
| Type | Airless Sprayer |
| Voltage (V) | 120 |
| Volume Per Cycle (cycles/gal) | 110 |
| Weight (lb) | 146 |
| Wetted Material | Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, PEEK, Stainless Steel, Brass, Aluminum, UHMWPE, Leather, Tungsten Carbide, Acetal, PTFE, Nylon |
| Recommended Annual Usage | Over 200 gallons per week |
| Power Rating (W) | 2088.0 |
| Power Source | Electric |
| Pressure Control Type | SmartControl 4.0 |
| Pump Mount Type | ProConnect 2 |
| Pump Rod Type | MaxLife |
| Pump Sleeve Material | MaxLife |
| Pump Type | Endurance Vortex |
| Includes | Contractor PC Gun;RAC X LTX 517 Tip;RAC X Guard;BlueMax II Hose 1/4 in x 50 ft |
| Amperage (A) | 20 |
| Features | Heavy-Duty Prime Valve, WatchDog, Endurance Vortex MaxLife Pump, MaxPower Brushless, FastFlush 2, Crushproof Inlet Strainer, Easy Out Filter, QuikReel, BlueLink System, Contractor PC Gun, Advantage Drive, ProConnect 2, SmartControl 4.0 |
| Filter Mesh Size | 60 |
| Compatible Material | Exterior Latex, Elastomerics, Block Filler, Interior Latex, Oil-Based Primer, Acrylics, Dry Fall |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Maximum Flow Rate (GPM) | 1.35 |
| Maximum Sound Pressure Level (dB(A)) | 82 |
| Frame Configuration | Hi-Boy |
| Gun Included | No |
| Hose Inlet Diameter (in) | 1/4 |
| Maximum Tip Size (in) | 0.039 |
