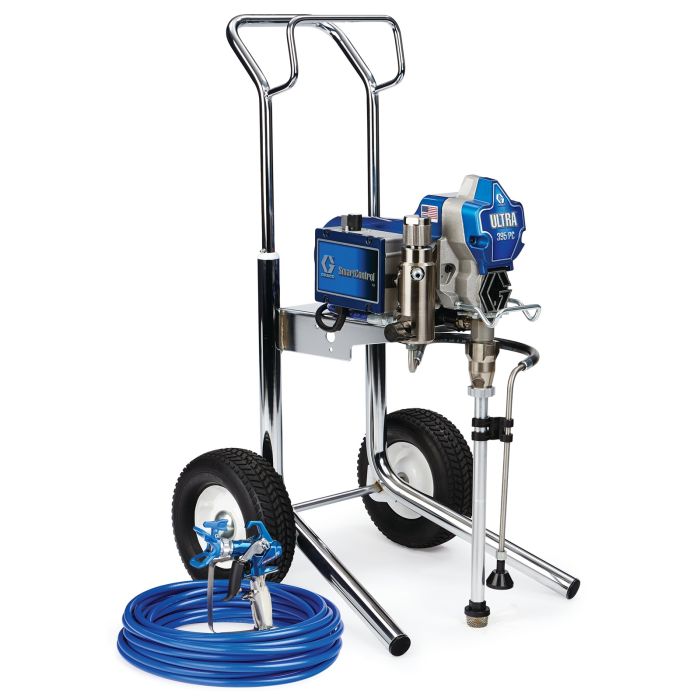

SPRAYER, 395, ULTRA, PC, HIBOY
The performance and versatility of the Ultra 395 PC has made it Graco’s most popular sprayer. SmartControl 1.0 pressure control delivers a consistent spray fan without fluctuation and the proven reliability make it perfect for professionals who spray daily with a wide range of coatings.
Loading Price
Part Number
17E846
Durable Endurance Chromex Piston Pump
- Lasts 2X longer than the next leading brand
- Long Life V-Max Blue Packings, Chromex rod and hardened stainless steel cylinder
- Faster cleaning with the QuikAccess intake valve
- Even pressure delivery
- Constantly monitors performance and adjusts motor speed to match your tip size and spraying needs
- Ideal for RAC X LP tips commonly used in fine finish and low overspray applications
- Get more work done
- High torque produces the most power possible for all painting applications
- The longest lasting drive
- Hardened steel gears provide extremely quiet operation and a Lifetime Warranty
- Eliminate costly downtime
- Pump swaps in minutes – no tools, pins or parts to lose
- Easy maintenance & less clogging
- Exclusive inside-out filtering process ensures a quality finish
- Thick chrome over steel withstands rugged environments
- Heavy-duty handles and semi-pneumatic wheels roll easily over rough terrain
- Withstands rugged environments
- Design allows for easy, one-person bucket changes
- Retractable handle doubles as hose storage
- All-day comfort & control
- Lightest weight gun in its class
- Up to 50% lighter trigger pull force
- E-Z Fit adjustable trigger length
- Complete gun rebuild in seconds with ProConnect cartridge
- More info: graco.com/ContractorPC
| Long Description | Ultra 395 PC Electric Airless Sprayer, Hi-Boy |
|---|---|
| Application Text | Small Size. Large Capability. Built with the same quality as Graco’s Large Electric sprayers, Graco Small Electric airless sprayers deliver exceptional power and performance. |
| Length | 24.5 |
| Height | 31 |
| Width | 22 |
| Number of Guns | 1 |
| Overall Height (in) | 38.25 |
| Overall Length (in) | 23.25 |
| Overall Width (in) | 20.5 |
| Phase | 1 |
| Maximum Tip Size Gun 1 (in) | 0.023 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 3000 |
| Motor Type | TEFC DC |
| Power Rating (HP) | 7/8 |
| Power Rating (kW) | 0.65 |
| Type | Airless Sprayer |
| Voltage (V) | 120 |
| Volume Per Cycle (cycles/gal) | 700 |
| Weight (lb) | 66 |
| Wetted Material | Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Stainless Steel, Polyethylene, Aluminum, UHMWPE, Leather, Tungsten Carbide, Acetal, Urethane, PTFE, Fluoroelastomer, Nylon |
| Recommended Annual Usage | Up to 50 gallons per week |
| Power Rating (W) | 652.5 |
| Power Source | Electric |
| Pressure Control Type | SmartControl 1.0 |
| Pump Mount Type | ProConnect |
| Pump Type | Endurance |
| Includes | Contractor PC Gun;RAC X LTX 517 Tip;RAC X Guard;BlueMax II Hose 1/4 in x 50 ft;TSL 4 oz |
| Amperage (A) | 15 |
| Engine Size (kW) | 0.65 |
| Features | SmartControl 1.0, Easy Out Filter, Endurance Chromex Pump, TEFC DC, Contractor PC Gun, Advantage Drive, ProConnect |
| Filter Mesh Size | 60 |
| Compatible Material | Exterior Latex, Stains, Lacquer, Interior Latex, Enamel, Acrylics |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Maximum Flow Rate (GPM) | 0.54 |
| Maximum Sound Pressure Level (dB(A)) | 90 |
| Frame Configuration | Hi-Boy |
| Gun Included | No |
| Hose Inlet Diameter (in) | 1/4 |
| Maximum Tip Size (in) | 0.023 |
