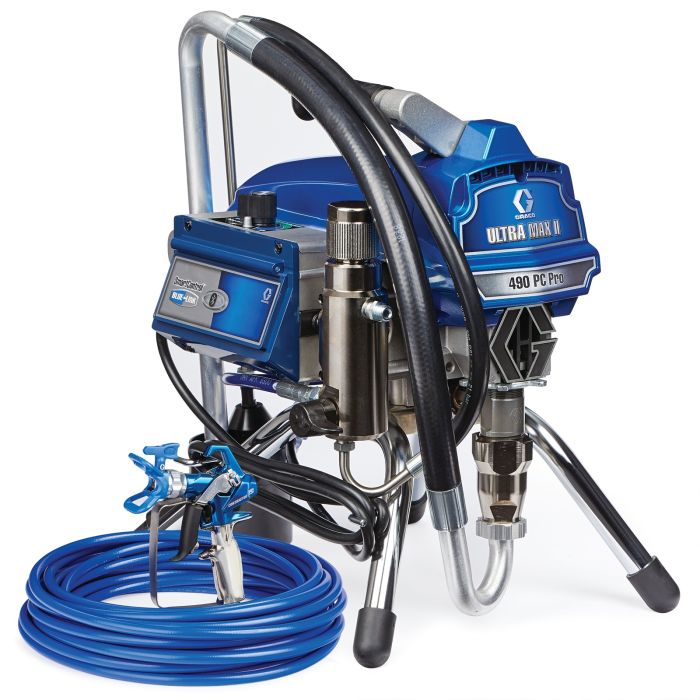

SPRAYER, 490, UMAX II, PCPRO, STAND
The Ultra Max II 490 PC Pro airless sprayer is the ideal step-up for the professional contractor looking for superior performance and features in a small electric sprayer. The MaxPower brushless motor delivers more torque and SmartControl 3.0 adjusts motor speed to match your spraying needs.
Checking stock status...
Part Number
17E852
Loading price...
$0.00
Description / SPRAYER, 490, UMAX II, PCPRO, STAND
Durable Endurance Chromex Piston Pump
- Lasts 2X longer than the next leading brand
- Long Life V-Max Blue Packings, Chromex rod and hardened stainless steel cylinder
- Faster cleaning with the QuikAccess intake valve
- Increased spray consistency
- Constantly monitors performance and adjusts motor speed to match your spraying needs
- Measure sprayer gallons, hours and pressure
- Provides support messages and diagnostic support
- Streamline your business
- Track every sprayer: Exact location & hourly productivity
- Know job progress: On demand productivity facts and reporting from anywhere
- Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
- More info: graco.com/BlueLink
- Proven power and performance for all painting applications
- High-torque brushless design with a Lifetime Warranty
- The longest lasting drive
- Hardened steel gears provide extremely quiet operation and a Lifetime Warranty
- Eliminate costly downtime
- Pump swaps in minutes – no tools, pins or parts to lose
- More spraying & less cleaning
- 4X faster cleaning with ½ the water
- Easy Maintenance & Less Clogging
- Exclusive inside-out filtering process ensures a quality finish
- Easily reaches paint buckets
- Only 34 lbs (15.4 kg)
- All-Day Comfort & Control
- Lightest weight gun in its class
- Up to 50% lighter trigger pull force
- E-Z Fit adjustable trigger length
- Complete gun rebuild in seconds with ProConnect cartridge
- More info: graco.com/ContractorPC
More Information
| Description | Ultra Max II 490 PC Pro Electric Airless Sprayer, Stand |
|---|---|
| Application Text | Increased Productivity. Unmatched Reliability. Graco's Midsize Electric airless sprayers make it easier to get more work done in a day with increased flow and production rates. |
| Number of Guns | 1 |
| Overall Height (in) | 18.5 |
| Overall Length (in) | 16 |
| Overall Width (in) | 14 |
| Phase | 1 |
| Maximum Tip Size Gun 1 (in) | 0.023 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 3500 |
| Motor Type | MaxPower |
| Power Rating (HP) | 1.0 |
| Power Rating (kW) | 0.75 |
| Type | Airless Sprayer |
| Voltage (V) | 120 |
| Volume Per Cycle (cycles/gal) | 620 |
| Weight (lb) | 34 |
| Wetted Material | Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Stainless Steel, Polyethylene, Aluminum, UHMWPE, Leather, Tungsten Carbide, Acetal, Urethane, PTFE, Fluoroelastomer, Nylon |
| Recommended Annual Usage | 50-100 gallons per week |
| Power Rating (W) | 745.7 |
| Power Source | Electric |
| Pressure Control Type | SmartControl 3.0 |
| Pump Mount Type | ProConnect |
| Pump Type | Endurance |
| Includes | Contractor PC Gun;RAC X LTX 517 Tip;RAC X Guard;BlueMax II Hose 1/4 in x 50 ft;TSL 4 oz |
| Amperage (A) | 12 |
| Engine Size (kW) | 0.75 |
| Features | FastFlush, MaxPower Brushless, Easy Out Filter, Endurance Chromex Pump, BlueLink System, Contractor PC Gun, Advantage Drive, ProConnect, SmartControl 3.0 |
| Filter Mesh Size | 60 |
| Compatible Material | Exterior Latex, Stains, Lacquer, Interior Latex, Enamel, Oil-Based Primer, Acrylics |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Maximum Flow Rate (GPM) | 0.54 |
| Maximum Sound Pressure Level (dB(A)) | 90 |
| Frame Configuration | Stand |
| Gun Included | No |
| Hose Inlet Diameter (in) | 1/4 |
| Maximum Tip Size (in) | 0.023 |
| Requires Hazardous Shipping | No |
