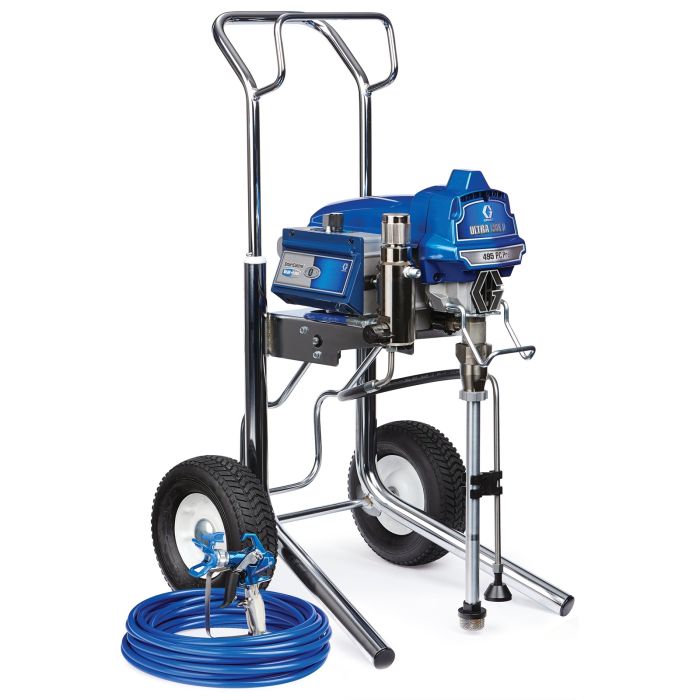

SPRAYER, 495, UMAX II, PCPRO, HI-BOY
The Ultra Max II 495 PC Pro airless sprayer brings the leading technology and performance of Graco’s larger Ultra Max II models into a compact design that is lightweight and easy to transport while providing more torque, even pressure delivery and faster cleaning to finish jobs faster.
Checking stock status...
Part Number
17E857
Loading price...
$0.00
Description / SPRAYER, 495, UMAX II, PCPRO, HI-BOY
Durable Endurance Chromex Piston Pump
- Lasts 2X longer than the next leading brand
- Chromex rod and hardened stainless steel cylinder
- Long Life V-Max Blue Packings
- Faster cleaning with the QuikAccess intake valve
- Increased spray consistency
- Constantly monitors performance and adjusts motor speed to match your spraying needs
- Measure sprayer gallons, hours and pressure
- Provides support messages and diagnostic support
- Streamline your business
- Track every sprayer: Exact location & hourly productivity
- Know job progress: On demand productivity facts and reporting from anywhere
- Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
- More info: graco.com/BlueLink
- Proven power and performance for all painting applications
- High-torque brushless design with a Lifetime Warranty
- The longest lasting drive
- Hardened steel gears provide extremely quiet operation and a Lifetime Warranty
- Eliminate costly downtime
- Pump swaps in minutes – no tools, pins or parts to lose
- More spraying & less cleaning
- 4X faster cleaning with ½ the water
- Easy Maintenance & Less Clogging
- Exclusive inside-out filtering process ensures a quality finish
- Withstands rugged environments
- Design allows for easy, one-person bucket changes
- Retractable handle doubles as hose storage
- Kickstand for easy one person bucket changes
- All-Day Comfort & Control
- Lightest weight gun in its class
- Up to 50% lighter trigger pull force
- E-Z Fit adjustable trigger length
- Complete gun rebuild in seconds with ProConnect cartridge
- More info: graco.com/ContractorPC
More Information
| Extended Desc | REPLACES 17C335 |
|---|---|
| Description | Ultra Max II 495 PC Pro Electric Airless Sprayer, Hi-Boy |
| Application Text | Increased Productivity. Unmatched Reliability. Graco's Midsize Electric airless sprayers make it easier to get more work done in a day with increased flow and production rates. |
| Number of Guns | 1 |
| Overall Height (in) | 38.25 |
| Overall Length (in) | 23.25 |
| Overall Width (in) | 20.5 |
| Phase | 1 |
| Maximum Tip Size Gun 1 (in) | 0.025 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 3750 |
| Motor Type | MaxPower |
| Power Rating (HP) | 1.2 |
| Power Rating (kW) | 0.89 |
| Type | Airless Sprayer |
| Voltage (V) | 120 |
| Volume Per Cycle (cycles/gal) | 620 |
| Weight (lb) | 66 |
| Wetted Material | Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Stainless Steel, Polyethylene, Aluminum, UHMWPE, Leather, Tungsten Carbide, Acetal, Urethane, PTFE, Fluoroelastomer, Nylon |
| Recommended Annual Usage | 50-100 gallons per week |
| Power Rating (W) | 894.8 |
| Power Source | Electric |
| Pressure Control Type | SmartControl 3.0 |
| Pump Mount Type | ProConnect |
| Pump Type | Endurance |
| Includes | Contractor PC Gun;RAC X LTX 517 Tip;RAC X Guard;BlueMax II Hose 1/4 in x 50 ft;TSL 4 oz |
| Amperage (A) | 15 |
| Engine Size (kW) | 0.9 |
| Features | FastFlush, MaxPower Brushless, Easy Out Filter, Endurance Chromex Pump, BlueLink System, Contractor PC Gun, Advantage Drive, ProConnect, SmartControl 3.0 |
| Filter Mesh Size | 60 |
| Compatible Material | Exterior Latex, Stains, Lacquer, Interior Latex, Enamel, Oil-Based Primer, Acrylics |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Maximum Flow Rate (GPM) | 0.6 |
| Maximum Sound Pressure Level (dB(A)) | 90 |
| Frame Configuration | Hi-Boy |
| Gun Included | No |
| Hose Inlet Diameter (in) | 1/4 |
| Maximum Tip Size (in) | 0.025 |
| Requires Hazardous Shipping | No |
