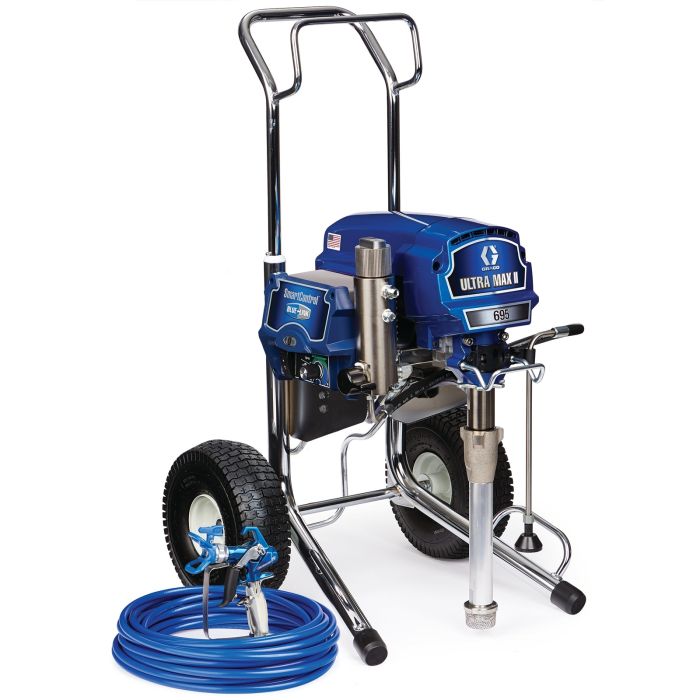

SPRAYER, 695, HI, STANDARD
The Ultra Max II 695 Standard Series Hi-Boy electric airless sprayer provides dependable performance with features that include a 2.0 hp brushless DC motor, industry-proven Chromex pump with 2X life, SmartControl 4.0, BlueLink Job & Sprayer Management System, the Contractor PC gun and much more.
Checking stock status...
Part Number
17E574
Loading price...
$0.00
Description / SPRAYER, 695, HI, STANDARD
Endurance Chromex Piston Pump
- Lasts 2X Longer than competing pumps
- Repack the pump in minutes with the new QuikPak Cartridge System
- Faster cleaning with the QuikAccess intake foot valve
- Precision pressure control
- Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation
- ProGuard prevents electrical damage from extreme jobsite power conditions
- WatchDog Pump Protection System automatically prevents pump damage if material supply is too low
- Streamline Your Business
- Track every sprayer: Exact location & hourly productivity
- Know job progress: On demand productivity facts and reporting from anywhere
- Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
- More info: graco.com/BlueLink
- Get more work done
- Proven performance for all painting applications
- High-torque brushless design with a Lifetime Warranty
- The longest lasting drive
- Hardened steel gears provide extremely quiet operation
- Lifetime Drive Train Warranty
- Fast cleaning now even FASTER
- Clean the pump 6X faster using ½ the water
- High-velocity fluid flow delivered with 60% higher motor speed
- Easy maintenance & less clogging
- Exclusive inside-out filtering process ensures a quality finish
- Vertical design for less mess
- Maintenance-free high-pressure dumping capability
- Withstands rugged environments
- Design allows for easy, one-person bucket changes
- Retractable handle doubles as hose storage
- Kickstand for easy one person bucket changes
- All-day comfort & control
- Lightest weight gun in its class
- Up to 50% lighter trigger pull force
- E-Z Fit adjustable trigger length
- Complete gun rebuild in seconds with ProConnect cartridge
- More info: graco.com/ContractorPC
More Information
| Description | Ultra Max II 695 Standard Series Electric Airless Sprayer, Hi-Boy |
|---|---|
| Application Text | Everyday Reliability. Standard Series large electric airless sprayers are the industry standard for residential and commercial contractors looking for proven reliability to spray a wide variety of coatings with a variety of tip sizes on larger jobs. |
| Number of Guns | 2 |
| Overall Height (in) | 38.75 |
| Overall Length (in) | 26 |
| Overall Width (in) | 22.5 |
| Maximum Tip Size Gun 1 (in) | 0.031 |
| Maximum Tip Size Gun 2 (in) | 0.023 |
| Maximum Working Pressure (psi) | 3300 |
| Minimum Generator Power (W) | 5000 |
| Motor Type | MaxPower |
| Power Rating (HP) | 2.0 |
| Power Rating (kW) | 1.49 |
| Type | Airless Sprayer |
| Voltage (V) | 120 |
| Volume Per Cycle (cycles/gal) | 226 |
| Weight (lb) | 94 |
| Wetted Material | Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, PEEK, Stainless Steel, Brass, Aluminum, UHMWPE, Leather, Tungsten Carbide, Acetal, PTFE, Nylon |
| Recommended Annual Usage | 100-200 gallons per week |
| Power Rating (W) | 1491.4 |
| Power Source | Electric |
| Pressure Control Type | SmartControl 4.0 |
| Pump Mount Type | QuikChange |
| Pump Rod Type | Chromex |
| Pump Sleeve Material | Hardened SST |
| Pump Type | Endurance |
| Includes | Contractor PC Gun;RAC X LTX 517 Tip;RAC X Guard;BlueMax II Hose 1/4 in x 50 ft |
| Amperage (A) | 15 |
| Features | Heavy-Duty Prime Valve, WatchDog, MaxPower Brushless, FastFlush 2, Easy Out Filter, Endurance Chromex Pump, BlueLink System, Contractor PC Gun, Advantage Drive, SmartControl 4.0 |
| Filter Mesh Size | 60 |
| Compatible Material | Exterior Latex, Block Filler, Interior Latex, Oil-Based Primer, Acrylics |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Maximum Flow Rate (GPM) | 0.95 |
| Maximum Sound Pressure Level (dB(A)) | 82 |
| Frame Configuration | Hi-Boy |
| Gun Included | No |
| Hose Inlet Diameter (in) | 1/4 |
| Maximum Tip Size (in) | 0.031 |
| Requires Hazardous Shipping | No |
