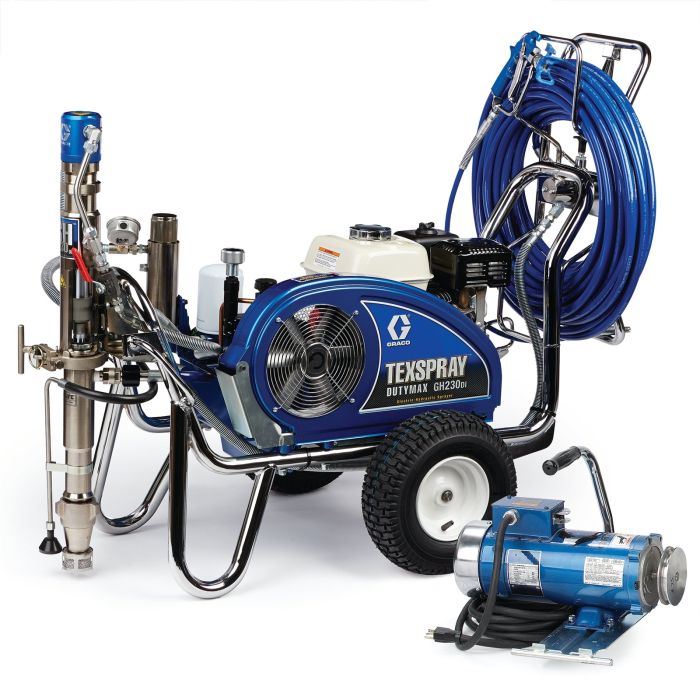

SPRAYER, DTYMX, GH230, W/NON-CSA, PRO
When your job requires maximum productivity and versatility, turn to the TexSpray DutyMax 230DI sprayer to get the job done—fast! Equipped with a long stroke, direct immersion pump, this hydraulic workhorse is built for the biggest, most demanding jobs and materials.
Checking stock status...
Part Number
24W963
Loading price...
$0.00
Description / SPRAYER,DTYMX,GH230,W/NON-CSA,PRO
Extreme-Duty Endurance MaxLife Pump
- Lasts 6X longer between repacks
- Better spraying performance and fast cleaning
- Long Life ceramic and stainless steel balls included for maximum versatility
- Less Pack-Out, More Productivity
- Self-cleaning Vibra-Seal Technology eliminates material build-up
- Continuous spraying with True Pack-Out Protection for more productivity
- Optimized fluid passageways for the heaviest coatings
- Finish Jobs Faster
- Fast, responsive changeover
- Less maintenance and longer life with fewer moving parts
- 100% O-ring sealed fittings prevent leaks
- Reduced Downtime
- Innovative design allows the pump to run cooler and more efficiently with extremely quiet operation
- Easier and more thorough fluid changes
- Reservoir cooling fins deflect more heat
- Reliable, Powerful & Easy-to-Start
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Eliminate Costly Downtime
- Swap your pump in less than 1 minute – with no tools, pins or parts to lose
- Easy hose management
- Deploy and rewind up to 300 feet (90 meters) of hose in seconds
- No twisting, kinking, and coiling
- Use only the hose you need — the rest stays on the reel
- Improved Filtration
- Stands up to harsh impacts
- Indoor & Outdoor Use
- Quickly swap the gas engine for an electric motor in seconds, without tools
- Easy Out Pump Filter
- Heavy-Duty Prime Valve
- Durable Cart Design
More Information
| Description | TexSpray DutyMax GH 230DI ProContractor Series Convertible Gas Hydraulic Airless Sprayer with Electric Motor Kit |
|---|---|
| Application Text | With features that enable you to work more efficiently and finish jobs faster, DutyMax ProContractor Series gas hydraulic airless sprayers spray a wide range of materials – from latex and acrylics to more heavy duty materials like plasters, elastomerics, fire retardants and liquid roofing solutions. |
| Number of Guns | 1 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Height (in) | 39 |
| Overall Length (in) | 52 |
| Overall Width (in) | 26.5 |
| Power Rating (cc) | 200 |
| Maximum Tip Size Gun 1 (in) | 0.053 |
| Maximum Working Pressure (psi) | 3300 |
| Motor Type | Electric |
| Power Rating (HP) | 6.5 |
| Power Rating (kW) | 4.85 |
| Standards Met | CE Certified |
| Type | Airless Sprayer |
| Volume Per Cycle (cycles/gal) | 80 |
| Weight (lb) | 199 |
| Wetted Material | Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Stainless Steel, Aluminum, UHMWPE, Leather, Tungsten Carbide, Acetal, Chrome Plating, Ceramics, PTFE, Nylon |
| Recommended Annual Usage | 100-200 gallons per week |
| Power Rating (W) | 4847.1 |
| Power Source | Electric, Gas Hydraulic |
| Pressure Control Type | Pressure Control Knob |
| Pump Mount Type | ProConnect 2 |
| Pump Rod Type | Hard Chrome |
| Pump Sleeve Material | MaxLife |
| Pump Type | Endurance |
| Includes | Heavy-Duty Blue Texture Gun;RAC X LTX 427 Spray Tip;RAC X LTX 531 Spray Tip;RAC X Guard;3/8 in x 100 ft BlueMax II Airless Hose;1/4 in x 3 ft BlueMax II Airless Whip Hose;Electric Motor Kit;TSL 4 oz |
| Convertible | Yes |
| Engine Brand | Honda |
| Features | Heavy-Duty Prime Valve, High-Capacity Cooling System, Extreme-Duty MaxLife Pump, Honda Engine, MaxFlo 2, Crushproof Inlet Strainer, Easy Out Filter, Durable Cart Design, QuikReel, ProConnect 2, Convertible |
| Fluid Inlet Size (in) | 1-5/16 |
| Compatible Electric Motor Kits | 248949;248950 (CSA) |
| Compatible Material | Elastomer, Latex, Epoxies, Enamel, Coating, Drywall Mud, Acrylics |
| Fluid Inlet Thread Type | UN-2A |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Thread Type | NPT |
| Material Application | Paints;Primers |
| Maximum Flow Rate (GPM) | 2.35 |
| Maximum Hose Length (ft) | 100 |
| Maximum Sound Pressure Level (dB(A)) | 96 |
| Hose Reel Type | QuikReel |
| Frame Configuration | Cart |
| Gun Included | No |
| Maximum Tip Size (in) | 0.053 |
| Requires Hazardous Shipping | No |
