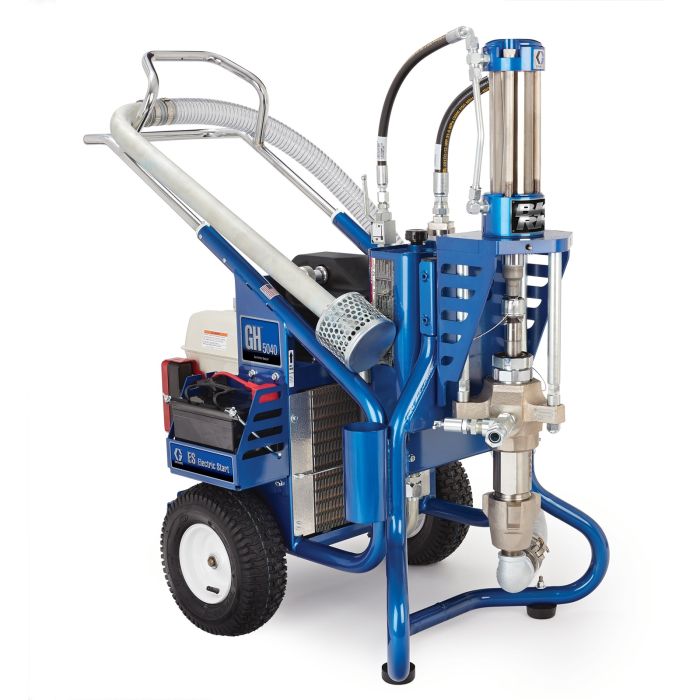

SPRAYER, GH 5040ES, HYDR, BARE
For 30 years, contractors have turned to the GH line of gas hydraulic sprayers when they needed maximum performance and unmatched versatility. Whether you need high pressure for long hose runs or hard-to-atomize materials, or high flow rates for heavier coverage, the GH 5040ES can get the job done.
Loading Price
Part Number
16U280
Honda® Engine with Electric Start
- 390 cc (13 HP) engine with integrated fuel tank to deliver maximum performance
- Contractor preferred engine with Oil Alert
- Back-up Pull Start
- High-capacity, 12 Volt 18 Amp Charging System
- Faster, more responsive changeover
- O-ring sealed to eliminate leaks
- High-precision pressure control
- No hydraulic reset button needed
- Durable hydraulic lines for long life
- Large 4 gallon hydraulic reservoir
- Return line hydraulic filter extends life
- No special hydraulic fluid needed
- Proven cooler and blower system
- Easy to use drain plug
- Easy-roll tubed pneumatic tires
- Enamel painted steel tubing - corrosion protection
- Multi-function design converts to skid mount in seconds
- QuikChange pump section
- Time tested durability and performance
- Long life XtremeSeal and leather packings
- Heavy-duty piston rod for long life
- QuikAccess intake valve removes easily for fast repairs
- Lockable pressure control knob
- Grounding wire for safety with solvent materials
- Large diameter siphon hose
| Long Description | GH 5040ES Big Rig Gas Hydraulic Sprayer, Bare |
|---|---|
| Application Text | High production architectural coatings, bridges, waterproofing and air barrier, roofing, fire proofing and protective & marine coatings: spray the most aggressive applications, without the need of an expensive air compressor to carry around. |
| Length | 0 |
| Height | 55.2 |
| Width | 0 |
| Overall Height (in) | 49 |
| Overall Length (in) | 43 |
| Overall Width (in) | 28 |
| Power Rating (cc) | 390 |
| Maximum Tip Size Gun 1 (in) | 0.067 |
| Maximum Tip Size Gun 2 (in) | 0.048 |
| Maximum Tip Size Gun 3 (in) | 0.039 |
| Maximum Tip Size Gun 4 (in) | 0.035 |
| Maximum Tip Size Gun 5 (in) | 0.031 |
| Maximum Tip Size Gun 6 (in) | 0.028 |
| Maximum Working Pressure (psi) | 5000 |
| Motor Type | Hydraulic Motor |
| Power Rating (HP) | 13 |
| Power Rating (kW) | 9.7 |
| Standards Met | CE |
| Type | Airless Sprayer |
| Weight (lb) | 438 |
| Wetted Material | Nitralloy, Stainless Steel, Carbide, Polyethylene, Leather, Tungsten, PTFE |
| Power Source | Gas Hydraulic |
| Pump Mount Type | QuikChange |
| Pump Rod Type | Hard Chrome |
| Pump Type | Xtreme |
| Engine Brand | Honda |
| Engine Size (kW) | 9.7 |
| Fluid Inlet Size (in) | 1-1/4 |
| Compatible Material | Polyester, Fibered Asphalt Cut-Back, Fibered Aluminum Emulsion, Non-Fibered Asphalt Cut-Back, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Emulsion, Elastomerics, Intumescent, Texture Mud, Block Filler, Polyurethane, Fibered Asphalt Emulsion, Silicon, Epoxies, Enamel, Coal Tar, Mastics, Paint, Waterproofing, Contact Cement, Acrylics, Primer |
| Compatible Replacement Pump | 16U754 |
| Fluid Inlet Thread Type | MNPT |
| Fluid Outlet Size (in) | 3/4 |
| Fluid Outlet Thread Type | NPSF |
| Material Application | Paints;Primers |
| Maximum Flow Rate (GPM) | 3.5 |
| Maximum Sound Pressure Level (dB(A)) | 91 |
| Frame Configuration | Cart |
| Gun Included | No |
| Maximum Tip Size (in) | 0.067 |
