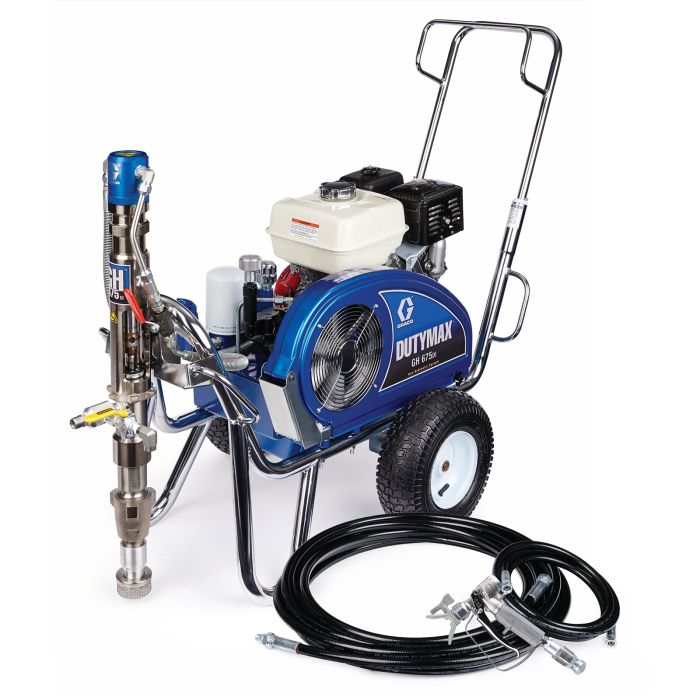

SPRAYER, GH HP, COMPLETE, 50 FEET
The DutyMax GH 675DI is the preferred choice for high production professional contractors who handle hard-to-atomize materials such as silicone and other waterproofing and protective coating materials. This compact sprayer includes the ultimate portability anywhere the job demands.
Loading Price
Part Number
25D223
6750 PSI Direct Immersion Pump
- Submerged foot valve
- Stainless steel rod and hard chrome cylinder deliver unmatched durability and life
- Easily loads and pumps high-viscosity fluids
- Filter-less design with extra-large material outlet optimizes flow up to 1.5 gpm
- Faster, more responsive changeover
- O-ring sealed to eliminate leaks
- High-precision pressure control
- No hydraulic reset button needed
- Durable hydraulic lines for long life
- Large 4 gallon hydraulic reservoir
- Return line hydraulic filter extends life
- No special hydraulic fluid needed
- Proven cooler and blower system
- Easy to use drain plug
- Easy-roll tubed pneumatic tires
- Enamel painted steel tubing – corrosion protection
- Multi-function design converts to skid mount in seconds
- 270 cc (9 HP) engine with integrated fuel tank to deliver maximum performance
- Contractor preferred engine with Oil Alert
- Durable XTR-7 HF 7250 psi spray gun
- Easy to pull trigger for less fatigue
- High-pressure Xtreme Duty hose
- 20 inch (50.8 cm) tip extension
- 180 degree swivel
- XHD 523, 527, 531 Tips and Guard
- 1/2 in x 50 ft Xtreme-Duty Airless Hose
- 3/8 in x 10 ft Xtreme-Duty Airless Whip Hose
| Long Description | DutyMax GH 675DI Gas Hydraulic Airless Sprayer, Complete |
|---|---|
| Application Text | Tackle the toughest coatings with a maximum pressure of 6750 psi (465 bar) and flow rates up to 1.5 gpm (5.7 lpm). Significantly faster than manual rolling or squeegee applications, this is the ideal solution for cut-in and detail work on large jobs. Cleanup is simple and economical using less solvent than larger systems. Converts to 3300 psi (227 bar) / 3 gpm (11.3 lpm) pump with optional kit to spray both silicone and acrylics — like having 2 sprayers in 1! Removable engine provides the ultimate versatility for transporting. |
| Length | 0 |
| Width | 0 |
| Overall Height (in) | 35.5 |
| Overall Length (in) | 47.7 |
| Overall Width (in) | 26.5 |
| Maximum Working Pressure (psi) | 6750 |
| Power Rating (HP) | 9.0 |
| Power Rating (kW) | 6.7 |
| Type | Airless Sprayer |
| Weight (lb) | 218 |
| Power Source | Electric, Gas |
| Includes | XTR-7 HF Gun with Swivel;XHD RAC 523 Spray Tip;XHD RAC 527 Spray Tip;XHD RAC 531 Spray Tip;XHD RAC Guard;1/2 in x 50 ft (15.2 m) Xtreme-Duty Airless Hose;3/8 in x 10 ft (3 m) Xtreme-Duty Airless Whip Hose;TSL 4 oz (118 mL) |
| Convertible | Yes |
| Engine Size (kW) | 6.7 |
| Fluid Inlet Size (in) | 1 1/4-11 1/2 |
| Compatible Material | Polyester, Fibered Aluminum Emulsion, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Emulsion, Elastomerics, Intumescent, Texture Mud, Block Filler, Polyurethane, Fibered Asphalt Emulsion, Epoxies, Enamel, Coal Tar, Mastics, Silicone, Paint, Waterproofing, Contact Cement, Acrylics, Primer |
| Compatible Replacement Pump | 17U996 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 1/2 |
| Fluid Outlet Thread Type | NPT |
| Maximum Flow Rate (GPM) | 1.5 |
| Maximum Sound Pressure Level (dB(A)) | 96 |
| Gun Included | No |
