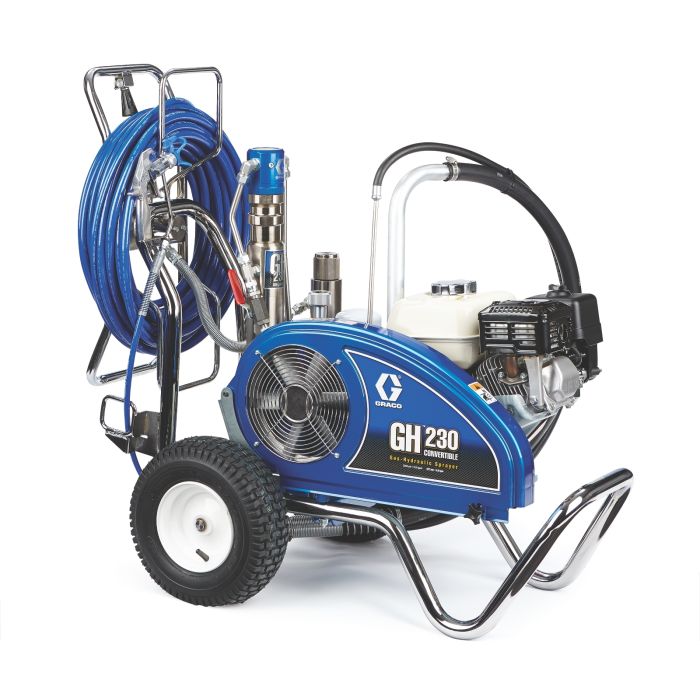

SPRAYER, GH230, PRO
The GH 230 Convertible is the most versatile sprayer for the professional contractor looking for workhorse hydraulic performance for large commercial and residential construction jobs. Superior versatility with the ability to change out the pump lower and convert to electric power without tools.
Loading Price
Part Number
24W932
Endurance MaxLife Piston Pump
Includes everything you need to get spraying:
- Lasts 6X longer between repacks with innovative MaxLife technology
- Oversized passages minimize pressure drops for high velocity flow
- Rock-solid performance time after time keeps you up and running
- Faster, more responsive changeover
- O-ring sealed fittings and form-fitted hydraulic lines prevent leaks
- Fewer moving parts mean less maintenance and longer life
- Innovative design allows the pump to run cooler and more efficiently
- Hydraulic reservoir is tapered on the bottom
- Provides easier and more thorough fluid changes
- Cooling fins on reservoir deflect heat away from sprayer
- Easy hose management
- Deploy and rewind up to 300 feet (90 meters) of hose in seconds
- No twisting, kinking, and coiling
- Use only the hose you need — the rest stays on the reel
- Pump swaps in 1-minute or less – no tools, pins or parts to lose
- Eliminate costly downtime
- Reliable, powerful & easy-to-start
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Contractor Preferred
- Durable filtration
- Stands up to harsh impacts to maintain even flow through filter
- Indoor and outdoor use
- Quickly swap the gas engine for an electric motor in seconds – without tools
- Electric motor kit sold separately
- Easy Out Pump Filter
- Heavy-Duty Prime Valve
- Rugged, Durable Cart Design
Includes everything you need to get spraying:
- Silver Plus Airless Spray Gun
- RAC X SwitchTips and Guard
- 100 feet (30 meters) of BlueMax II Airless Hose
| Long Description | GH 230 Convertible ProContractor Series Gas Hydraulic Airless Sprayer |
|---|---|
| Application Text | Graco GH ProContractor Series sprayers are designed to deliver the speed and performance so you get to the next jobsite faster and increase your profits. This sprayer is capable of handling elastomerics, block fillers, gypsum, and dry fall. |
| Length | 52 |
| Height | 48 |
| Width | 29 |
| Number of Guns | 5 |
| Outlet Paint Filter | Easy Out |
| Overall Height (in) | 38.5 |
| Overall Length (in) | 44.8 |
| Overall Width (in) | 25.3 |
| Power Rating (cc) | 200 |
| Maximum Tip Size Gun 1 (in) | 0.053 |
| Maximum Tip Size Gun 2 (in) | 0.038 |
| Maximum Tip Size Gun 3 (in) | 0.032 |
| Maximum Tip Size Gun 4 (in) | 0.028 |
| Maximum Tip Size Gun 5 (in) | 0.024 |
| Maximum Working Pressure (psi) | 3300 |
| Power Rating (HP) | 6.5 |
| Power Rating (kW) | 4.85 |
| Type | Airless Sprayer |
| Weight (lb) | 193 |
| Wetted Material | Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Stainless Steel, Aluminum, UHMWPE, Leather, Tungsten Carbide, Acetal, Chrome Plating, Ceramics, PTFE, Nylon |
| Recommended Annual Usage | Up to 1,000 gallons per week |
| Power Rating (W) | 4847.1 |
| Power Source | Gas Hydraulic |
| Pump Mount Type | ProConnect |
| Pump Rod Type | MaxLife |
| Pump Sleeve Material | MaxLife |
| Pump Type | Endurance |
| Includes | Silver Plus Gun;RAC X LTX 517 Spray Tip;RAC X WideRAC 1231 Spray Tip;RAC X Guard;3/8 in x 50 ft (15 m) BlueMax II Airless Hose;1/4 in x 50 ft (15 m) BlueMax II Airless Hose;TSL 4 oz (118 ml) |
| Convertible | Yes |
| Engine Brand | Honda |
| Features | Heavy-Duty Prime Valve, High-Capacity Cooling System, Honda Engine, Crushproof Inlet Strainer, Easy Out Filter, Durable Cart Design, QuikReel, Endurance MaxLife Pump, ProConnect, Convertible |
| Fluid Inlet Size (in) | 1-5/16 |
| Compatible Electric Motor Kits | 248949;248950 (CSA) |
| Compatible Material | Elastomer, Gypsum, Drywall Mud, Paint, Acrylics, Primer, Dry Fall |
| Compatible Replacement Pump | 24W998 |
| Fluid Inlet Thread Type | UN-2A |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Thread Type | FNPT |
| Maximum Flow Rate (GPM) | 2.35 |
| Maximum Hose Length (ft) | 300 |
| Maximum Sound Pressure Level (dB(A)) | 96 |
| Hose Reel Type | QuikReel |
| Frame Configuration | Cart |
| Gun Included | No |
| Maximum Tip Size (in) | 0.053 |
