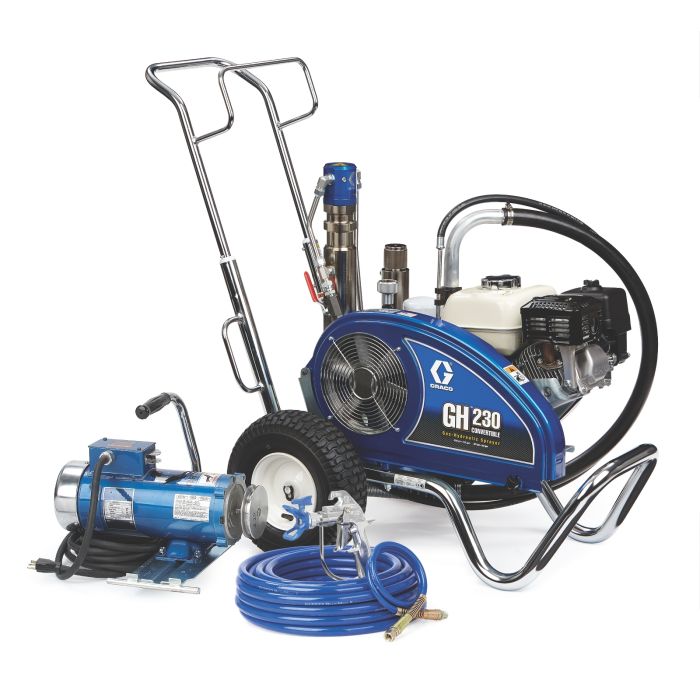

SPRAYER, GH230, W/NON-CSA, STD
The GH 230 Convertible is the most versatile sprayer for the professional contractor looking for workhorse hydraulic performance for large commercial and residential construction jobs. Superior versatility with the ability to change out the pump lower and convert to electric power without tools.
Checking stock status...
Part Number
24W930
Loading price...
$0.00
Description / SPRAYER,GH230, W/NON-CSA, STD
Endurance Chromex Piston Pump
Includes everything you need to get spraying:
- Lasts 2X longer than the next leading brand
- QuikChange pump design allows you to swap the pump easily on the job
- Faster cleaning with the QuikAccess intake foot valve
- Rock-solid performance time after time keeps you up and running
- Faster, more responsive changeover
- O-ring sealed fittings and form-fitted hydraulic lines prevent leaks
- Fewer moving parts mean less maintenance and longer life
- Innovative design allows the pump to run cooler and more efficiently
- Hydraulic reservoir is tapered on the bottom
- Provides easier and more thorough fluid changes
- Cooling fins on reservoir deflect heat away from sprayer
- Reliable, powerful & easy-to-start
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Contractor Preferred
- Easy maintenance & less clogging
- Exclusive inside-out filter design won't collapse to ensure a quality finish
- Vertical design for less mess
- Maintenance-free design withstands high-pressure dumping
- Thick chrome over welded steel withstands rugged environments
- Full pneumatic wheels absorb impacts and vibrations
- Retractable handle doubles as coiled hose storage
- Tilts on its nose for service in the field
- Indoor and outdoor use
- Quickly swap the gas engine for an electric motor in seconds – without tools
Includes everything you need to get spraying:
- Silver Plus Airless Spray Gun
- RAC X SwitchTips and Guard
- 50 feet of BlueMax II Airless Hose
More Information
| Description | GH 230 Convertible Standard Series Gas Hydraulic Airless Sprayer with Electric Motor Kit |
|---|---|
| Application Text | Graco GH Standard Series sprayers deliver durability and performance for spraying heavier materials in demanding applications. This sprayer is capable of handling elastomerics, block fillers, gypsum, and dry fall. |
| Number of Guns | 5 |
| Outlet Paint Filter | Easy Out |
| Overall Height (in) | 41.0 |
| Overall Length (in) | 48 |
| Overall Width (in) | 24 |
| Power Rating (cc) | 200 |
| Maximum Tip Size Gun 1 (in) | 0.053 |
| Maximum Tip Size Gun 2 (in) | 0.038 |
| Maximum Tip Size Gun 3 (in) | 0.032 |
| Maximum Tip Size Gun 4 (in) | 0.028 |
| Maximum Tip Size Gun 5 (in) | 0.024 |
| Maximum Working Pressure (psi) | 3300 |
| Power Rating (HP) | 6.5 |
| Power Rating (kW) | 4.85 |
| Type | Airless Sprayer |
| Weight (lb) | 168 |
| Wetted Material | Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Stainless Steel, Aluminum, UHMWPE, Leather, Tungsten Carbide, Acetal, Chrome Plating, Ceramics, PTFE, Nylon |
| Recommended Annual Usage | Up to 1,000 gallons per week |
| Power Rating (W) | 4847.1 |
| Power Source | Electric, Gas Hydraulic |
| Pump Mount Type | QuikChange |
| Pump Rod Type | Chromex |
| Pump Sleeve Material | Stainless Steel |
| Pump Type | Endurance |
| Includes | Silver Plus Gun;RAC X LTX 517 Spray Tip;RAC X WideRAC 1231 Spray Tip;RAC X Guard;3/8 in x 50 ft BlueMax II Airless Hose;1/4 in x 3 ft BlueMax II Airless Whip Hose;Electric Motor Kit;TSL 4 oz |
| Convertible | Yes |
| Engine Brand | Honda |
| Features | Heavy-Duty Prime Valve, High-Capacity Cooling System, Honda Engine, Easy Out Filter, Durable Cart Design, Endurance Chromex Pump, Convertible |
| Fluid Inlet Size (in) | 1-5/16 |
| Compatible Electric Motor Kits | 248949;248950 (CSA) |
| Compatible Material | Elastomer, Gypsum, Drywall Mud, Paint, Acrylics, Primer, Dry Fall |
| Compatible Replacement Pump | 24W997 |
| Fluid Inlet Thread Type | UN-2A |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Thread Type | FNPT |
| Maximum Flow Rate (GPM) | 2.35 |
| Maximum Hose Length (ft) | 300 |
| Maximum Sound Pressure Level (dB(A)) | 96 |
| Frame Configuration | Cart |
| Gun Included | No |
| Maximum Tip Size (in) | 0.053 |
| Requires Hazardous Shipping | No |
