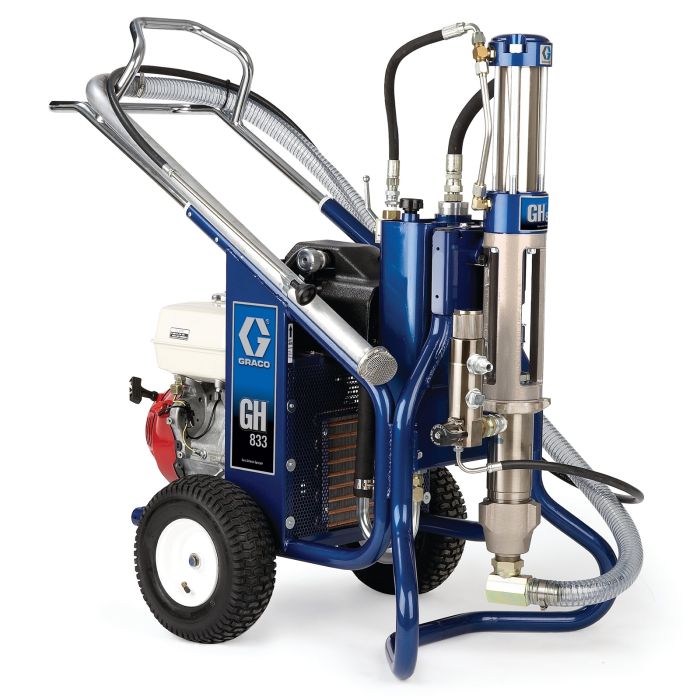

SPRAYER, GH833
The GH 833 is the preferred choice for high production professional contractors who spray the wide range of materials. This jobsite-proven workhorse is the answer when you demand ruggedness, performance and value.
Checking stock status...
Part Number
249318
Loading price...
$0.00
Description / SPRAYER, GH833
Honda® Engine
- 390 cc (13 HP) engine with integrated fuel tank to deliver maximum performance
- Contractor preferred engine with Oil Alert
- Faster, more responsive changeover
- O-ring sealed to eliminate leaks
- High-precision pressure control
- No hydraulic reset button needed
- Durable hydraulic lines for long life
- Large 4 gallon hydraulic reservoir
- Return line hydraulic filter extends life
- No special hydraulic fluid needed
- Proven cooler and blower system
- Easy to use drain plug
- Easy-roll tubed pneumatic tires
- Enamel painted steel tubing – corrosion protection
- Multi-function design converts to skid mount in seconds
- Proven design and performance
- Only 16 cycles per gallon (4.2 cycles per liter)
- Exclusive MaxLife rod and sleeve delivers unmatched durability and life
- Exclusive QuikChange Pump System and QuikAccess Intake Valve eliminates downtime
- Inside/out design eliminates clogged filters
- Eliminates tip clogs
More Information
| Description | GH 833 Gas Hydraulic Sprayer, Bare |
|---|---|
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Power Rating (cc) | 390 |
| Maximum Tip Size Gun 1 (in) | 0.065 |
| Maximum Tip Size Gun 2 (in) | 0.046 |
| Maximum Tip Size Gun 3 (in) | 0.037 |
| Maximum Tip Size Gun 4 (in) | 0.032 |
| Maximum Tip Size Gun 5 (in) | 0.029 |
| Maximum Tip Size Gun 6 (in) | 0.026 |
| Maximum Working Pressure (psi) | 4000 |
| Motor Type | Hydraulic Motor |
| Power Rating (HP) | 13 |
| Power Rating (kW) | 9.7 |
| Standards Met | CE Certified |
| Type | Airless Sprayer |
| Weight (lb) | 360 |
| Power Rating (W) | 9694.1 |
| Power Source | Gas Hydraulic |
| Pressure Control Type | Pressure Control Knob |
| Pump Mount Type | QuikChange |
| Pump Rod Type | MaxLife |
| Pump Type | Endurance |
| Includes | 1-1/2 in ID PVC 55 gal Siphon Kit;1/4 in x 50 ft BlueMax II Airless Hose;3/8 in x 50 ft BlueMax II Airless Hose;RAC 5 517 Tip;RAC 655 Tip;Silver Plus Gun |
| Engine Brand | Honda |
| Fluid Inlet Size (in) | 1-1/2 to 11-1/2 |
| Compatible Material | Polyester, Fibered Aluminum Emulsion, Non-Fibered Aluminum Emulsion, Non-Fibered Asphalt Emulsion, Elastomerics, Texture Mud, Block Filler, Polyurethane, Fibered Asphalt Emulsion, Epoxies, Enamel, Coal Tar, Mastics, Paint, Waterproofing, Contact Cement, Acrylics, Primer |
| Compatible Replacement Pump | 287834 |
| Fluid Inlet Thread Type | MNPT |
| Fluid Outlet Size (in) | 1 to 11-1/2 |
| Fluid Outlet Thread Type | FNPT |
| Material Application | Paints;Primers |
| Maximum Flow Rate (GPM) | 4.0 |
| Maximum Hose Length (ft) | 50 |
| Maximum Sound Pressure Level (dB(A)) | 91 |
| Frame Configuration | Cart |
| Gun Included | No |
| Maximum Tip Size (in) | 0.065 |
| Requires Hazardous Shipping | No |
