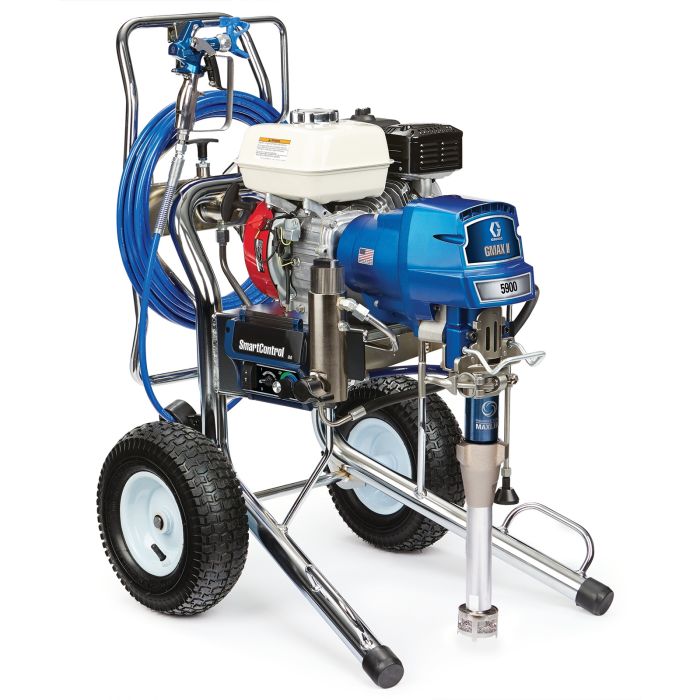

SPRAYER, GMAX, 5900, PROCONTRACTOR
With a 200cc Honda engine and the ability to spray up to 1.6 gallons per minute (6.1 liters per minute), the GMAX II 5900 is the industry standard for the professional contractor who sprays a wide variety of coatings on residential, commercial and industrial jobs.
Checking stock status...
Part Number
17E832
Loading price...
$0.00
Description / SPRAYER, GMAX, 5900, PROCONTRACTOR
Endurance Vortex MaxLife Piston Pump
- Superior pump life
- Breakthrough vortex rotating rod technology
- Repack the pump in minutes with the new QuikPak Cartridge System
- Lasts 6X longer between repacks with innovative MaxLife technology
- Oversized passages for high velocity flow to rotate piston for even wear
- Repack pump in minutes with new QuikPak cartridge repair system
- Pump swaps in 1-minute or less – no tools, pins or parts to lose
- Eliminate costly downtime
- Easy hose management
- Deploy and rewind up to 300 feet (90 meters) of hose in seconds
- No twisting, kinking, and coiling
- Use only the hose you need — the rest stays on the reel
- Durable filtration
- Stands up to harsh impacts to maintain even flow through filter
- Consistent spray fan & pressure control
- Handles the widest range of coatings with the most consistent fan pattern
- Lowest dead band at any pressure
- Automatically prevents pump damage if material supply is too low
- The longest lasting drive
- Improved jobsite conditions with extremely quiet operation
- Lifetime Warranty
- Reliable, powerful & easy-to-start
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Contractor Preferred
- All-day comfort & control
- Lightest weight gun in its class
- Up to 50% lighter trigger pull force
- E-Z Fit adjustable trigger length
- Complete gun rebuild in seconds with ProConnect cartridge
- More info: graco.com/ContractorPC
- Easy Out Pump Filter
- Heavy-Duty Prime Valve
- LED Display
- Rugged, Durable Cart Design
More Information
| Description | GMAX II 5900 ProContractor Series Gas Airless Sprayer |
|---|---|
| Application Text | Work Smarter, Finish More Jobs. Graco GMAX ProContractor Series gas-powered airless paint sprayers are designed to deliver speed & performance so you can get to the next jobsite faster and increase your profits. |
| Number of Guns | 3 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Height (in) | 38.0 |
| Overall Length (in) | 32.7 |
| Overall Width (in) | 24.4 |
| Power Rating (cc) | 200 |
| Maximum Tip Size Gun 1 (in) | 0.043 |
| Maximum Tip Size Gun 2 (in) | 0.056 |
| Maximum Tip Size Gun 3 (in) | 0.023 |
| Maximum Working Pressure (psi) | 3300 |
| Motor Type | Honda Gasoline Engine |
| Power Rating (HP) | 6.5 |
| Power Rating (kW) | 4.85 |
| Spray Gun Type | Contractor PC Pro Gun |
| Spray Type | Airless |
| Type | Airless Sprayer |
| Weight (lb) | 160 |
| Wetted Material | Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Stainless Steel, Polyurethane, Aluminum, UHMWPE, Leather, Tungsten Carbide, Acetal, Chrome Plating, PTFE, Fluoroelastomer, Nylon |
| Recommended Annual Usage | Up to 1,000 gallons per week |
| Power Rating (W) | 4847.1 |
| Power Source | Gas |
| Pressure Control Type | SmartControl 3.0 |
| Pump Mount Type | ProConnect 2 |
| Pump Rod Type | MaxLife |
| Pump Sleeve Material | MaxLife |
| Pump Type | Endurance Vortex |
| Includes | Contractor PC Gun;RAC X LTX 517 Spray Tip;RAC X Guard;3/8 in x 50 ft (15 m) BlueMax II Airless Hose;1/4 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose;TSL 4 oz (118 ml) |
| Convertible | Non-Convertible |
| Engine Brand | Honda |
| Features | Heavy-Duty Prime Valve, WatchDog, Endurance Vortex MaxLife Pump, Honda Engine, Crushproof Inlet Strainer, Easy Out Filter, QuikReel, Contractor PC Gun, Advantage Drive, ProConnect 2, SmartControl 3.0, LED Display |
| Filter Mesh Size | 60 |
| Fluid Hose Inside Diameter (in) | 1/4 |
| Fluid Inlet Size (in) | 1-5/16 |
| Compatible Material | Stains, Lacquer, Primers, Latex, Anti-Corrosive Paints, Interior Emulsions, Glass, Fillers, Exterior Emulsions, Acrylics, Oil |
| Compatible Replacement Pump | 17H824 |
| Fluid Inlet Thread Type | UN-2A |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Maximum Flow Rate (GPM) | 1.6 |
| Maximum Hose Length (ft) | 150 |
| Maximum Sound Pressure Level (dB(A)) | 96 |
| Inlet Paint Strainer | 8 Mesh Stainless Steel Screen |
| Hose Reel Type | QuikReel |
| Frame Configuration | Hi-Boy |
| Gun Included | No |
| Hose Inlet Diameter (in) | 1/4 |
| Maximum Tip Size (in) | 0.043 |
| Requires Hazardous Shipping | No |
