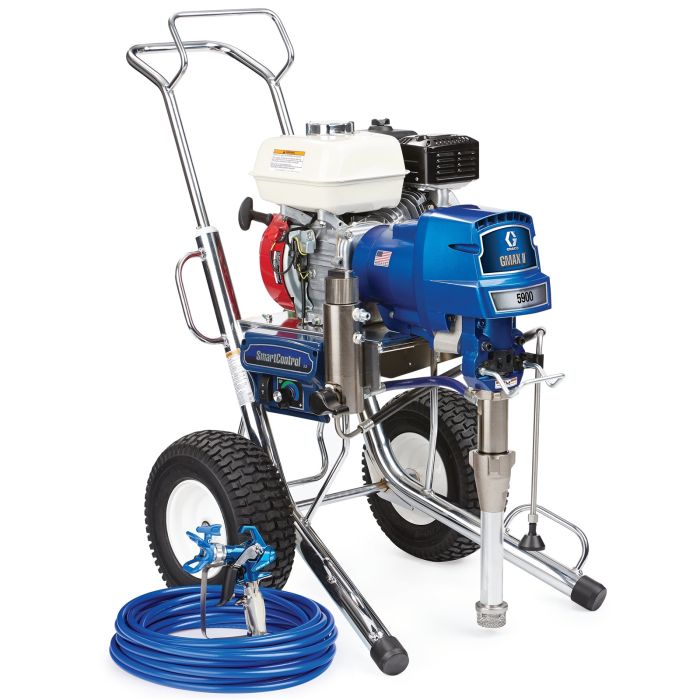

SPRAYER, GMAX, 5900, STANDARD
With a 200cc Honda engine and the ability to spray up to 1.6 gallons per minute (6.1 liters per minute), the GMAX II 5900 is the industry standard for the professional contractor who sprays a wide variety of coatings on residential, commercial and industrial jobs.
Checking stock status...
Part Number
17E831
Loading price...
$0.00
Description / SPRAYER, GMAX, 5900, STANDARD
Endurance Chromex Piston Pump
- The most reliable pump
- Lasts 2X longer than the next leading brand
- Repack the pump in minutes with the new QuikPak Cartridge System
- QuikChange pump design allows you to swap the pump easily on the job
- Faster cleaning with the QuikAccess intake foot valve
- Consistent spray fan & pressure control
- Handles the widest range of coatings with the most consistent fan pattern
- Lowest dead band at any pressure
- The longest lasting drive
- Hardened steel gears provide extremely quiet operation
- Lifetime Warranty
- Easy maintenance & less clogging
- Exclusive inside-out filtering won't collapse to ensure a quality finish
- Vertical design for less mess
- Maintenance-free design withstands high-pressure dumping
- Rugged and easy-to-maneuver
- Thick chrome over steel and pneumatic wheels for tough jobsite conditions
- Retractable handle doubles as coiled hose storage
- Reliable, powerful & easy-to-start
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Contractor Preferred
- All-day comfort & control
- Lightest weight gun in its class
- Up to 50% lighter trigger pull force
- E-Z Fit adjustable trigger length
- Complete gun rebuild in seconds with ProConnect cartridge
- More info: graco.com/ContractorPC
- Includes RAC X SwitchTip and 50 ft of BlueMax II hose
More Information
| Description | GMAX II 5900 Standard Series Gas Airless Sprayer, Hi-Boy |
|---|---|
| Application Text | Everyday Reliability. Graco GMAX Standard Series gas-powered airless paint sprayers deliver unmatched durability and performance, with the capability to handle the widest range of tip sizes, longer hose lengths and heavier coatings with ease. |
| Number of Guns | 3 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Overall Height (in) | 40.5 |
| Overall Length (in) | 33.0 |
| Overall Width (in) | 24.4 |
| Power Rating (cc) | 200 |
| Maximum Tip Size Gun 1 (in) | 0.043 |
| Maximum Tip Size Gun 2 (in) | 0.029 |
| Maximum Tip Size Gun 3 (in) | 0.023 |
| Maximum Working Pressure (psi) | 3300 |
| Power Rating (HP) | 6.5 |
| Power Rating (kW) | 4.85 |
| Type | Airless Sprayer |
| Weight (lb) | 138 |
| Wetted Material | Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Stainless Steel, Polyurethane, Aluminum, UHMWPE, Leather, Tungsten Carbide, Acetal, Chrome Plating, PTFE, Fluoroelastomer, Nylon |
| Recommended Annual Usage | Up to 1,000 gallons per week |
| Power Rating (W) | 4847.1 |
| Power Source | Gas |
| Pressure Control Type | SmartControl 3.0 |
| Pump Mount Type | QuikChange |
| Pump Rod Type | Chromex |
| Pump Sleeve Material | Stainless Steel |
| Pump Type | Endurance |
| Includes | Contractor PC Gun;RAC X LTX 517 Spray Tip;RAC X Guard;1/4 in x 50 ft BlueMax II Airless Hose;TSL 4 oz |
| Convertible | Non-Convertible |
| Engine Brand | Honda |
| Features | Heavy-Duty Prime Valve, Honda Engine, Easy Out Filter, Endurance Chromex Pump, Contractor PC Gun, Advantage Drive, SmartControl 3.0 |
| Fluid Inlet Size (in) | 1-5/16 |
| Fluid Inlet Thread Type | UN-2A |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Maximum Flow Rate (GPM) | 1.6 |
| Maximum Sound Pressure Level (dB(A)) | 96 |
| Inlet Paint Strainer | 8 Mesh Stainless Steel Screen |
| Frame Configuration | Hi-Boy |
| Gun Included | No |
| Hose Inlet Diameter (in) | 1/4 |
| Maximum Tip Size (in) | 0.043 |
| Requires Hazardous Shipping | No |
