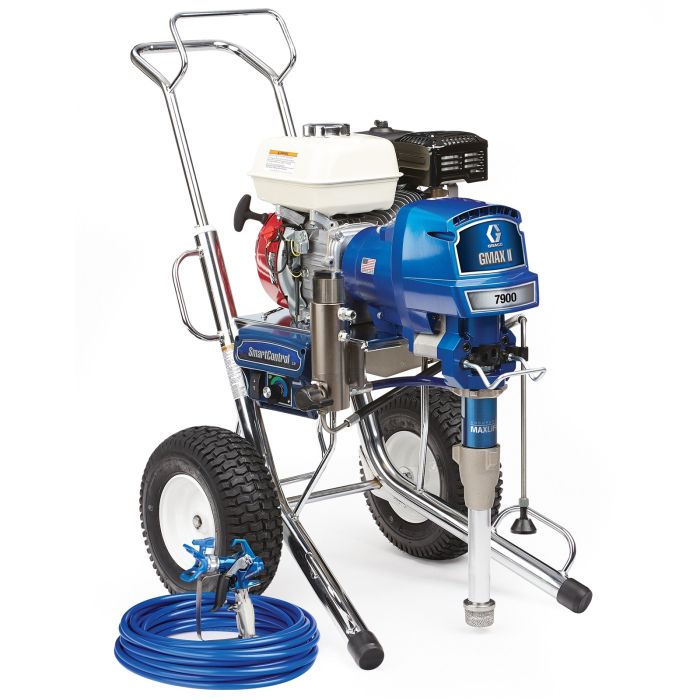

SPRAYER, GMAX, 7900, STANDARD

Name: SPRAYER, GMAX, 7900, STANDARD
Brand: GRACO
SKU: 17E836
Price: 7479 USD
Availability: InStock

Offering 35% more performance than the GMAX II 5900, the GMAX II 7900 is Graco's largest gas mechanical sprayer. These units can handle the widest range of tip sizes, multiple guns, longer hose lengths and heavier coatings with ease.

Loading Price

Part Number

17E836

Details

Endurance MaxLife Piston Pump

Superior pump life
Repack the pump in minutes with the new QuikPak Cartridge System
Lasts 6X longer between repacks with innovative MaxLife technology
Oversized passages for high velocity flow
Repack pump in minutes with new QuikPak cartridge repair system

SmartControl 3.0

Consistent spray fan & pressure control
Handles the widest range of coatings with the most consistent fan pattern
Lowest dead band at any pressure

Precision Advantage Drive

The longest lasting drive
Hardened steel gears provide extremely quiet operation
Lifetime Warranty

Easy Out Pump Filter

Easy maintenance & less clogging
Exclusive inside-out filtering won't collapse to ensure a quality finish
Vertical design for less mess

Heavy-Duty Prime Valve

Maintenance-free design withstands high-pressure dumping

Durable Cart Design

Rugged and easy-to-maneuver
Thick chrome over steel and pneumatic wheels for tough jobsite conditions
Retractable handle doubles as coiled hose storage

Honda® Engine

Reliable, powerful & easy-to-start
Oil Alert shuts down engine to prevent damage if oil level drops too low
Contractor preferred

Contractor PC Spray Gun

All-day comfort & control
Lightest weight gun in its class
Up to 50% lighter trigger pull force
E-Z Fit adjustable trigger length
Complete gun rebuild in seconds with ProConnect cartridge
More info: graco.com/ContractorPC

Jobsite Ready

Includes RAC X SwitchTip and 50 ft of BlueMax II hose

More Information

More Information
Long Description	GMAX II 7900 Standard Series Gas Airless Sprayer, Hi-Boy
Application Text	Everyday Reliability. Graco GMAX Standard Series gas-powered airless paint sprayers deliver unmatched durability and performance, with the capability to handle the widest range of tip sizes, longer hose lengths and heavier coatings with ease.
Length	37
Height	41
Width	27
Number of Guns	4
Outlet Paint Filter	60 Mesh Stainless Steel Screen
Overall Height (in)	40.5
Overall Length (in)	38.1
Overall Width (in)	24.4
Power Rating (cc)	200
Maximum Tip Size Gun 1 (in)	0.048
Maximum Tip Size Gun 2 (in)	0.035
Maximum Tip Size Gun 3 (in)	0.027
Maximum Tip Size Gun 4 (in)	0.023
Maximum Working Pressure (psi)	3300
Power Rating (HP)	6.5
Power Rating (kW)	4.85
Type	Airless Sprayer
Weight (lb)	148
Wetted Material	Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Stainless Steel, Polyurethane, Aluminum, UHMWPE, Leather, Tungsten Carbide, Acetal, Chrome Plating, PTFE, Fluoroelastomer, Nylon
Recommended Annual Usage	Up to 1,000 gallons per week
Power Rating (W)	4847.1
Power Source	Gas
Pressure Control Type	SmartControl 3.0
Pump Mount Type	QuikChange
Pump Rod Type	MaxLife
Pump Sleeve Material	MaxLife
Pump Type	Endurance
Includes	Contractor PC Gun;RAC X LTX 517 Spray Tip;RAC X Guard;3/8 in x 50 ft (15 m) BlueMax II Airless Hose;1/4 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose;TSL 4 oz (118 ml)
Convertible	Non-Convertible
Engine Brand	Honda
Features	Heavy-Duty Prime Valve, Honda Engine, Easy Out Filter, Endurance MaxLife Pump, Contractor PC Gun, Advantage Drive, SmartControl 3.0
Fluid Inlet Size (in)	1-5/16
Fluid Inlet Thread Type	UN-2A
Fluid Outlet Size (in)	3/8
Fluid Outlet Thread Type	NPSM
Maximum Flow Rate (GPM)	2.2
Maximum Sound Pressure Level (dB(A))	96
Inlet Paint Strainer	8 Mesh Stainless Steel Screen
Frame Configuration	Hi-Boy
Gun Included	No
Hose Inlet Diameter (in)	1/4
Maximum Tip Size (in)	0.048
