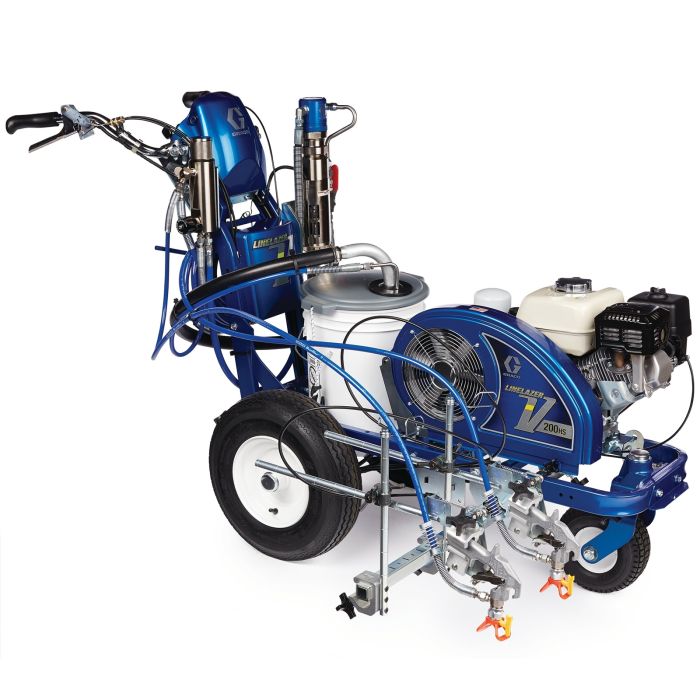

SPRAYER, LL V, 200HS, STD, 2 GUN
The LineLazer V 200HS Standard Series is a true workhorse designed for high performance striping on demanding jobs like large parking lots, airports, and city jobs that require precise lines.
Loading Price
Part Number
17H461
LiveLook Display with SmartControl
- Striping Information At-A-Glance
- Track, measure and control every aspect of your job
- Accessible proof-of-job data from the J-Log System with USB Download
- Consistent spraying pressure for perfect lines
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
- Perfect Striper Tracking
- Simple front wheel alignment, no special tools needed
- Easy Handlebar Adjustment
- Reliable, Long-Life Pump
- Industry-best pump performance — field-proven design
- Handle the most demanding materials with long-life rod treatment
- 4X harder than ordinary chrome
- Uninterrupted Performance
- No-Stall design
- Reduced Downtime
- Innovative design allows the pump to run cooler and more efficiently
- Easier and more thorough fluid changes
- Reservoir cooling fins deflect more heat
- No special hydraulic fluid needed
- Simple Gun Control
- Independently control of two guns with one lever — solid/skip
- Easy Pump Maintenance & Less Clogging
- Inside-out design means less mess with fewer tip clogs
Length | 0 |
---|---|
Width | 0 |
Application Text | The LineLazer V Standard Series is ideal for the higher production re-striping contractor completing and considering larger re-striping jobs with basic pattern applications requiring a single-color, single or dual gun striping solution. |
Long Description | LineLazer V 200HS Standard Series Gas Hydraulic Airless Line Striper, 2 Manual Guns |
Number of Guns | 2 |
Number of Pumps | 1 |
Overall Height (in) | 44.5 |
Overall Length (in) | 68.75 |
Overall Width (in) | 34.25 |
Power Rating (HP) | 6.5 |
Power Rating (kW) | 4.85 |
Pump Type | Endurance |
Recommended Annual Usage | Up to 1,000 gallons per week |
Standards Met | CE |
Type | Walk-Behind Line Striper |
Weight (lb) | 306 |
Includes | Flex Plus Gun (2);LineLazer RAC 5 319 Spray Tip (2);LineLazer RAC 5 421 Spray Tip (2);RAC 5 Tip Guard (2);3/8 in x 22 ft BlueMax II Airless Hose;3/8 in x 3 ft BlueMax II Airless Whip Hose;TSL, 4 oz |
Number of Colors | One Color |
Maximum Working Pressure (psi) | 3300 |
Compatible Material | Road-Marking Paint |
Compatible Surfaces | Pavement, Turf |
Engine Brand | Honda |
Engine Model | GX200 |
Fuel Tank Capacity (gal) | 0.95 |
Gun Activation | Manual |
Maximum Flow Rate (GPM) | 2.15 |
Maximum Sound Pressure Level (dB(A)) | 86.5 |
Maximum Tip Size (in) | 0.033 |
