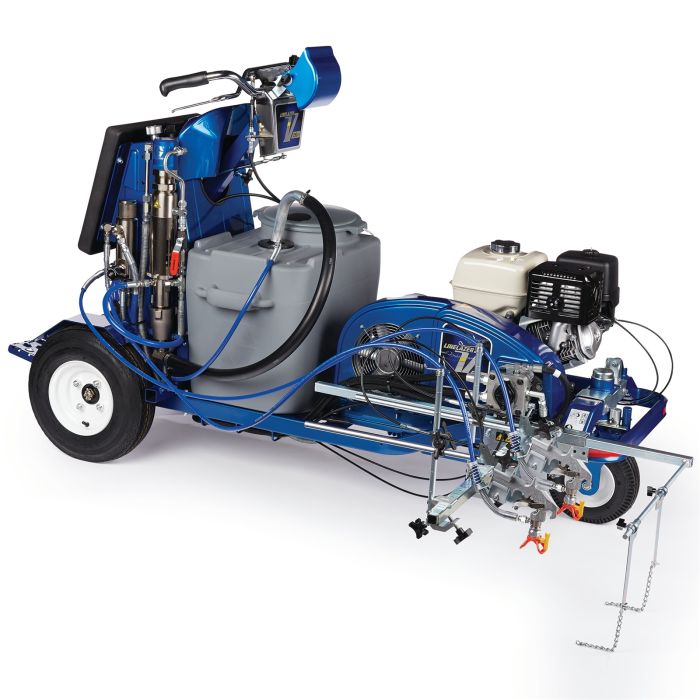

SPRAYER, LL V, 250SPS, 2 GUN

Name: SPRAYER, LL V, 250SPS, 2 GUN
Brand: GRACO
SKU: 17H467
Price: 26819 USD
Availability: InStock

With exclusive automatic paint guns and hydraulic power, the LineLazer V 250SPS HP Automatic Series is a self-propelled system that is ideal for large, heavy-duty line striping jobs including parking lots and road jobs.

Loading Price

Part Number

17H467

Details

Automatic Paint Gun System

Automatically Stripe Skip-Lines
Reduce operator fatigue — push button line production
Quality solenoid driven system

Remote Mount Control Box

Striping Information At-A-Glance
Simple to use and easy to see in all conditions

25-Gallon Paint Hopper

Less Refilling
Extended striping time with large capacity hopper

Honda® GX Engine

Reliable, Easy-to-Start Power
Contractor-preferred — excellent power and proven reliability
Oil Alert shuts down engine to prevent damage if oil level drops too low

Electric Start

Fast starting

EasyMark Gun Adjustment System

Easy Gun Adjustments
Perfect gun alignment every time with easy-to-use guide mark system
2-gun capability with QuikSelect gun selector

Front or Rear Gun Mount

Straighter long lines
Use up to six guns

Self-Centering Front Wheel

Simple operation
Foam-filled, three-wheel design for stability

Easy Handlebar Adjustment Additional Features

Endurance Chromex Pump
High-Efficiency Hydraulic Motor
High-Capacity Cooling System
Easy Out Pump Filter
Flex Plus Guns

More Information

More Information
Height	63
Length	77
Width	45
Application Text	The HP Automatic Series adds enhanced features that provide contractors automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.
Long Description	LineLazer V 250SPS HP Automatic Series Self-Propelled Gas Hydraulic Airless Line Striper, 2 Auto Guns
Number of Guns	2
Number of Hoppers	1
Number of Pumps	1
Overall Height (in)	50.5
Overall Length (in)	73.5
Overall Width (in)	33
Power Rating (HP)	13
Power Rating (kW)	9.69
Pump Type	Endurance
Type	Self-Propelled Line Striper
Weight (lb)	666
Includes	Flex Plus Gun (2);LineLazer RAC 5 321 Spray Tip (2);LineLazer RAC 5 425 Spray Tip (2);LineLazer RAC 5 627 Spray Tip (2);RAC 5 Tip Guard (2);3/8 in x 12 ft (3.7 m) BlueMax II Airless Hose;3/8 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose;TSL 4 oz (118 mL)
Number of Colors	One Color
Maximum Working Pressure (psi)	3300
Compatible Material	Road-Marking Paint
Compatible Surfaces	Pavement, Turf
Engine Brand	Honda
Engine Model	GX390
Fuel Tank Capacity (gal)	1.4
Gun Activation	Automatic
Hopper Volume Capacity (gal)	25
Hopper Volume Capacity (L)	95
Maximum Flow Rate (GPM)	2.5
Maximum Operating Speed (mph)	10
Maximum Sound Pressure Level (dB(A))	89.1
Maximum Speed (RPM)	3600
Maximum Tip Size (in)	0.039
