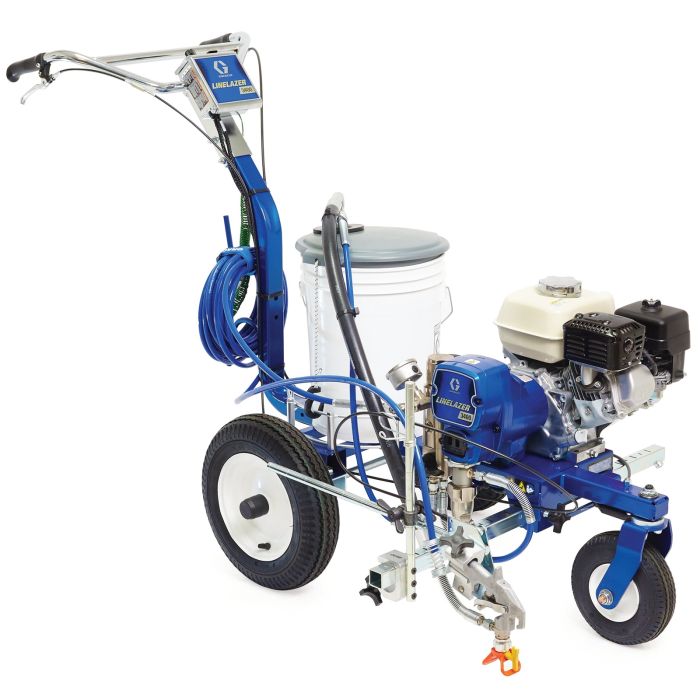

SPRAYER, LL V, 3400
The LineLazer 3400 is the professional choice for dependable, 1-gun striping for small parking lots, mini malls, seal coating contractors, schools and park and recreation departments.
Loading Price
Part Number
25M224
Updated Frame
- Improved Tracking & Line Quality
- Added stability with newly designed, 3-inch longer frame
- Accepts 15-gallon hopper and EZ Bead System
- Easier Stencil Jobs
- Easy on/off functionality
- Fine-tune the striper without stopping
- Operator controls are located on the handlebars
- Reduced Vibration
- Less operator fatigue with greater comfort and control
- Improved Line Quality
- Accurate, tight tolerance system
- Reliable, Long-Life Pump
- Industry-best pump performance — field-proven design
- Handle the most demanding materials with long-life rod treatment
- 4X harder than ordinary chrome
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Easy Pump Maintenance & Less Clogging
- Inside-out design means less mess with fewer tip clogs
- Easier Maneuverability
- Ability to stripe right up to the curb
- Makes easy work of hard-to-do curves
- Years of dependable operation with tapered locking pin design
Height | 51 |
---|---|
Length | 74 |
Width | 39 |
Long Description | LineLazer 3400 Gas Airless Line Striper, 1 Manual Gun |
Number of Guns | 1 |
Number of Pumps | 1 |
Overall Height (in) | 39.4 |
Overall Length (in) | 66.3 |
Overall Width (in) | 26.0 |
Power Rating (HP) | 4 |
Power Rating (kW) | 2.98 |
Power Rating (W) | 2980 |
Pump Type | Endurance |
Recommended Annual Usage | Up to 250 gallons per week |
Type | Walk-Behind Line Striper |
Weight (lb) | 160 |
Includes | Flex Plus Gun;LineLazer RAC 5 317 Spray Tip;LineLazer RAC 5 319 Spray Tip;RAC 5 Tip Guard;1/4 in x 50 ft (15 m) BlueMax II Airless Hose;1/4 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose;TSL, 4 oz (118 ml) |
Number of Colors | One Color |
Maximum Working Pressure (psi) | 3300 |
Compatible Material | Road-Marking Paint |
Compatible Surfaces | Pavement, Turf |
Engine Brand | Honda |
Engine Model | GX120 |
Fuel Tank Capacity (gal) | 0.66 |
Gun Activation | Manual |
Hopper Volume Capacity (gal) | 15 |
Hopper Volume Capacity (L) | 56.8 |
Maximum Flow Rate (GPM) | 0.75 |
Maximum Sound Pressure Level (dB(A)) | 91 |
Maximum Tip Size (in) | 0.027 |
