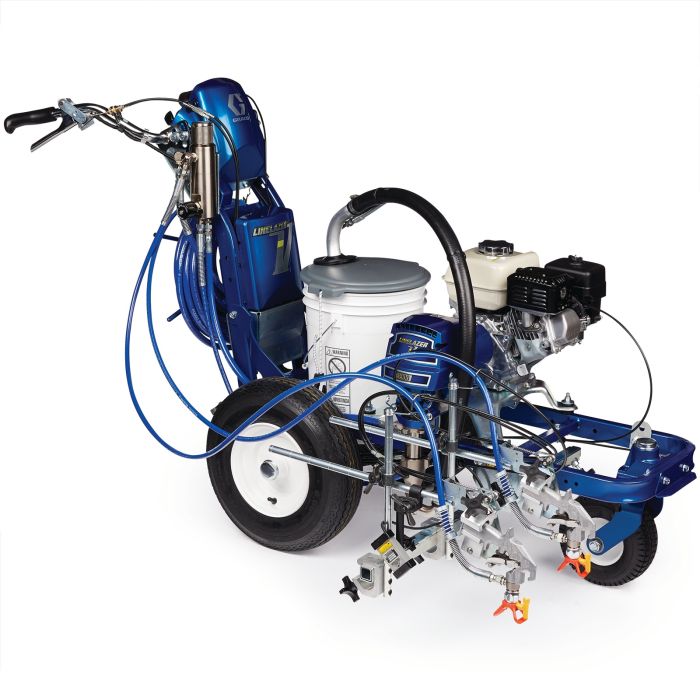

SPRAYER, LL V, 3900, AUTO, 2A, LSR
For those advanced striping jobs that require layout work or skip lines, the LineLazer V 3900 HP Automatic Series line striper includes additional features to help you work smarter, finish jobs faster and increase your profitability.
Loading Price
Part Number
17H453
Automatic Paint Gun System
- Automatically Stripe Skip-Lines
- Reduce operator fatigue — push button line production
- Quality solenoid driven system
- Simplify Parking Lot Layout
- SmartControl measures while you walk and puts down pre-marks
- No need for measuring tape, string lines or aerosol cans
- Cuts your layout time in half
- Striping Information At-A-Glance
- Track, measure and control every aspect of your job
- Accessible proof-of-job data from the J-Log System with USB Download
- Consistent spraying pressure for perfect lines
- Valuable Job Information
- Proof of job = More striping opportunities.
- USB download capability allows you to capture and save all job data
- Reliable, Easy-to-Start Power
- Contractor-preferred — excellent power and proven reliability
- Oil Alert shuts down engine to prevent damage if oil level drops too low
- Easy Gun Adjustments
- Perfect gun alignment every time with easy-to-use guide mark system
- 2-gun capability with QuikSelect gun selector
- Perfect Striper Tracking
- Simple front wheel alignment, no special tools needed
- Easy Handlebar Adjustment
- Reliable, Long-Life Pump
- Industry-best pump performance — field-proven design
- Handle the most demanding materials with long-life rod treatment
- 4X harder than ordinary chrome
- QuikSelect Gun Selector
- Easy Out Pump Filter
- LazerGuide 1700 Start/Stop Laser
Length | 0 |
---|---|
Width | 0 |
Application Text | The HP Automatic Series adds enhanced features that provide contractors automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements. |
Long Description | LineLazer V 3900 HP Automatic Series Gas Airless Line Striper, 2 Auto Guns |
Number of Guns | 2 |
Number of Pumps | 1 |
Overall Height (in) | 44.5 |
Overall Length (in) | 68.75 |
Overall Width (in) | 34.25 |
Power Rating (HP) | 4 |
Power Rating (kW) | 2.98 |
Power Rating (W) | 2980 |
Pump Type | Endurance |
Type | Walk-Behind Line Striper |
Weight (lb) | 240 |
Includes | LazerGuide 1700;Flex Plus Gun (2);LineLazer RAC 5 319 Spray Tip (2);LineLazer RAC 5 421 Spray Tip (2);RAC 5 Tip Guard (2);3/8 in x 50 ft BlueMax II Airless Hose;3/8 in x 3 ft BlueMax II Airless Whip Hose;TSL, 4 oz |
Number of Colors | One Color |
Maximum Working Pressure (psi) | 3300 |
Compatible Material | Road-Marking Paint |
Compatible Surfaces | Pavement, Turf |
Engine Brand | Honda |
Engine Model | GX120 |
Features | On-Board Power, J-Log Data Loggin System, Automatic Gun, Auto-Layout II |
Fuel Tank Capacity (gal) | 0.66 |
Gun Activation | Automatic |
Maximum Flow Rate (GPM) | 1.25 |
Maximum Sound Pressure Level (dB(A)) | 86.5 |
Maximum Tip Size (in) | 0.025 |
Bead System | Optional |
