The LineLazer V 250DC HP Reflective Series provides high-production dual color striping and reflective bead application capability and is ideally suited for airports, municipalities, DOTs or any application with highlight lines or dual-color stripes with reflective beads.
Part Number 17H473


Description / SPRAYER, LL250DC/2X PBS, 2 GUN

Pressurized EZ Bead System
  • Superior Bead Application Performance
  • Ensures proper bead flow and paint penetration
  • Dual bead tanks hold up to 120 lbs each
Dual High-Efficiency Hydraulic Motors
  • Uninterrupted Performance
  • No-Stall design
Dual Endurance Chromex Pumps
  • Precise Material Flow
  • Consistency with a wide range of striping materials
Automatic Paint Gun System
  • Automatically Stripe Skip-Lines
  • Reduce operator fatigue — push button line production
  • Quality solenoid driven system
Remote Mount Control Box
  • Striping Information At-A-Glance
  • Simple to use and easy to see in all conditions
Dual 15-Gallon Paint Hoppers
  • Less Refilling
  • Simultaneously spray two colors and refill less often
Honda® GX Engine
  • Reliable, Easy-to-Start Power
  • Contractor-preferred — excellent power and proven reliability
  • Oil Alert shuts down engine to prevent damage if oil level drops too low
Electric Start
  • Fast starting
EasyMark Gun Adjustment System
  • Easy Gun Adjustments
  • Perfect gun alignment every time with easy-to-use guide mark system
  • 2-gun capability with QuikSelect gun selector



Additional Features
  • Front or Rear Gun Mount
  • Self-Centering Front Wheel
  • Easy Handlebar Adjustment
  • High-Capacity Cooling System
  • Easy Out Pump Filter

More Information

Application Text The HP Reflective Series adds superior bead application capability to the HP Automatic Series feature set, which includes automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.

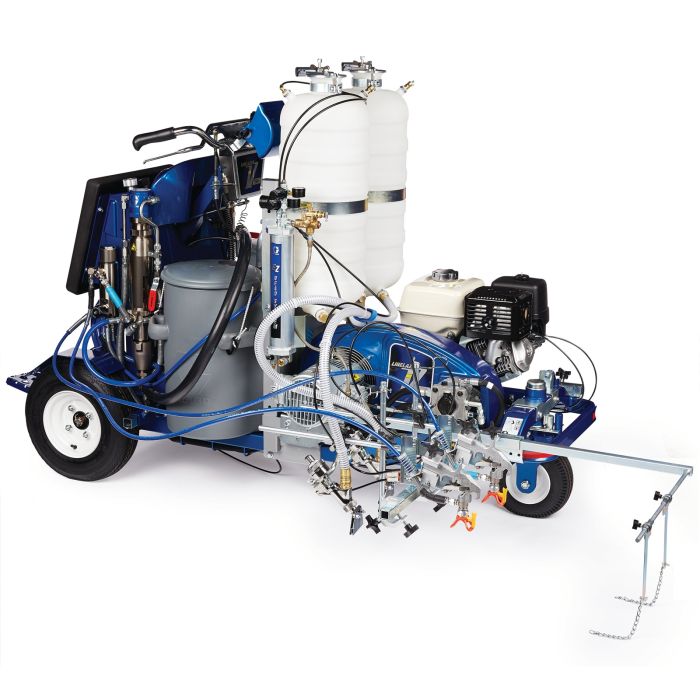

Description LineLazer V 250DC HP Reflective Series Self-Propelled Gas Hydraulic Airless Line Striper, 2 Auto Guns, 2 Tanks
Number of Guns 2
Number of Hoppers 2
Number of Pumps 2
Overall Height (in) 55.7
Overall Length (in) 73.5
Overall Width (in) 33
Power Rating (HP) 13
Power Rating (kW) 9.69
Pump Type Endurance
Standards Met CE
Type Self-Propelled Line Striper
Weight (lb) 864
Includes Pressurized Bead System (2 Tanks);Flex Plus Gun (2);LineLazer RAC 5 321 Spray Tip (2);LineLazer RAC 5 425 Spray Tip (2);LineLazer RAC 5 627 Spray Tip (2);RAC 5 Tip Guard (2);3/8 in x 12 ft (3.7 m) BlueMax II Airless Hose (2);3/8 in x 3 ft (0.9 m) BlueMax II Airless Whip Hose (2);TSL, 4 oz (118 ml)
Number of Colors Two Colors
Maximum Working Pressure (psi) 3300
Bead Tank Size (lb) 240
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Engine Brand Honda
Engine Model GX390
Fuel Tank Capacity (gal) 1.4
Gun Activation Automatic
Hopper Volume Capacity (gal) 30
Hopper Volume Capacity (L) 114
Maximum Flow Rate (GPM) 2.5
Maximum Operating Speed (mph) 10
Maximum Sound Pressure Level (dB(A)) 89.1
Maximum Speed (RPM) 3600
Maximum Tip Size (in) 0.039
Requires Hazardous Shipping No
